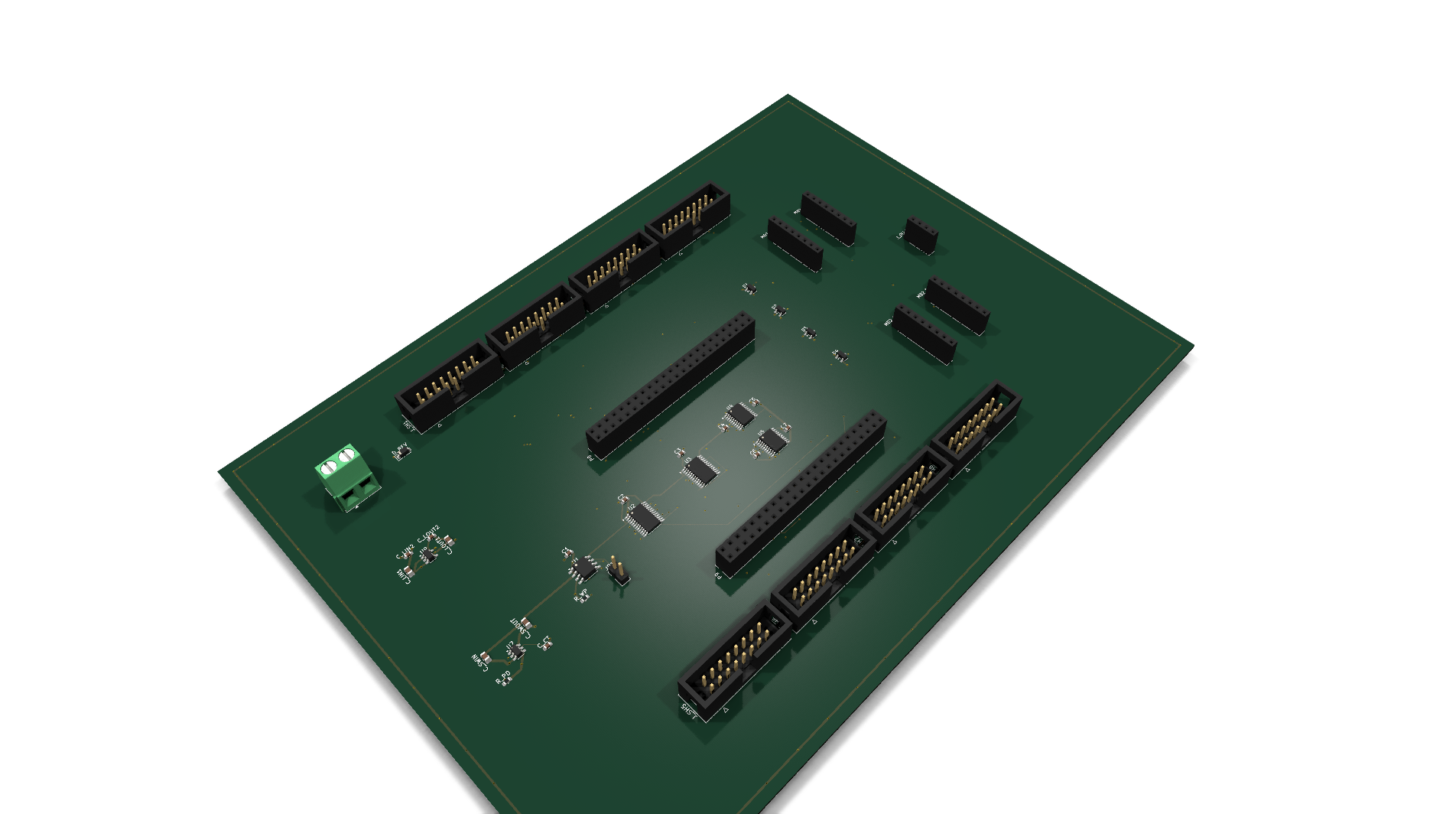

-Super-Mikrobus-Cape-Testbed
About the -Super-Mikrobus-Cape-Testbed PCB
-Super-Mikrobus-Cape-Testbed is an open source PCB design by 8aChristian, published on GitHub. It is a 4-layer board measuring 220 × 160 mm, with 38 components from 27 distinct parts.
Other key parts include the 24LC32A, TCA9548A_1, TCA9548A_2, TXS0108E_SPI and TXS0108E_CS1. By type, the board carries 7 ICs, 7 capacitors, 4 diodes, 2 connectors and 1 jumper.
It belongs with the displays & leds designs in this gallery.
From the project
The Super Mikrobus Cape & Testbed is an industrial-grade expansion and validation platform engineered for the BeagleBone embedded computer ecosystem (BeagleBone Black, BeagleBone AI-64, BeagleY-AI, and PocketBeagle 2).
The Super Mikrobus Cape & Testbed is an industrial-grade expansion and validation platform engineered for the BeagleBone embedded computer ecosystem (BeagleBone Black, BeagleBone AI-64, BeagleY-AI, and PocketBeagle 2).
The platform expands the host processor's capabilities into 2 onboard mikroBUS™ sockets and 8 remote Shuttle Box testing interfaces via rugged 2x8 IDC headers. It provides deterministic, collision-free I2C addressing across 16 channels, bi-directional 3.3V/5V digital level translation, soft-start inrush current management, analog overvoltage clamping, and Cape ID autodetection.
Main components on the -Super-Mikrobus-Cape-Testbed
-Super-Mikrobus-Cape-Testbed bill of materials (BOM)
38 components, 27 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 24LC32A | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | TCA9548A_1 | TSSOP-24_4.4x7.8mm_P0.65mm | U2 |
| 1 | TCA9548A_2 | TSSOP-24_4.4x7.8mm_P0.65mm | U3 |
| 1 | TXS0108E_SPI | TSSOP-20_4.4x6.5mm_P0.65mm | U4 |
| 1 | TXS0108E_CS1 | TSSOP-20_4.4x6.5mm_P0.65mm | U5 |
| 1 | TPS22918 | SOT-23-6 | U7 |
| 1 | AP2112K-3.3 | SOT-23-5 | U9 |
| 1 | BeagleBone_P8 | PinSocket_2x23_P2.54mm_Vertical | P8 |
| 1 | BeagleBone_P9 | PinSocket_2x23_P2.54mm_Vertical | P9 |
| 2 | 10uF | C_0805_2012Metric | C_LIN1, C_LOUT1 |
| 2 | 100nF | C_0603_1608Metric | C_LIN2, C_LOUT2 |
| 1 | WP_EN | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | Shuttle_1 | IDC-Header_2x08_P2.54mm_Vertical | J_SH1 |
| 1 | Shuttle_2 | IDC-Header_2x08_P2.54mm_Vertical | J_SH2 |
| 1 | Shuttle_3 | IDC-Header_2x08_P2.54mm_Vertical | J_SH3 |
| 1 | Shuttle_4 | IDC-Header_2x08_P2.54mm_Vertical | J_SH4 |
| 1 | Shuttle_5 | IDC-Header_2x08_P2.54mm_Vertical | J_SH5 |
| 1 | Shuttle_6 | IDC-Header_2x08_P2.54mm_Vertical | J_SH6 |
| 1 | Shuttle_7 | IDC-Header_2x08_P2.54mm_Vertical | J_SH7 |
| 1 | Shuttle_8 | IDC-Header_2x08_P2.54mm_Vertical | J_SH8 |
Show 7 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | mikroBUS1_L | PinSocket_1x08_P2.54mm_Vertical | MB1_L |
| 1 | mikroBUS1_R | PinSocket_1x08_P2.54mm_Vertical | MB1_R |
| 1 | mikroBUS2_L | PinSocket_1x08_P2.54mm_Vertical | MB2_L |
| 1 | mikroBUS2_R | PinSocket_1x08_P2.54mm_Vertical | MB2_R |
| 1 | 5V_EXT | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | TB1 |
| 4 | BAT54S | SOT-23 | D1, D2, D3, D4 |
| 7 | 100nF | C_0603_1608Metric | C1, C2, C3, C4, C5, C6, C7 |
-Super-Mikrobus-Cape-Testbed design files
The KiCad project lives in the 8aChristian/-Super-Mikrobus-Cape-Testbed repository on GitHub; these links point at the commit this page was built from.
-Super-Mikrobus-Cape-Testbed: common questions
How big is the -Super-Mikrobus-Cape-Testbed PCB?
The -Super-Mikrobus-Cape-Testbed measures 220 × 160 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the -Super-Mikrobus-Cape-Testbed?
38 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the -Super-Mikrobus-Cape-Testbed design files?
From the 8aChristian/-Super-Mikrobus-Cape-Testbed repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the -Super-Mikrobus-Cape-Testbed design in my own project?
The repository has no license, so all rights stay with 8aChristian. Use it as a reference, and ask the author before reusing the design.
