MutanMonkey Mixtape3000

8BitMixtape·MutanMonkey_Mixtape3000·KiCAD/MixtapeNEO-3000.kicad_pcb

MutanMonkey Mixtape3000 PCB layout, top view — open source AVR/Arduino board by 8BitMixtape

About the MutanMonkey Mixtape3000 PCB

MutanMonkey Mixtape3000 is an open source AVR/Arduino PCB design by 8BitMixtape, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99 × 64.8 mm, with 46 components from 21 distinct parts.

Its main chip is the ATTINY85-20SU, from the AVR/Arduino family. Other key parts include the PAM8002. By type, the board carries 16 resistors, 7 capacitors, 4 connectors, 2 ICs, 2 battery holders and 2 diodes.

It belongs with the audio designs in this gallery.

From the project

Special edition of the 8Bit Mixtape NEO for Workshop in Barcelona's Synth store Mutan Monkey

Now also available in the 8Bit Mixtape Shop

See more about svg2shenzhen here: https://github.com/badgeek/svg2shenzhen

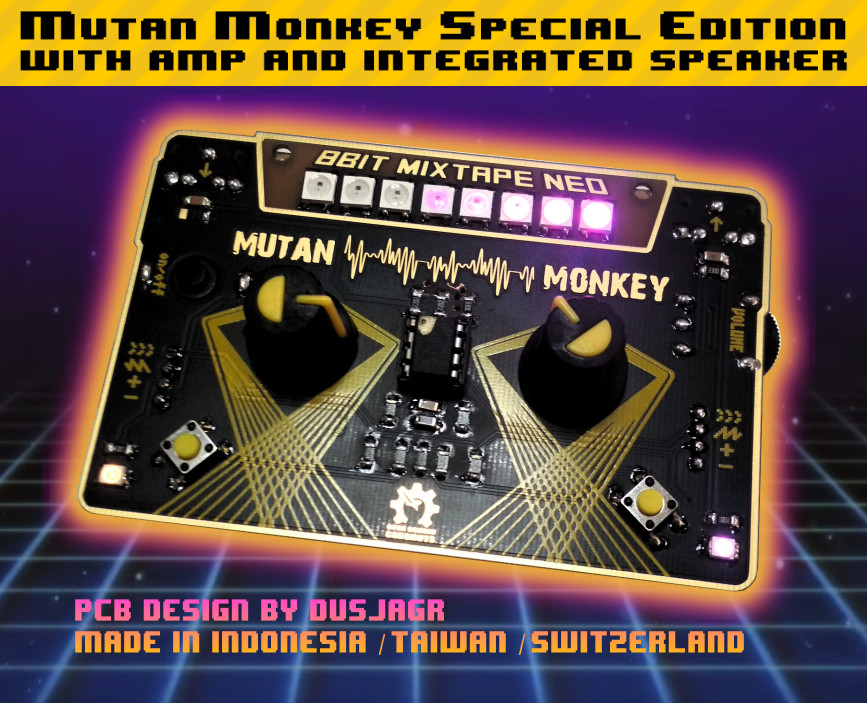

MutanMonkey Mixtape3000, from the project README
From the project README

Main components on the MutanMonkey Mixtape3000

ATTINY85-20SUPAM8002

MutanMonkey Mixtape3000 bill of materials (BOM)

46 components, 21 distinct parts.

QtyPartRefs
1
ATTINY85-20SU
U1
1
PAM8002
U2
2
CONN_01X04
J1, J2
1
Con_3-5V
J4
1
CONN_01X02_MALE
J6
2
Battery_Cell
BT1, BT2
8
SK6812
NEO1, NEO2, NEO3, NEO4, NEO5, NEO6, NEO7, NEO8
2
POT 10K lin
POT1-MAIN1, POT2-CV1
1
POT 10k
POT3-Vol1
1
Speaker
Speaker1
1
SVG2SHENZHEN
board1
2
LED
D-OUT1, D-POW1
3
100nF
C1, C2, C3
2
10uF
C4, C5
1
1uF
C6
1
220uF
C7
8
22k
R1, R2, R3, R4, R5, R6, R7, R15
3
330
R8, R9, R14
2
4.7K
R10, R11
2
1K
R12, R13
Show 1 more
QtyPartRefs
1
0
R99

MutanMonkey Mixtape3000 design files

The KiCad project lives in the 8BitMixtape/MutanMonkey_Mixtape3000 repository on GitHub; these links point at the commit this page was built from.

MutanMonkey Mixtape3000: common questions

What microcontroller does the MutanMonkey Mixtape3000 use?

The MutanMonkey Mixtape3000 is built around the ATTINY85-20SU, from the AVR/Arduino family.

How big is the MutanMonkey Mixtape3000 PCB?

The MutanMonkey Mixtape3000 measures 99 × 64.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MutanMonkey Mixtape3000?

46 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the MutanMonkey Mixtape3000 design files?

From the 8BitMixtape/MutanMonkey_Mixtape3000 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the MutanMonkey Mixtape3000 design in my own project?

Yes, under the terms of its GPL-3.0 license, which 8BitMixtape chose for the repository.

Can I test firmware for the MutanMonkey Mixtape3000 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
