Seglow16
About the Seglow16 PCB
Seglow16 is an open source PCB design by abetusk, published on GitHub under the CC0-1.0 license. It is a 5-layer board measuring 101.7 × 132.2 mm, with 40 components from 4 distinct parts.
Other key parts include the WS2812B. By type, the board carries 19 ICs, 19 capacitors and 1 module.
It belongs with the displays & leds designs in this gallery.
From the project

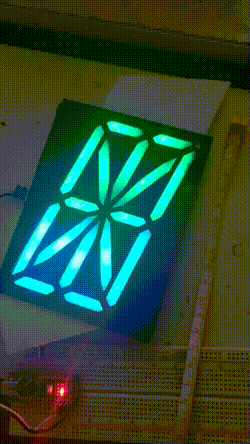

A 16-segment RGB LED display
A 16 segment digit (base board) using WS2812B/SK6812 5050 parts. Size should be about 5.2"x3.9" (132mmx100mm).
The segments can be chained, just like a normal WS2812b strip, and each board has separate power and signal lines to facilitate ease of driving multiple digits chained together.
A small example script to "drive" the digits is located in the src/ directory.
Main components on the Seglow16
Seglow16 bill of materials (BOM)
40 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 19 | WS2812B | meowWS2812B | U3, U6, U7, U8, U9, U10, U11, U12 +11 |
| 1 | WS2812B | meowWS2812B | a0 |
| 1 | 100NF 100nf | C1206 | aC0 |
| 19 | 100NF C | C1206 | C2, C3, C4, C5, C6, C7, C8, C9 +11 |
Seglow16 design files
The KiCad project lives in the abetusk/seglow16 repository on GitHub; these links point at the commit this page was built from.
Seglow16: common questions
How big is the Seglow16 PCB?
The Seglow16 measures 101.7 × 132.2 mm, has 5 copper layers and is 1.6002 mm thick.
How many components are on the Seglow16?
40 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Seglow16 design files?
From the abetusk/seglow16 repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Seglow16 design in my own project?
Yes, under the terms of its CC0-1.0 license, which abetusk chose for the repository.
