About the 6502 Backplane Pro PCB
6502 Backplane Pro is an open source PCB design by acwright, published on GitHub under the CERN-OHL-P-2.0 license. It is a 2-layer board measuring 100 × 100 mm, with 27 components from 15 distinct parts.
Other key parts include the 65C02. By type, the board carries 14 capacitors, 7 resistors, 2 diodes, 1 IC, 1 transistor and 1 connector.
It belongs with the retro computing and keyboards designs in this gallery.
From the project

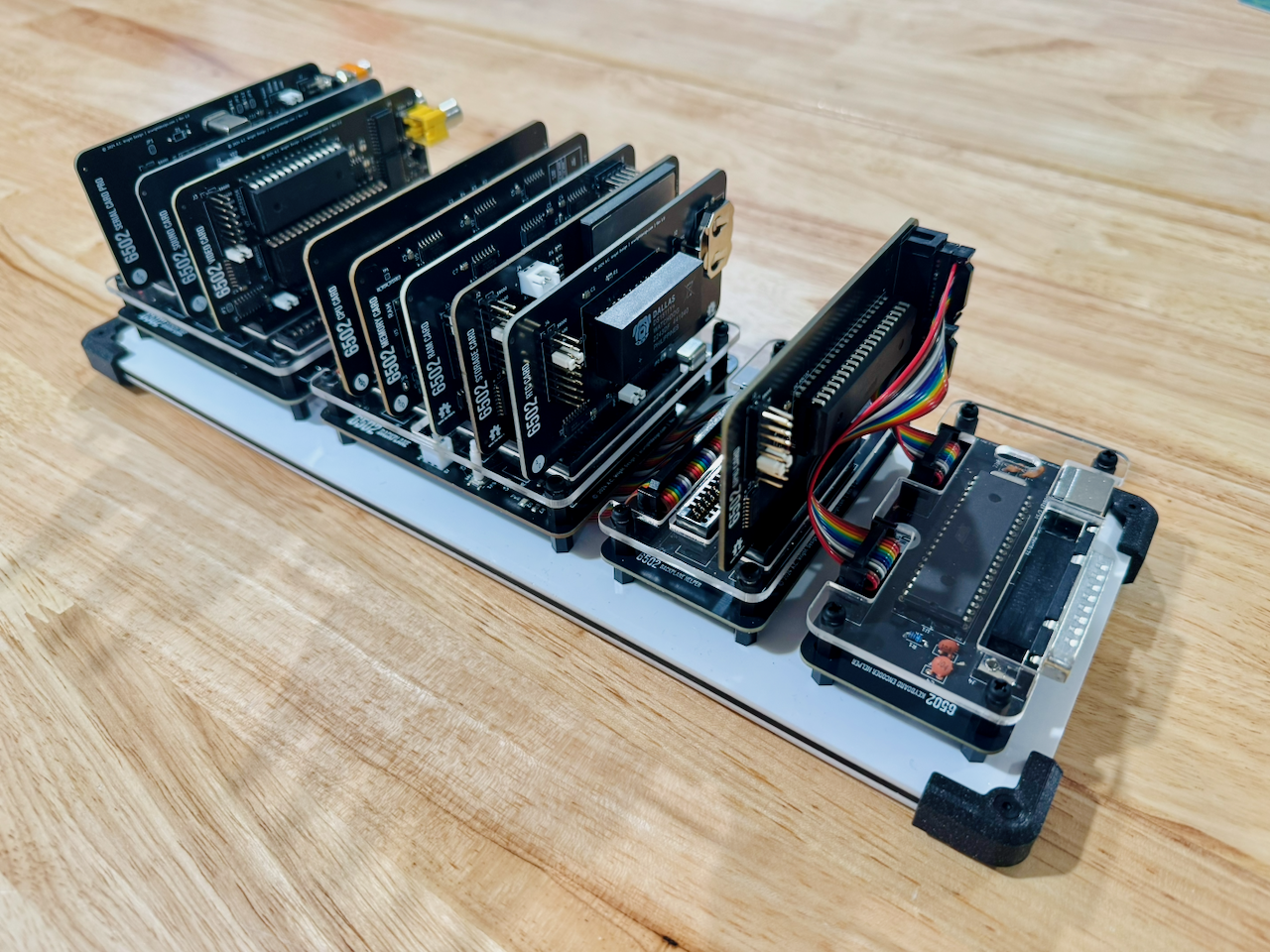

6502-COB 8-Bit Retro Computer Project
An AC6502 retro-style 8-bit computer based on the 65C02 microprocessor.
- Overview - Architecture - Systems - Software - Hardware - Backplanes - Cards - Helpers - Firmware - KEH Controller - PS2 Keyboard Controller - STP Controller - CAD - Production - Schematics - Libraries - Bill of Materials - Backplane - Backplane Helper - Backplane Pro - Blinkenlights Card - Breadboard Helper - Clock Helper - CPU Card - CPU Card Pro - DB25 Helper - GPIO Breadboard Helper - GPIO Card - GPIO Helper - Joystick Helper - Keyboard Encoder Helper - Keyboard Helper - LCD Board - LCD Card - Mega Helper - Memory…

Main components on the 6502 Backplane Pro
6502 Backplane Pro bill of materials (BOM)
27 components, 15 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 65C02 LM555xM | SOIC-8_3.9x4.9mm_P1.27mm | U1 |
| 1 | Q_NPN_BEC | SOT-23 | Q1 |
| 1 | CONN_01X02 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J2 |
| 1 | Reset | SW_TS-1187A-B-A-B | SW1 |
| 1 | 1N5819 | D_SOD-323F | D1 |
| 1 | LED | LED_0805_2012Metric | D2 |
| 1 | 100NF 100nF | C_0805_2012Metric | C1 |
| 1 | 10uF | C_1206_3216Metric | C2 |
| 12 | 100nF | C_0805_2012Metric | C3, C4, C5, C6, C7, C8, C9, C10 +4 |
| 1 | 1M | R_0805_2012Metric | R1 |
| 1 | 47k | R_0805_2012Metric | R2 |
| 1 | 1k | R_0805_2012Metric | R3 |
| 1 | 10k | R_0805_2012Metric | R4 |
| 2 | 5.1k | R_0805_2012Metric | R5, R6 |
| 1 | 330 | R_0805_2012Metric | R7 |
6502 Backplane Pro design files
The KiCad project lives in the acwright/6502-COB repository on GitHub; these links point at the commit this page was built from.
6502 Backplane Pro: common questions
How big is the 6502 Backplane Pro PCB?
The 6502 Backplane Pro measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the 6502 Backplane Pro?
27 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the 6502 Backplane Pro design files?
From the acwright/6502-COB repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the 6502 Backplane Pro design in my own project?
Yes, under the terms of its CERN-OHL-P-2.0 license, which acwright chose for the repository.
