Robot dog PCB layout, top view — open source ESP32 board by adamsa09

About the Robot dog PCB

Robot dog is an open source ESP32 PCB design by adamsa09, published on GitHub. It is a 2-layer board measuring 59 × 66 mm, with 7 components from 7 distinct parts.

Its main chip is the ESP32_1, from the ESP32 family.

It belongs with the robotics & motion designs in this gallery.

From the project

Servo-driven quadruped robot

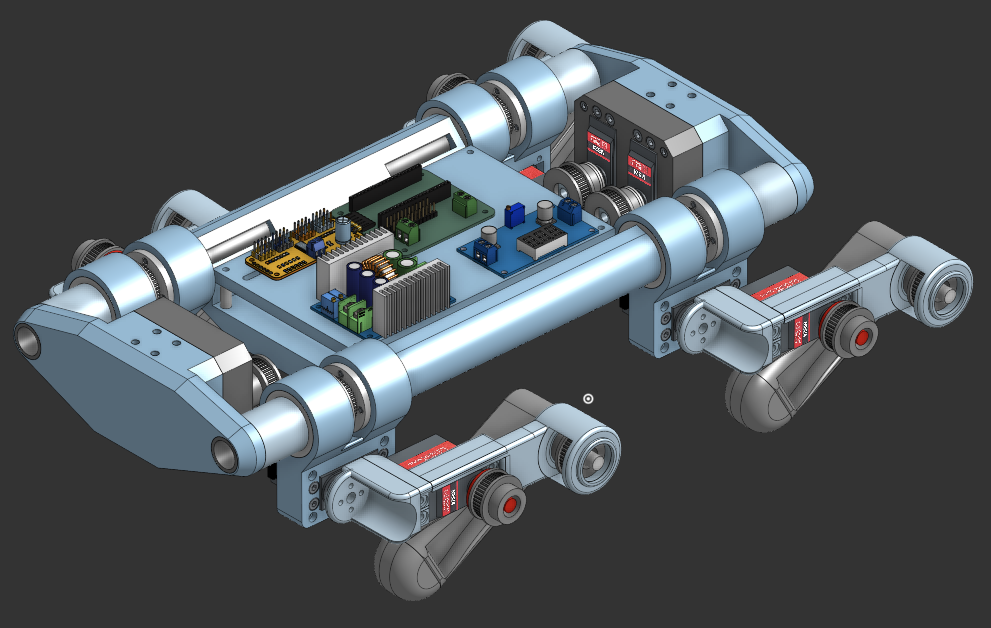

Robot dog, from the project README
From the project README

Robot dog bill of materials (BOM)

7 components, 7 distinct parts.

QtyPartRefs
1
LM2596 OUTPUT
J1
1
PCA9685
J2
1
20A 300W High-Power Buck Converter OUTPUT
J3
1
ESP32_1
J4
1
ESP32_2
J5
1
Servo +
J9
1
Servo -
J10

Robot dog design files

The KiCad project lives in the adamsa09/robot-dog repository on GitHub; these links point at the commit this page was built from.

Robot dog: common questions

What microcontroller does the Robot dog use?

The Robot dog is built around the ESP32_1, from the ESP32 family.

How big is the Robot dog PCB?

The Robot dog measures 59 × 66 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Robot dog?

7 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Robot dog design files?

From the adamsa09/robot-dog repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Robot dog design in my own project?

The repository has no license, so all rights stay with adamsa09. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Robot dog without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
