KiCad PCB Tutorial

ADolbyB·vlsi-spice-pcbs·KiCAD/Tutorial1/Tutorial1.kicad_pcb

KiCad PCB Tutorial layout, top view — open source board by ADolbyB

About the KiCad PCB Tutorial

KiCad PCB Tutorial is an open source PCB design by ADolbyB, published on GitHub. It is a 2-layer board measuring 52 × 35 mm, with 4 components from 4 distinct parts.

By type, the board carries 1 battery holder, 1 switch, 1 diode and 1 resistor.

From the project

A collection of Schematics, PCBs and VLSI work on various platforms

This tutorial can be found in the help -> Getting Started With KiCad menu in the Schematic Editor of KiCad.

This small tutorial covers schematic building, PCB layout, symbol & library creation, and 3D rendering. The KiCad files are arranged in the default manner.

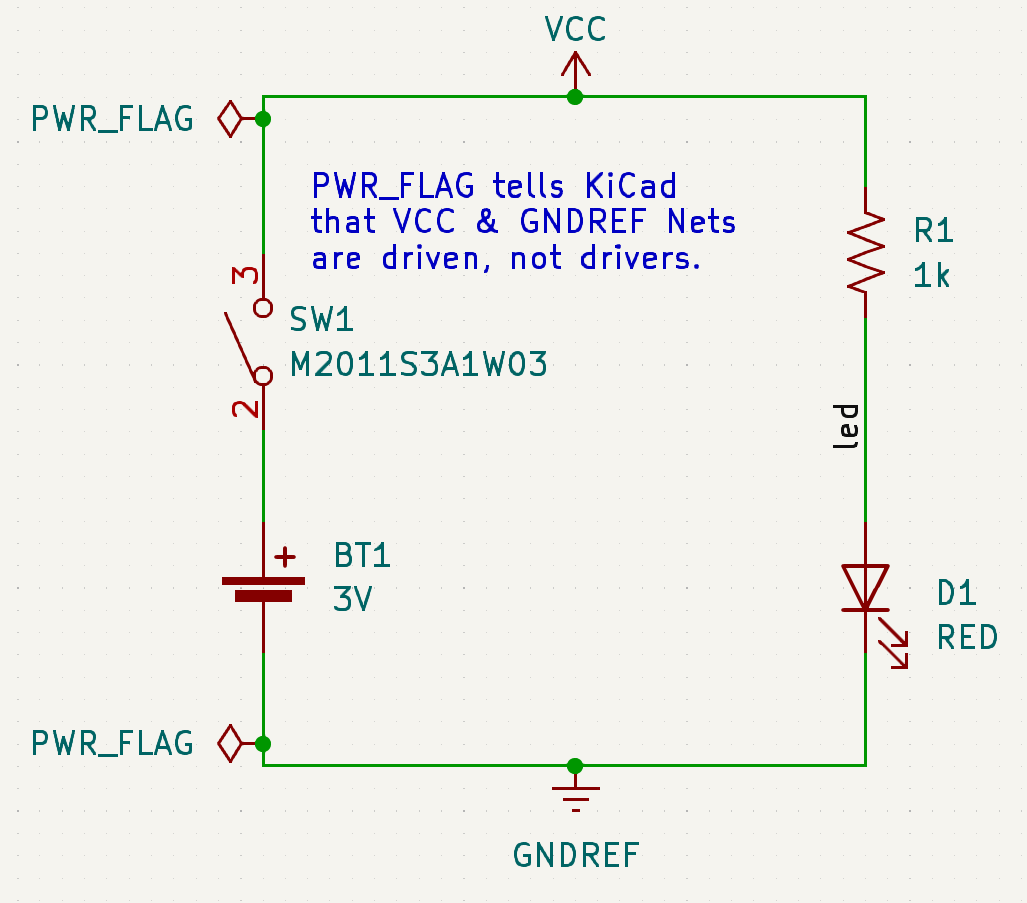

KiCad PCB Tutorial, from the project README
From the project README

KiCad PCB Tutorial bill of materials (BOM)

4 components, 4 distinct parts.

QtyPartRefs
1
3V
BT1
1
M2011S3A1W03
SW1
1
RED
D1
1
1k
R1

KiCad PCB Tutorial design files

The KiCad project lives in the ADolbyB/vlsi-spice-pcbs repository on GitHub; these links point at the commit this page was built from.

KiCad PCB Tutorial: common questions

How big is the KiCad PCB Tutorial?

The KiCad PCB Tutorial measures 52 × 35 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad PCB Tutorial?

4 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad PCB Tutorial design files?

From the ADolbyB/vlsi-spice-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KiCad PCB Tutorial design in my own project?

The repository has no license, so all rights stay with ADolbyB. Use it as a reference, and ask the author before reusing the design.
