AudioAmpEELv2 PCB layout, top view — open source board by ADolbyB

About the AudioAmpEELv2 PCB

AudioAmpEELv2 is an open source PCB design by ADolbyB, published on GitHub. It is a 2-layer board measuring 81.5 × 44 mm, with 25 components from 17 distinct parts.

By type, the board carries 8 resistors, 6 capacitors, 3 transistors, 3 connectors and 2 diodes.

It belongs with the audio designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

A collection of Schematics, PCBs and VLSI work on various platforms

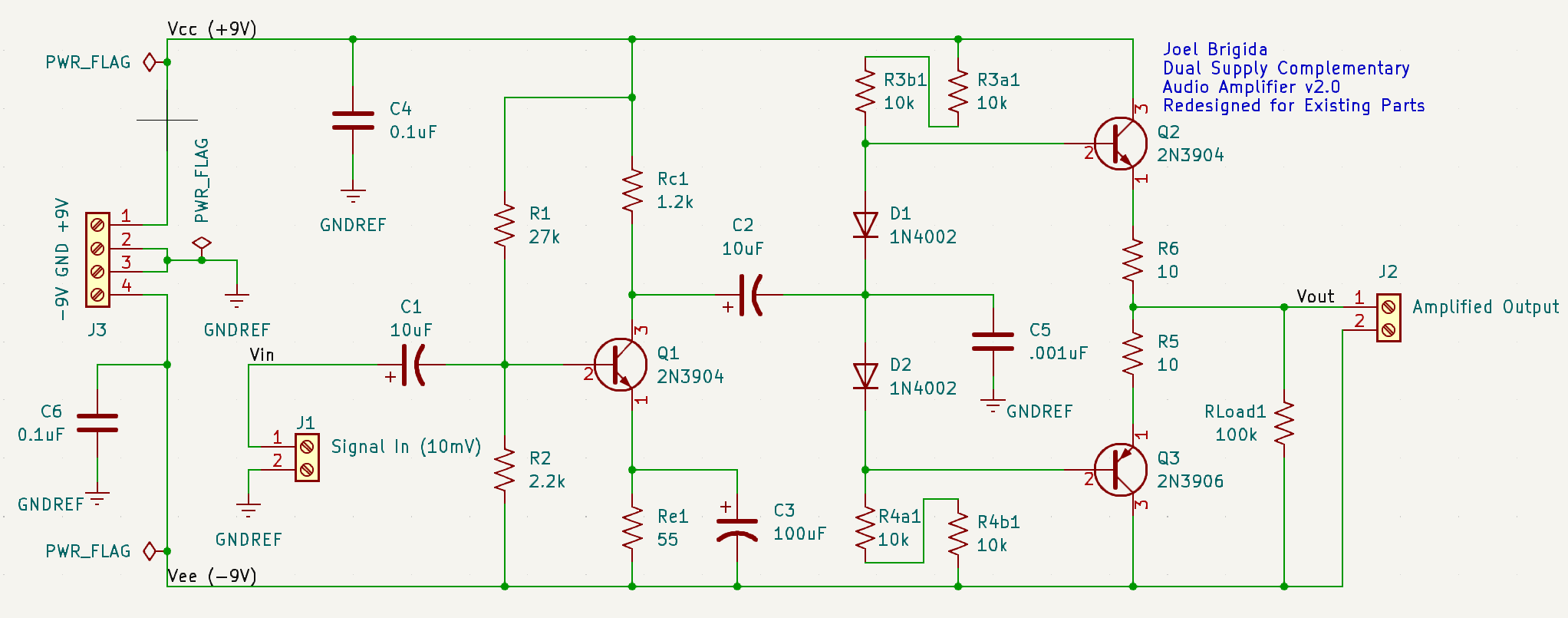

This is a small redesign of the Dual Power Supply Complementary Audio Amplifier project for Electronics 1 Lab. This design uses all 1% resistors, so the $ 20k\Omega \, R3 $ and $ R4 $ had to be replaced with $ 2\times 10k\Omega $ Resistors in series. This design was tested and working using the Digilent Analog Discovery 2. The center frequency for this amplifier is still 10kHz.

AudioAmpEELv2, from the project README
From the project README

AudioAmpEELv2 bill of materials (BOM)

25 components, 17 distinct parts.

QtyPartRefs
2
2N3904
Q1, Q2
1
2N3906
Q3
1
Signal In (10mV)
J1
1
Amplified Output
J2
1
-9V GND +9V
J3
1
100k
RLoad1
1
1.2k
Rc1
1
55
Re1
2
1N4002
D1, D2
2
10uF
C1, C2
1
100uF
C3
2
0.1uF
C4, C6
1
.001uF
C5
1
27k
R1
1
2.2k
R2
4
10k
R3a1, R3b1, R4a1, R4b1
2
10
R5, R6

AudioAmpEELv2 design files

The KiCad project lives in the ADolbyB/vlsi-spice-pcbs repository on GitHub; these links point at the commit this page was built from.

AudioAmpEELv2: common questions

How big is the AudioAmpEELv2 PCB?

The AudioAmpEELv2 measures 81.5 × 44 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AudioAmpEELv2?

25 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the AudioAmpEELv2 design files?

From the ADolbyB/vlsi-spice-pcbs repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AudioAmpEELv2 design in my own project?

The repository has no license, so all rights stay with ADolbyB. Use it as a reference, and ask the author before reusing the design.
