Robomagotchi Arduino Project

About the Robomagotchi Arduino Project PCB

Robomagotchi Arduino Project is an open source AVR/Arduino PCB design by Adrifot, published on GitHub under the MIT license. It is a board, with 9 components from 7 distinct parts.

Its main chip is the Arduino UNO R3, from the AVR/Arduino family. By type, the board carries 2 resistors and 1 buzzer.

It belongs with the displays & leds and sensors designs in this gallery.

From the project

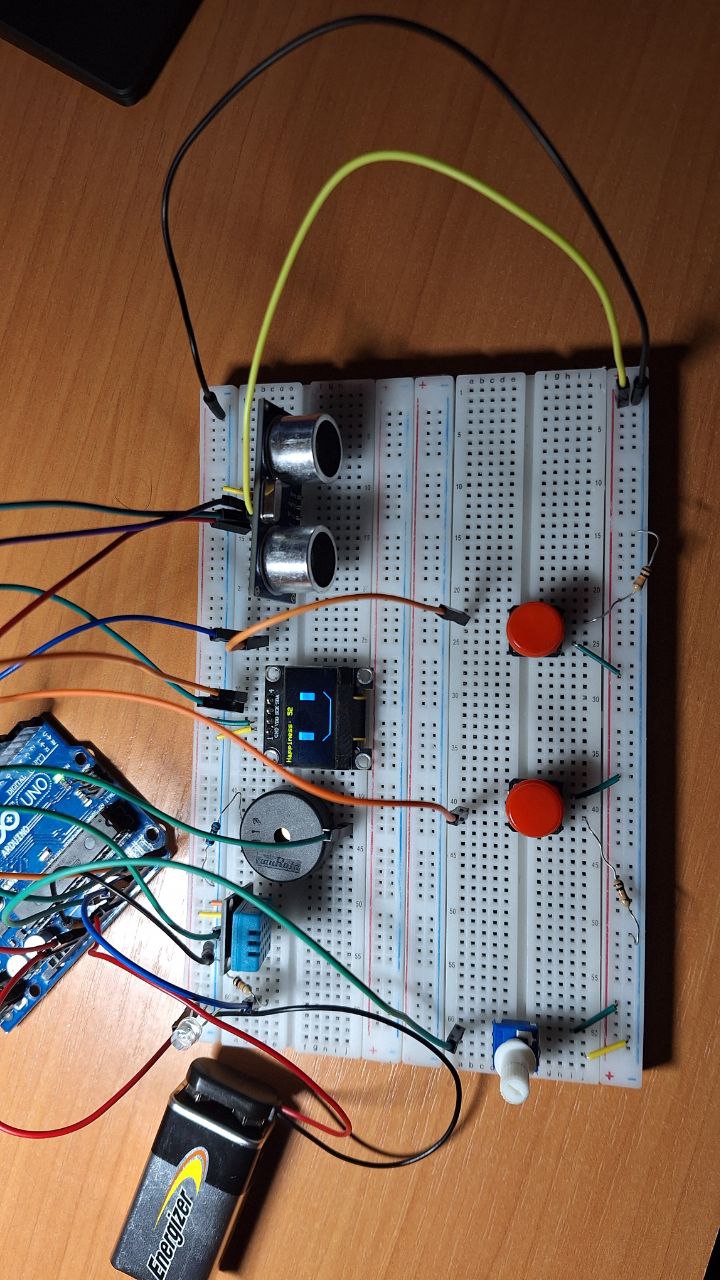

This project is a mini-robot companion designed to simulate the experience of caring for and interacting with a virtual pet. Users can engage with the robot by satisfying its needs, playing minigames, and interacting through various sensors, buttons, and outputs. The robot respon

This project is a mini-robot companion designed to simulate the experience of caring for and interacting with a virtual pet. Users can engage with the robot by satisfying its needs, playing minigames, and interacting through various sensors, buttons, and outputs. The robot responds dynamically to user input and its environment.

Refer to the /schematics folder for the full KiCAD project file.

Robomagotchi Arduino Project bill of materials (BOM)

9 components, 7 distinct parts.

QtyPartRefs
1
Arduino UNO R3
ATmega328P
2
SW_Push
BTN1, BTN2
1
Buzzer
BZ1
1
Temp & Humidity Sensor
DHT11
1
Ultrasonic Proximity Sensor
HC-SR04
1
I2C OLED Display
SSD1306
2
10 k
R1, R2

Robomagotchi Arduino Project design files

The KiCad project lives in the Adrifot/Robomagotchi_Arduino_Project repository on GitHub; these links point at the commit this page was built from.

Robomagotchi Arduino Project: common questions

What microcontroller does the Robomagotchi Arduino Project use?

The Robomagotchi Arduino Project is built around the Arduino UNO R3, from the AVR/Arduino family.

How many components are on the Robomagotchi Arduino Project?

9 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Robomagotchi Arduino Project design files?

From the Adrifot/Robomagotchi_Arduino_Project repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Robomagotchi Arduino Project design in my own project?

Yes, under the terms of its MIT license, which Adrifot chose for the repository.

Can I test firmware for the Robomagotchi Arduino Project without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
