AvBadge 2020

AerospaceVillage·avBadge_2020·kicad/aerospace_badge/aerospace_badge.kicad_pcb

AvBadge 2020 PCB layout, top view — open source AVR/Arduino board by AerospaceVillage
Simulate this board

About the AvBadge 2020 PCB

AvBadge 2020 is an open source AVR/Arduino PCB design by AerospaceVillage, published on GitHub. It is a 2-layer board measuring 134.3 × 140 mm, with 20 components from 13 distinct parts.

Its main chip is the ATtiny85-20SU, from the AVR/Arduino family. By type, the board carries 7 connectors, 5 diodes, 5 resistors, 1 IC, 1 battery holder and 1 switch.

It belongs with the wearables designs in this gallery.

From the project

Aerospace Village Badge 2020

This resository is to document and capture all of the engineering and design work that went into creating the Aerospace Village Badge for 2020.

The badge is a multifunctional design that is part SWAG, part antenna, part low level protocol interaction. In keeping with the spirit of aviation everything is as small as possible and tries to use as much of the available resources as possible.

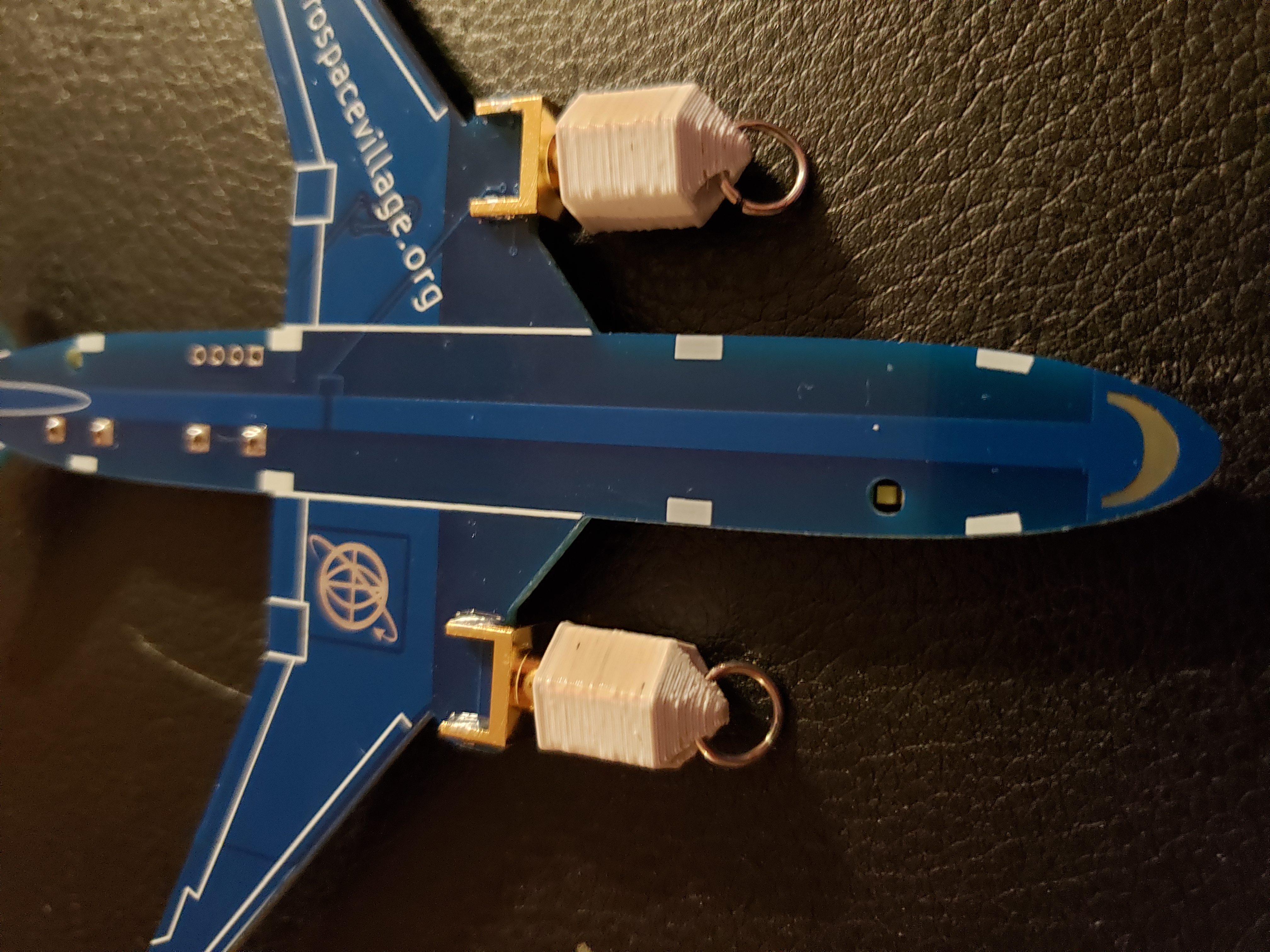

AvBadge 2020, from the project README
From the project README

Main components on the AvBadge 2020

ATtiny85-20SU

AvBadge 2020 bill of materials (BOM)

20 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATtiny85-20SU
U1
2
Conn_01x02
J1, J2
1
Conn_02x03_Counter_Clockwise
J3
1
Conn_01x04
J4
2
Conn_01x01_Male
J6, J7
1
Conn_01x01_Male
J8
1
Battery_Cell
BT1
1
SW_SPDT
SW1
1
LED
D1
1
LED
D2
1
LED
D3
2
LED
D4, D5
5
330
R1, R2, R3, R4, R5

AvBadge 2020 design files

The KiCad project lives in the AerospaceVillage/avBadge_2020 repository on GitHub; these links point at the commit this page was built from.

AvBadge 2020: common questions

What microcontroller does the AvBadge 2020 use?

The AvBadge 2020 is built around the ATtiny85-20SU, from the AVR/Arduino family.

How big is the AvBadge 2020 PCB?

The AvBadge 2020 measures 134.3 × 140 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AvBadge 2020?

20 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AvBadge 2020 design files?

From the AerospaceVillage/avBadge_2020 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the AvBadge 2020 design in my own project?

The repository has no license, so all rights stay with AerospaceVillage. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AvBadge 2020 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
