About the Brushless-Motor-Biz-Card PCB
Brushless-Motor-Biz-Card is an open source AVR/Arduino PCB design by ageppert, published on GitHub under the MIT license. It is a 2-layer board measuring 88.9 × 50.8 mm, with 70 components from 45 distinct parts.
Its main chip is the ATMEGA328PB-AU, from the AVR/Arduino family. By type, the board carries 21 resistors, 19 connectors, 9 test points, 8 capacitors, 7 transistors and 3 crystals.
It belongs with the robotics & motion designs in this gallery.
From the project

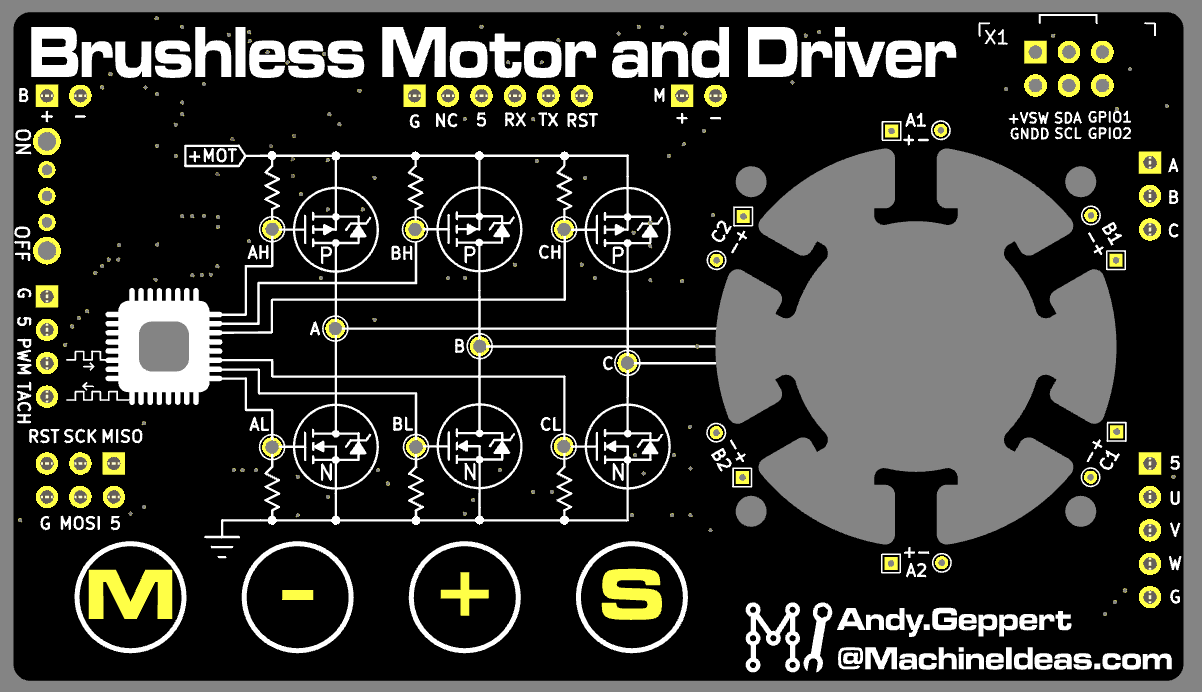

A brushless motor and driver built in to a business card form-factor for learning and experimenting!
Follow this project at: https://hackaday.io/project/196576-brushless-motor-and-driver-business-card-kit
Carl Bugeja - PCB Motors and related magical creations
Random Access Projects - Open loop brushless motor and beyond
https://www.youtube.com/channel/UCRd9x4pmbc09_RXTrkSY2Gg
Electronoobs - brushless motor and ESC projects
Main components on the Brushless-Motor-Biz-Card
Brushless-Motor-Biz-Card bill of materials (BOM)
70 components, 45 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA328PB-AU ATmega328PB-A | TQFP-32_7x7mm_P0.8mm | U1 |
| 3 | DMP2066LSN-7 Q_PMOS_GSD | SOT-23-3 | Q1, Q3, Q5 |
| 3 | NVTR4503NT1G Q_NMOS_GSD ON Semiconductor | SOT-23-3 | Q2, Q4, Q6 |
| 1 | SL3401A-TP SL3401A Micro Commercial Co | SOT-23-3 | Q21 |
| 1 | SFH11-NBPC-D03-ST-BK SAO_Header Sullins | Badgelife-SAOv169-BADGE-2x3 | X1 |
| 1 | SM04B-SRSS-TB QWIIC JST | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | X2 |
| 1 | CSTNE16M0V53Z000R0 16MHz 15pF Resonator | OSC_CSTNE20M0V53Z000R0 | Y1 |
| 1 | BATTERY | PinSocket_1x02_P2.54mm_Vertical | J1 |
| 1 | Conn_01x06_SERIAL_PROG_HEADER | PinSocket_1x06_P2.54mm_Vertical | J2 |
| 1 | Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | J4 |
| 1 | Conn_02x03_Odd_Even_ISP | PinSocket_2x03_P2.54mm_Vertical | J5 |
| 1 | Conn_01x02_MOTOR_POWER | PinSocket_1x02_P2.54mm_Vertical | J6 |
| 1 | Conn_01x03 | PinSocket_1x03_P2.54mm_Vertical | J8 |
| 1 | Conn_01x04 | PinSocket_1x05_P2.54mm_Vertical | J9 |
| 1 | A1+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J11 |
| 1 | A1- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J12 |
| 1 | A2+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J13 |
| 1 | A2- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J14 |
| 1 | B1+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J15 |
| 1 | B1- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J16 |
Show 25 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | B2+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J17 |
| 1 | B2- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J18 |
| 1 | C1+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J19 |
| 1 | C1- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J20 |
| 1 | C2+ | TestPoint_THTPad_1.0x1.0mm_Drill0.5mm | J21 |
| 1 | C2- | TestPoint_THTPad_D1.0mm_Drill0.5mm | J22 |
| 1 | OS102011MA1QN1 SK12D07L4B C&K | SK12D07VG4 | SW1 |
| 1 | AH | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP1 |
| 1 | AL | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP2 |
| 1 | BH | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP3 |
| 1 | BL | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP4 |
| 1 | CH | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP5 |
| 1 | CL | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP6 |
| 1 | A | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP7 |
| 1 | B | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP8 |
| 1 | C | TestPoint_THTPad_D1.5mm_Drill1.0mm | TP9 |
| 1 | SK6812-E SK6812 DONGGUAN OPSCO OPTOELECTRONICS | 4960_ADA_REV_RGB_LED_short_pads | D21 |
| 3 | GRM31CR60J227ME11L 220uF | C_1206_3216Metric | C1, C11, C12 |
| 1 | CL21B106KOQNNNG 10uF | C_0805_2012Metric | C2 |
| 4 | CL21B104KAFNNNE 0.1uF | C_0805_2012Metric | C3, C4, C5, C7 |
| 9 | RK73H2ATTD1001F 1K | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R41, R42 +1 |
| 2 | RK73H2ATTD1002F 10K | R_0805_2012Metric | R7, R21 |
| 6 | RK73H2ATTD4700F 470 | R_0805_2012Metric | R8, R9, R10, R11, R12, R13 |
| 2 | RK73H2ATTD1201F 1K2 | R_0805_2012Metric | R30, R31 |
| 2 | RK73H2ATTD68R0F 68 | R_0805_2012Metric | R32, R33 |
Brushless-Motor-Biz-Card design files
The KiCad project lives in the ageppert/Brushless-Motor-Biz-Card repository on GitHub; these links point at the commit this page was built from.
Brushless-Motor-Biz-Card: common questions
What microcontroller does the Brushless-Motor-Biz-Card use?
The Brushless-Motor-Biz-Card is built around the ATMEGA328PB-AU, from the AVR/Arduino family.
How big is the Brushless-Motor-Biz-Card PCB?
The Brushless-Motor-Biz-Card measures 88.9 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Brushless-Motor-Biz-Card?
70 components, from 45 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Brushless-Motor-Biz-Card design files?
From the ageppert/Brushless-Motor-Biz-Card repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Brushless-Motor-Biz-Card design in my own project?
Yes, under the terms of its MIT license, which ageppert chose for the repository.
Can I test firmware for the Brushless-Motor-Biz-Card without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
