About the Cart PCB
Cart is an open source PCB design by agkaminski, published on GitHub under the CC0-1.0 license. It is a 2-layer board measuring 47.2 × 29.2 mm, with 4 components from 4 distinct parts.
Other key parts include the 27256. By type, the board carries 2 ICs, 1 connector and 1 capacitor.
It belongs with the retro computing and keyboards designs in this gallery.
From the project

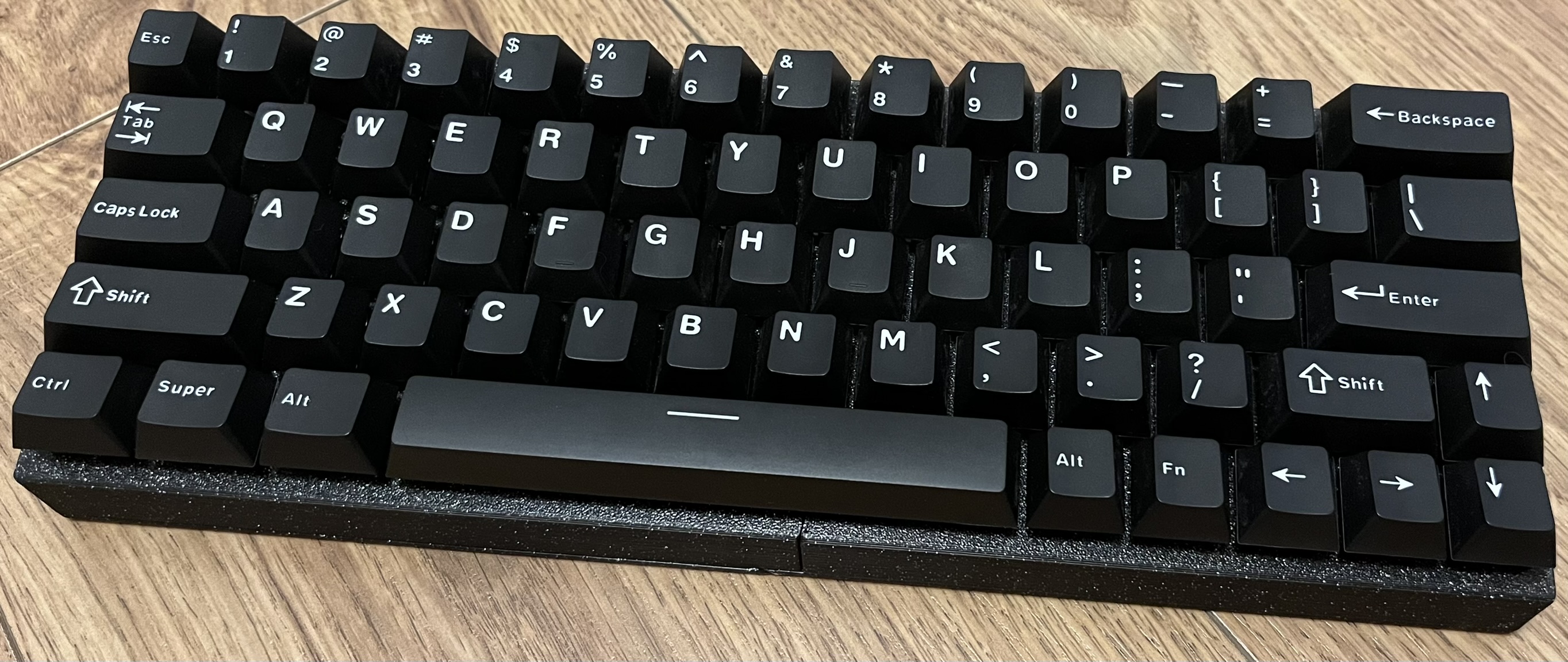

DIY 6502 all-in-keyboard personal computer
All-in-keyboard 6502 based PC with built-in BASIC interpreter.
- BASIC interpreter, - 6502/65C02/W65C02S CPU @1.8432 MHz, - 32 KiB of ROM, 24 KiB of static RAM, - 640x480@60Hz VGA adapter with character generator (80x60 black and white text mode only), - 6522 VIA for onboard control, I2C memory and user port, - 2 UARTs (USB-C and RS-232), - 68 or 63 button mechanical keyboard, - edge connector expansion port, - powered via USB-C port.
Main components on the Cart
Cart bill of materials (BOM)
4 components, 4 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ~ | CART_FELLA_38 | U1 |
| 1 | 27256 | DIP-28_W15.24mm | U2 |
| 1 | CONN_01X02 Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | 100N 100n | C_Disc_D3.4mm_W2.1mm_P2.50mm | C1 |
