Kicad LFOV RigidFlex Assembly Screwhole

Aharoni-Lab·MiniXL·KiCad/Kicad_LFOV_RigidFlex_Assembly_Screwhole.kicad_pcb

Kicad LFOV RigidFlex Assembly Screwhole PCB layout, top view — open source board by Aharoni-Lab
Simulate this board

About the Kicad LFOV RigidFlex Assembly Screwhole PCB

Kicad LFOV RigidFlex Assembly Screwhole is an open source PCB design by Aharoni-Lab, published on GitHub. It is a 4-layer board measuring 19 × 12.5 mm, with 97 components from 45 distinct parts.

Other key parts include the MAX14574EWL+, DS90UB913ATRTVTQ1, BNO055, SC189ZULTRT and LTC3218. By type, the board carries 54 capacitors, 18 resistors, 10 ICs, 6 inductors, 4 diodes and 3 connectors.

From the project

This is the repository for the second version of MiniLFOV, called MiniLFOV-XL.

[Miniscope V4 Wiki] [Miniscope DAQ Software Wiki] [Miniscope DAQ Firmware Wiki] [Miniscope Wire-Free DAQ Wiki] [MiniLFOV-Light Wiki][2021 Virtual Miniscope Workshop Recording]

This is the repository for the second version of MiniLFOV, called MiniXL, which is able to image the neuronal acitivity in freely moving mice with a field of view larger than 3mm and single cell resolution. Large field-of-view miniature microscope for freely moving mice and bigger animals. All information, guides, and tutorials can be found on the MiniLFOV-Light Wiki Page. Make sure to click Watch and Star in the upper…

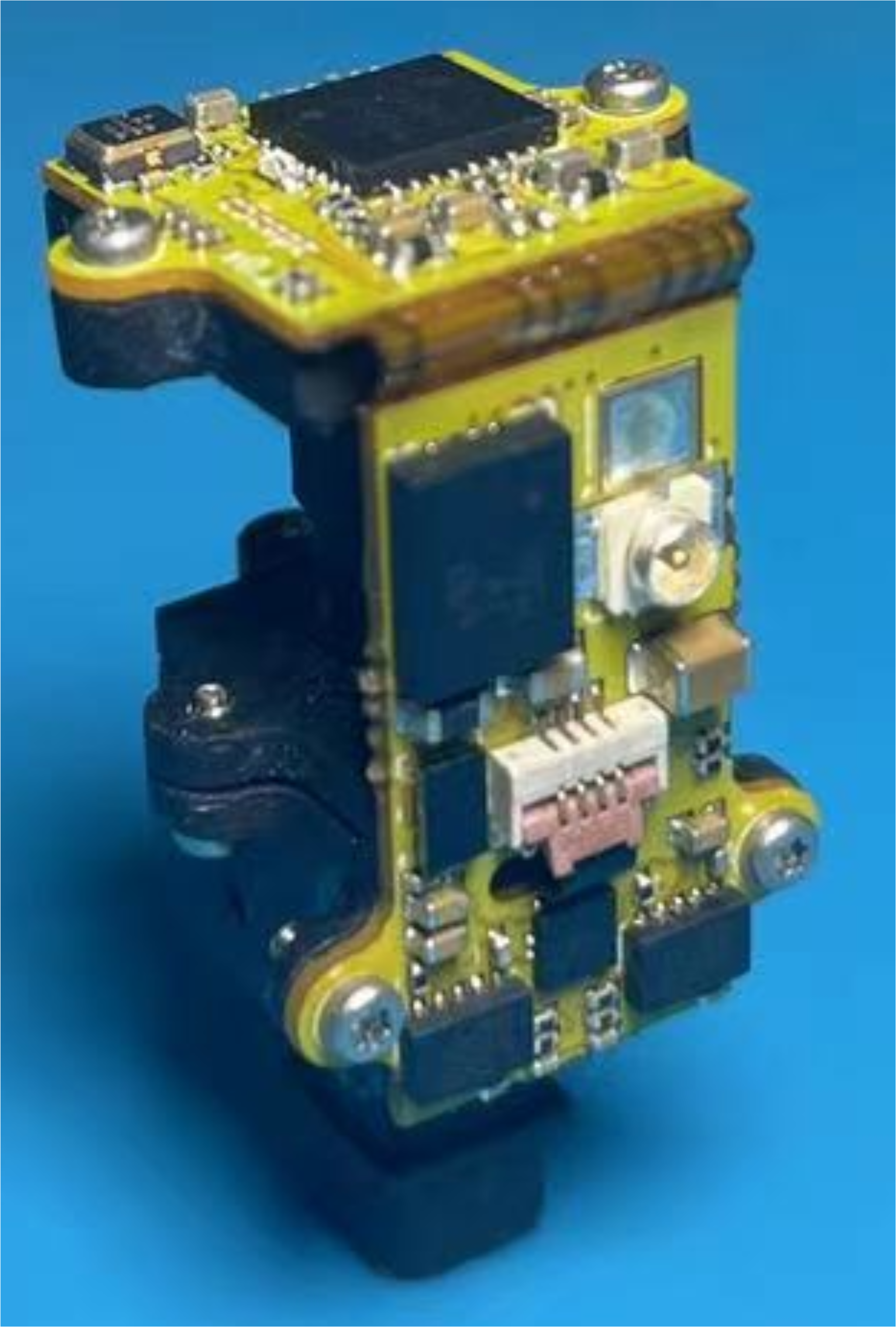

Kicad LFOV RigidFlex Assembly Screwhole, from the project README
From the project README

Main components on the Kicad LFOV RigidFlex Assembly Screwhole

MAX14574EWL+DS90UB913ATRTVTQ1BNO055SC189ZULTRTLTC3218MT9P031I12STM-DPTPL0102-100RUCRNCV8154MW180280TBGSG-210STF 66.6667ML3

Kicad LFOV RigidFlex Assembly Screwhole bill of materials (BOM)

97 components, 45 distinct parts.

QtyPartRefs
1
MAX14574EWL+
U1
1
DS90UB913ATRTVTQ1
U2
1
BNO055
U3
1
SC189ZULTRT
U4
2
LTC3218
U5, U7
1
MT9P031I12STM-DP
U6
1
TPL0102-100RUCR
U8
1
NCV8154MW180280TBG
U9
1
SG-210STF 66.6667ML3
U10
1
FH19C-4S-0.5SH(10)
J1
2
Conn_01x07
J5, J6
1
U.FL-R-SMT-1(10)
J_coax1
1
Conn_01x01
J_coax_gnd1
1
BAS316-TP
D1
1
LED 0402
D2
2
LXZ1-PB01
D3, D4
1
LQM18PN3R3MGHD
L1
3
BLM15HD102SN1D
L2, L4, L5
1
ADL3225V-470MT-TL000
L3
1
LQM2HPN1R0MG0
L6
Show 25 more
QtyPartRefs
5
GRM155R60J475ME87D
C1, C14, C15, C45, C51
12
GRM033R61A104ME15D
C2, C5, C7, C9, C11, C18, C19, C20 +4
6
GRM033R71A103KA01D
C4, C26, C27, C28, C29, C30
1
GRJ188R72A104KE11D
C6
1
GRM033R61C473KE84D
C8
1
GRM033R61A105ME15D
C10
1
GRM21BR61A476ME15L
C12
2
10uF
C13, C38
4
GRM155R60J106ME15D
C16, C17, C24, C44
6
1uF
C23, C25, C31, C32, C33, C50
4
GRM033R61A225ME47D
C34, C39, C47, C48
9
0.1uF
C35, C36, C37, C40, C41, C42, C43, C46 +1
1
10nF
C49
1
22uF
C54
2
ERJ-1GNF3321C
R1, R2
1
ERJ-1GNF49R9C
R3
5
ERJ-1GNF1022C
R5, R7, R9, R10, R16
1
ERJ-1GNF1003C
R6
1
ERJ-1GNF1801C
R11
1
1k
R12
1
500
R13
1
DNL
R17
1
ERJ-1GEF1022C
R18
2
ERJ-1GNJ622C
R19, R21
2
ERJ-1GNF3741C
R20, R22

Kicad LFOV RigidFlex Assembly Screwhole design files

The KiCad project lives in the Aharoni-Lab/MiniXL repository on GitHub; these links point at the commit this page was built from.

Kicad LFOV RigidFlex Assembly Screwhole: common questions

How big is the Kicad LFOV RigidFlex Assembly Screwhole PCB?

The Kicad LFOV RigidFlex Assembly Screwhole measures 19 × 12.5 mm, has 4 copper layers and is 0.7874 mm thick.

How many components are on the Kicad LFOV RigidFlex Assembly Screwhole?

97 components, from 45 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kicad LFOV RigidFlex Assembly Screwhole design files?

From the Aharoni-Lab/MiniXL repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Kicad LFOV RigidFlex Assembly Screwhole design in my own project?

The repository has no license, so all rights stay with Aharoni-Lab. Use it as a reference, and ask the author before reusing the design.
