Stm32f103-dev board layout, top view — open source STM32 board by ajmalpro11
Simulate this board

About the Stm32f103-dev board

Stm32f103-dev board is an open source STM32 PCB design by ajmalpro11, published on GitHub under the MIT license. It is a 2-layer board measuring 42 × 35.5 mm, with 28 components from 16 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the AMS1117-3.3. By type, the board carries 13 capacitors, 5 resistors, 4 connectors, 2 ICs, 1 crystal and 1 switch.

It belongs with the dev boards & breakouts and wearables designs in this gallery.

From the project

A complete, manufacturable 2-layer PCB for an STM32F103C8T6 microcontroller with USB, on-board 3.3 V regulation, crystal oscillator, SWD debug, and broken-out GPIO/UART/I²C headers. Designed from scratch in KiCad — from schematic capture through DRC-clean routing to a full, fab-r

A complete, manufacturable 2-layer PCB for an STM32F103C8T6 microcontroller with USB, on-board 3.3 V regulation, crystal oscillator, SWD debug, and broken-out GPIO/UART/I²C headers. Designed from scratch in KiCad — from schematic capture through DRC-clean routing to a full, fab-ready manufacturing package (Gerbers, drill, BOM, and pick-and-place).

The STM32 "Blue Pill" / "Black Pill" family is a popular, low-cost way to move from Arduino-style modules toward professional embedded hardware. This project recreates that concept as a fully custom PCB to learn the complete hardware design…

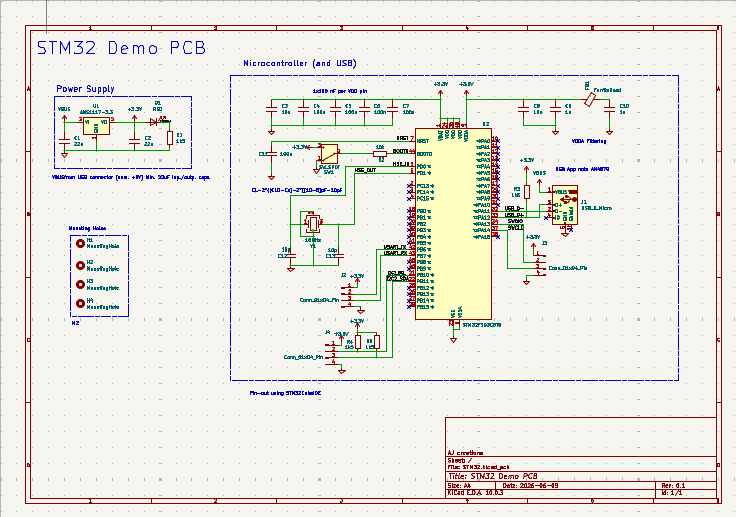

Stm32f103-dev board, from the project README
From the project README

Main components on the Stm32f103-dev board

AMS1117-3.3STM32F103C8T6

Stm32f103-dev board bill of materials (BOM)

28 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
AMS1117-3.3
U1
1
STM32F103C8T6
U2
1
16MHZ
16MHz
Y1
1
USB_B_Micro
J1
3
CONN_01X04_PIN
Conn_01x04_Pin
J2, J3, J4
1
SW_SPDT
SW1
1
RED
D1
1
FerriteBead
FB1
2
22U
22u
C1, C2
1
10U
10u
C3
5
100N
100n
C4, C5, C6, C7, C11
1
10N
10n
C8
2
1u
C9, C10
2
10P
10p
C12, C13
4
1K5
1k5
R1, R3, R4, R5
1
10K
10k
R2

Stm32f103-dev board design files

The KiCad project lives in the ajmalpro11/stm32f103-dev-board repository on GitHub; these links point at the commit this page was built from.

Stm32f103-dev board: common questions

What microcontroller does the Stm32f103-dev board use?

The Stm32f103-dev board is built around the STM32F103C8T6, from the STM32 family.

How big is the Stm32f103-dev board?

The Stm32f103-dev board measures 42 × 35.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stm32f103-dev board?

28 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stm32f103-dev board design files?

From the ajmalpro11/stm32f103-dev-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stm32f103-dev board design in my own project?

Yes, under the terms of its MIT license, which ajmalpro11 chose for the repository.

Can I test firmware for the Stm32f103-dev board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
