Ata 40 to ata 44 adapter

akuker·hw_projects·ata_40_to_ata_44_adapter/ata_40_to_ata_44_adapter.kicad_pcb

Ata 40 to ata 44 adapter PCB layout, top view — open source board by akuker
Simulate this board

About the Ata 40 to ata 44 adapter PCB

Ata 40 to ata 44 adapter is an open source PCB design by akuker, published on GitHub under the BSD-3-Clause license. It is a 2-layer board measuring 86 × 18.5 mm, with 8 components from 7 distinct parts.

By type, the board carries 4 connectors, 2 diodes and 2 resistors.

From the project

This is yet another 3.5" PATA/IDE to 2.5" PATA/IDE adapter, but done in KiCAD. The only other one I could find was in Eagle format, which is not open.

This is yet another 3.5" PATA/IDE to 2.5" PATA/IDE adapter, but done in KiCAD. The only other one I could find was in Eagle format, which is not open.

This is 100% completely untested. It might burn your house down if you try it. I'll update this page when/if it works.

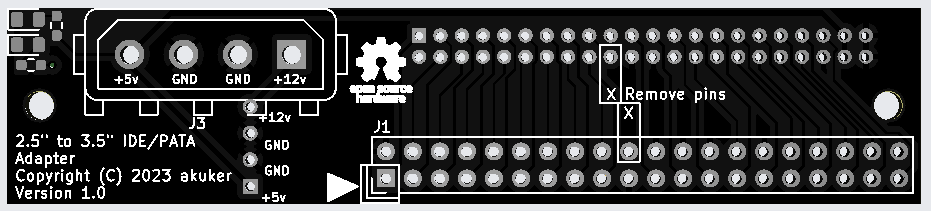

Ata 40 to ata 44 adapter, from the project README
From the project README

Ata 40 to ata 44 adapter bill of materials (BOM)

8 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Conn_02x20_Odd_Even
J1
1
Conn_02x22_Odd_Even
J2
1
350211-1
J3
1
U254-051N-4BH806
171826-4
J4
1
LED_Small_Filled
D1
1
C2286
LED_Small_Filled
D2
2
R_Small
R1, R2

Ata 40 to ata 44 adapter design files

The KiCad project lives in the akuker/hw_projects repository on GitHub; these links point at the commit this page was built from.

Ata 40 to ata 44 adapter: common questions

How big is the Ata 40 to ata 44 adapter PCB?

The Ata 40 to ata 44 adapter measures 86 × 18.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ata 40 to ata 44 adapter?

8 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Ata 40 to ata 44 adapter design files?

From the akuker/hw_projects repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Ata 40 to ata 44 adapter design in my own project?

Yes, under the terms of its BSD-3-Clause license, which akuker chose for the repository.
