Wizza-Choc-VIK

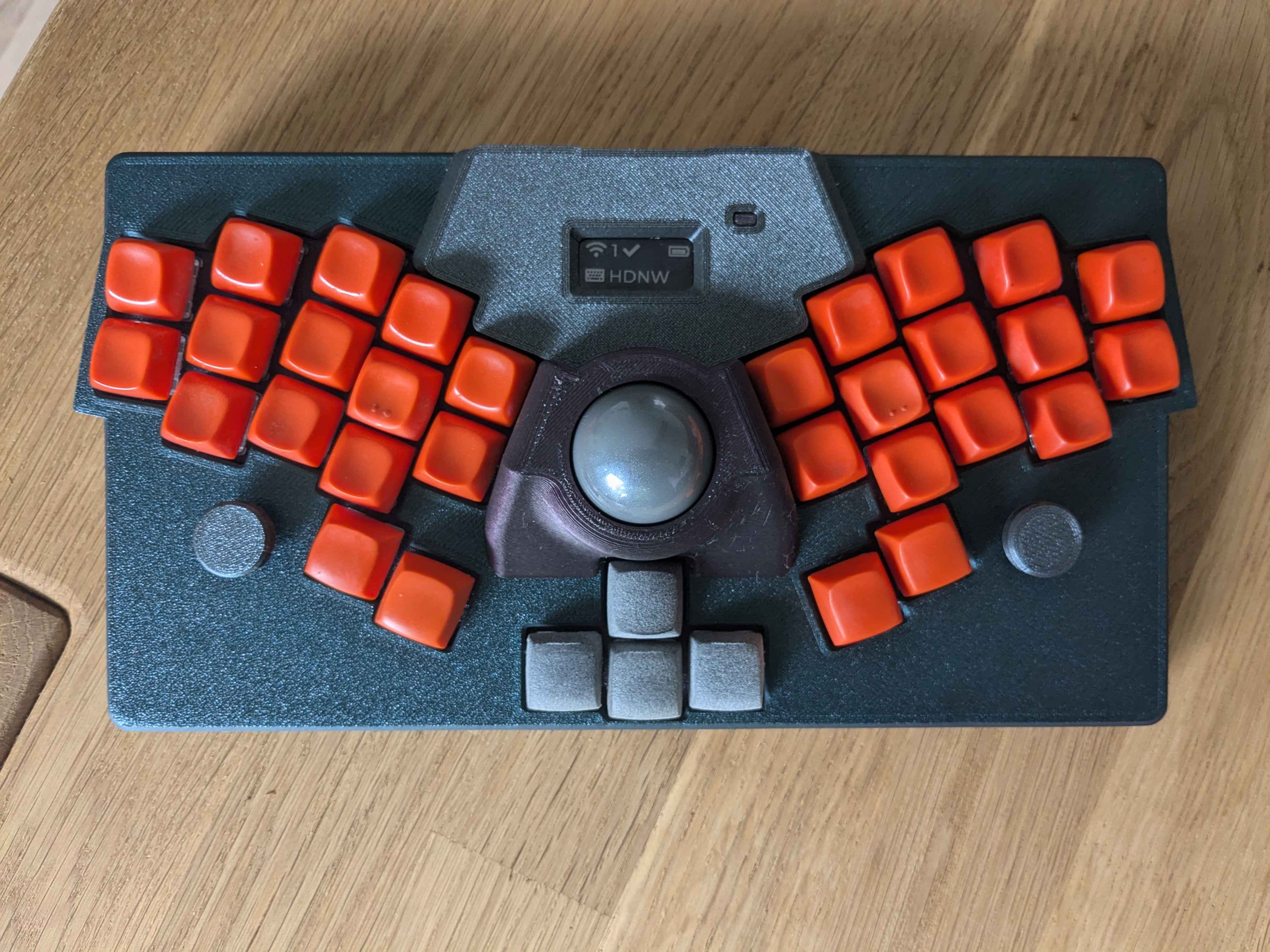

About the Wizza-Choc-VIK PCB
Wizza-Choc-VIK is an open source PCB design by AlaaSaadAbdo, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 214.5 × 80.9 mm, with 80 components from 17 distinct parts.
Other key parts include the C146366 and PMW3360DM-T2QU. By type, the board carries 36 switches, 32 diodes, 10 connectors and 2 ICs.
It belongs with the keyboards designs in this gallery.
From the project
Keyboards
All of the boards here wouldn't be possible without the help of some awesome people and their projects: - bredfield - Rae Dux - Rufous/Berylline - Sadek Baroudi of fingerpunch - Hazel - Freznel - Duckyb - Grinnie - Weteor - aki27 - chewiedies
Main components on the Wizza-Choc-VIK
Wizza-Choc-VIK bill of materials (BOM)
80 components, 17 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C146366 Helios | Helios-Nano | U3 |
| 1 | PMW3360DM-T2QU Helios | Helios-Nano | U4 |
| 1 | CONN_01X08_FEMALE AudioJack4dpb | TRRS-PJ-320A | J1 |
| 1 | AUDIOJACK4DPB AudioJack4dpb | TRRS-PJ-320A | J2 |
| 2 | CONN_01X12_FEMALE Conn_01x03_Socket | 3JST_BAT | J3, J4 |
| 1 | AUDIOJACK4DPB ~ | vik-keyboard-connector-horizontal | J5 |
| 1 | CONN_01X12_FEMALE ~ | vik-keyboard-connector-horizontal | J6 |
| 1 | CONN_01X08_FEMALE ~ | vik-keyboard-throughole | J7 |
| 1 | CONN_01X12_FEMALE ~ | vik-keyboard-throughole | J8 |
| 1 | CONN_01X08 Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J9 |
| 1 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J11 |
| 30 | SW_Push | choc_hotswap | SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +22 |
| 2 | SW_Push | ResetSW | SW11, SW12 |
| 2 | SW_SPDT | SW_CuK_OS102011MA1QN1_SPDT_Angled | SW23, SW24 |
| 2 | Rotary_Encoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm-keebio_modified | SW35, SW36 |
| 2 | PRTR5V0U2X,215 PRTR5V0U2X | SOT-143 | D1, D2 |
| 30 | B5819W SL 1N4148 | D_SOD-123 | D3, D4, D5, D6, D7, D8, D9, D10 +22 |
Wizza-Choc-VIK design files
The KiCad project lives in the AlaaSaadAbdo/battoota repository on GitHub; these links point at the commit this page was built from.
Wizza-Choc-VIK: common questions
How big is the Wizza-Choc-VIK PCB?
The Wizza-Choc-VIK measures 214.5 × 80.9 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Wizza-Choc-VIK?
80 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Wizza-Choc-VIK design files?
From the AlaaSaadAbdo/battoota repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Wizza-Choc-VIK design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
