Barghoot

AlaaSaadAbdo·battoota·boards/40keys/Barghoot/Barghoot.kicad_pcb

Barghoot PCB layout, top view — open source board by AlaaSaadAbdo
Simulate this board

About the Barghoot PCB

Barghoot is an open source PCB design by AlaaSaadAbdo, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 251.3 × 108.7 mm, with 186 components from 27 distinct parts.

Other key parts include the Elite-C, 74HC595, C146366, PMW3360DM-T2QU and DRV2605L. By type, the board carries 109 diodes, 47 switches, 8 capacitors, 7 resistors, 6 ICs and 6 connectors.

It belongs with the displays & leds and keyboards designs in this gallery.

From the project

Keyboards

This board has PCBA files. So it the following components can be assembled by the factory: - Diodes - Shift register - Down facing LEDs (ws2812b) - FPCs (For attaching Cirque or another pointing device)

BOM: - 1x Helios MCU (to get all features) - Any RP2040 other MCU with the bottom 5 pains available could also be used but that will lead to losing the top right encoder - 1x PWM3360 sensor and its lense - 2x encoders - 1x Scroll ring encoder - 1x Pimoroni Haptic feedback board (optional, needs a separate case files WIP) - 1x WaveShare 1.47inch LCD Display Module 172x320 (optional, needs a…

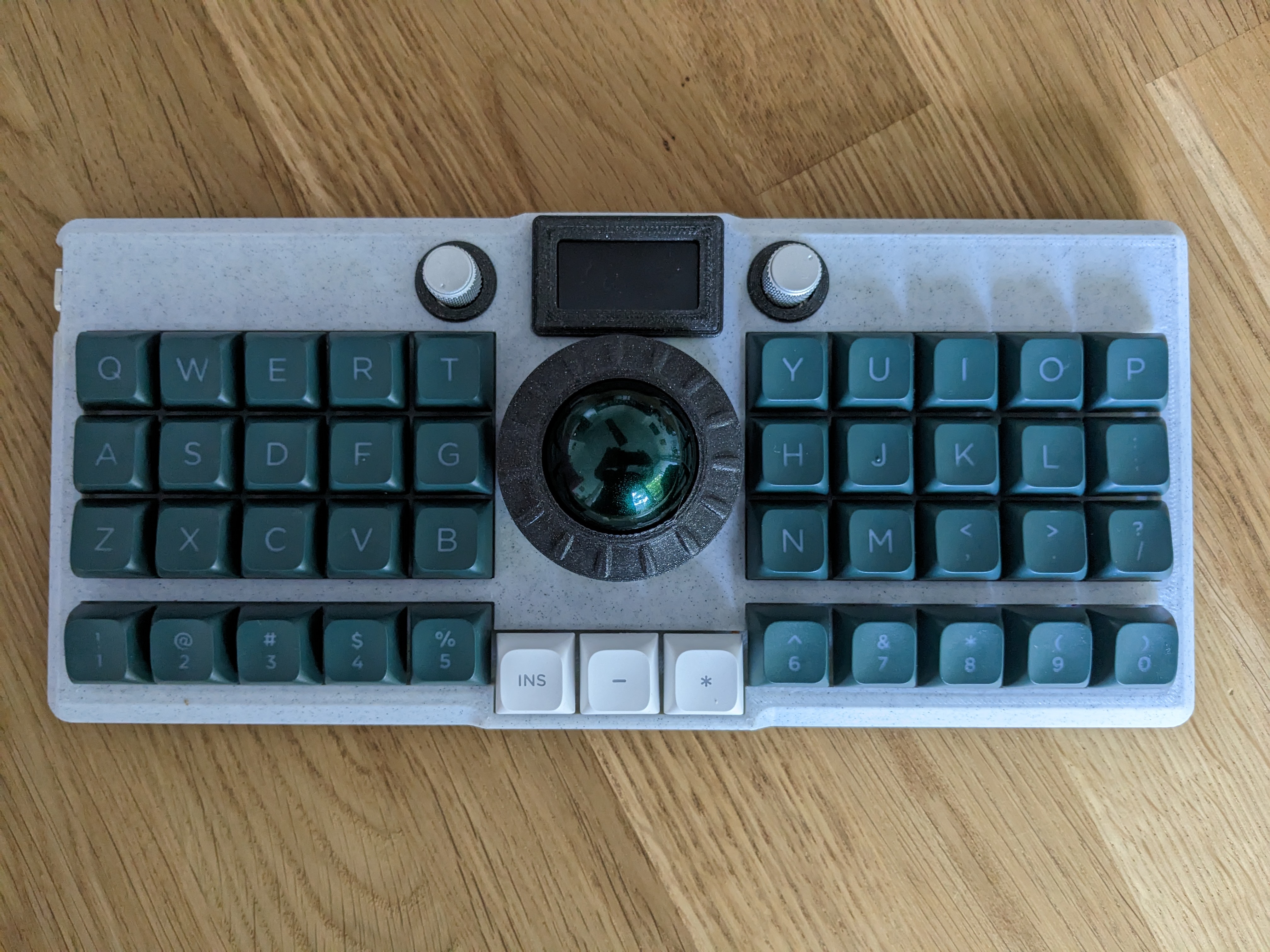

Barghoot, from the project README
From the project README

Main components on the Barghoot

Elite-C74HC595C146366PMW3360DM-T2QUDRV2605LSN74LVC1T45DRLR

Barghoot bill of materials (BOM)

186 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Elite-C
U1
1
74HC595
U2
1
C146366
TCR2EF19,LM(CT
U3
1
PMW3360DM-T2QU
U4
1
DRV2605L
U5
1
SN74LVC1T45DRLR
74LVC1T45
Texas Instruments
U6
4
CONN_01X12_FEMALE
Conn_01x12_Female
J1, J2, J3, J6
1
CONN_01X08_FEMALE
Conn_01x08_Female
J4
1
CONN_01X08_FEMALE
Conn_01x08_Female
J5
1
MF-FSMF050X-2
500mA
BOURNS
F1
2
SOLDERJUMPER_3_OPEN
SolderJumper_3_Open
JP1, JP3
43
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +35
1
SW_Push
SW35
1
RotaryEncoder
SW36
2
Rotary_Encoder_Switch
SW47, SW48
42
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +34
3
B5819W SL
1N4148
D20, D35, D36
20
XL-5050RGBC-WS2812B
WS2812B
D37, D38, D39, D93, D94, D95, D96, D97 +12
1
B5817WS
Shikues
D40
42
SK6812MINI-E
D41, D42, D44, D45, D46, D47, D48, D49 +34
Show 7 more
QtyPartRefs
1
XL-5050RGBC-WS2812B
SK6812MINI-E
D92
5
0.1UF
0.1uF
C1, C4, C5, C7, C8
1
1UF
1uF
C2
1
4.7UF
4.7uF
C3
1
CL05A475MP5NRNC
4u7
Samsung Electro-Mechanics
C6
1
39
R1
6
10K
R2, R3, R4, R5, R6, R7

Barghoot design files

The KiCad project lives in the AlaaSaadAbdo/battoota repository on GitHub; these links point at the commit this page was built from.

Barghoot: common questions

How big is the Barghoot PCB?

The Barghoot measures 251.3 × 108.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Barghoot?

186 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Barghoot design files?

From the AlaaSaadAbdo/battoota repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Barghoot design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
