P1-reader
Albert221·p1-reader·kicad/p1-reader.kicad_pcb

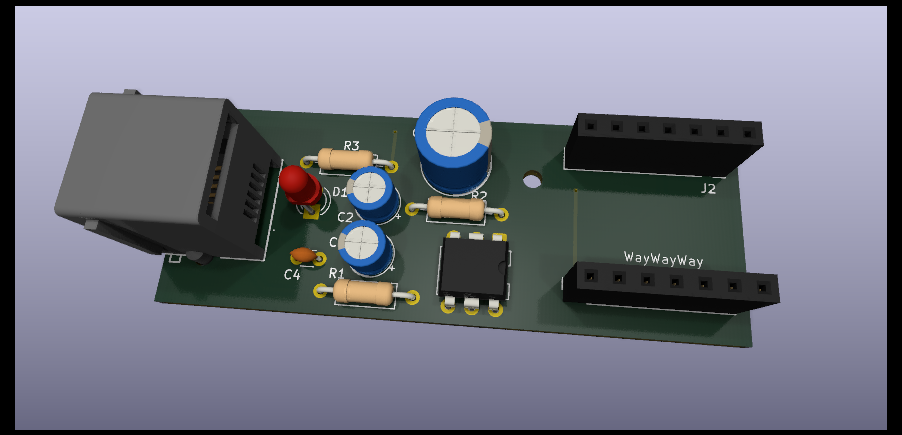

About the P1-reader PCB
P1-reader is an open source ESP32 PCB design by Albert221, published on GitHub. It is a 2-layer board measuring 63.9 × 24 mm, with 12 components from 12 distinct parts.
Its main chip is the ESP32 left, from the ESP32 family. Other key parts include the 4N35. By type, the board carries 4 capacitors, 3 connectors, 3 resistors, 1 IC and 1 diode.
It belongs with the iot & wireless designs in this gallery.
From the project
A simple device connecting a Seeed ESP32-C3 to a P1 port of the electricity meter. Based on ESPHome.
A simple device connecting a Seeed ESP32-C3 to a P1 port of the electricity meter. Based on ESPHome.
In kicad/MJ3235-66-0 directory you should put a 3D model of the RJ12 connector that you can get from here. I'm not sharing it as its license doesn't allow model file redistribution.
In PCB, there is 1K pull-up resistor between Data and 3V3 missing.
- RJ12 connector - Electrolytic capacitors 100uF, 10uF, 1uF - Ceramic capacitor 100nF - Resistors 56Ω, 100Ω, 200Ω, 1kΩ - Amber LED 3mm - Optocoupler 4N35 - 2x 1x7 header socket (for connecting to ESP, chip facing down, USB to the edge of PCB)

Main components on the P1-reader
P1-reader bill of materials (BOM)
12 components, 12 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4N35 | DIP-6_W7.62mm | U1 |
| 1 | RJ12 | MJ3235660 | J1 |
| 1 | ESP32 left | PinSocket_1x07_P2.54mm_Vertical | J2 |
| 1 | ESP32 right | PinSocket_1x07_P2.54mm_Vertical | J3 |
| 1 | Status LED | LED_D3.0mm | D1 |
| 1 | 100uF | CP_Radial_D8.0mm_P3.50mm | C1 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.00mm | C2 |
| 1 | 1uF | CP_Radial_D5.0mm_P2.50mm | C3 |
| 1 | 100nF | C_Disc_D3.0mm_W1.6mm_P2.50mm | C4 |
| 1 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 200 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | 56 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
P1-reader design files
The KiCad project lives in the Albert221/p1-reader repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/p1-reader.kicad_pcb
- Schematickicad/p1-reader.kicad_sch
P1-reader: common questions
What microcontroller does the P1-reader use?
The P1-reader is built around the ESP32 left, from the ESP32 family.
How big is the P1-reader PCB?
The P1-reader measures 63.9 × 24 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the P1-reader?
12 components, from 12 distinct parts. The full bill of materials is listed on this page.
Where can I download the P1-reader design files?
From the Albert221/p1-reader repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the P1-reader design in my own project?
The repository has no license, so all rights stay with Albert221. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the P1-reader without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
