About the Monopoly rfid PCB

Monopoly rfid is an open source AVR/Arduino PCB design by aluisioalves123, published on GitHub under the MIT license. It is a board, with 6 components from 6 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. By type, the board carries 3 connectors, 1 module, 1 buzzer and 1 resistor.

It belongs with the displays & leds designs in this gallery.

From the project

Maquininha de cartão RFID que substitui o dinheiro de papel do Monopoly. Arduino Nano, RC522, LCD I2C e bateria recarregável.

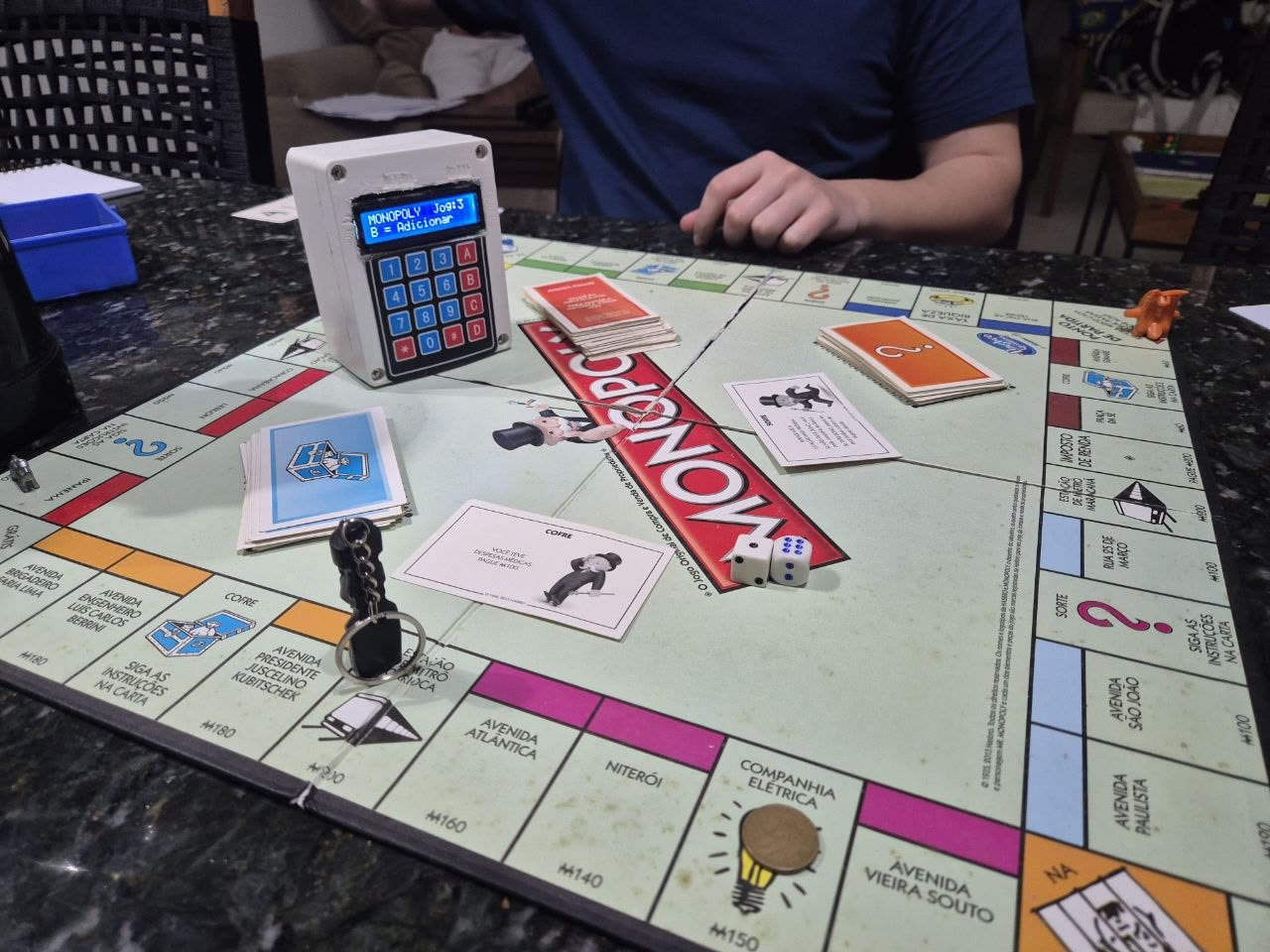

Uma maquininha de cartão que substitui o dinheiro de papel do Monopoly. Cada jogador tem um cartão RFID; a máquina guarda os saldos e faz as transações.

A versão do Monopoly que temos em casa é a antiga, com as notas de papel. Contar dinheiro e dar troco atrasa o jogo, principalmente nas transações entre jogadores, que é quando todo mundo para e espera.

A solução foi tirar o dinheiro físico da mesa: cada jogador passa a ter um cartão, e a maquininha cuida da contabilidade.
