Libreductioner PCB layout, top view — open source AVR/Arduino board by andreasb242

About the Libreductioner PCB

Libreductioner is an open source AVR/Arduino PCB design by andreasb242, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 50.2 × 73 mm, with 39 components from 21 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the ATMEGA168A-AU, PC817 and LM1117-5.0. By type, the board carries 10 resistors, 8 capacitors, 6 diodes, 5 connectors, 3 ICs and 1 module.

From the project

Induction loop sender for mower

Tested and working with Landroid Worx. All Bugs in the Board are corrected with Version 1.1, all additional, no-needed Parts are removed.

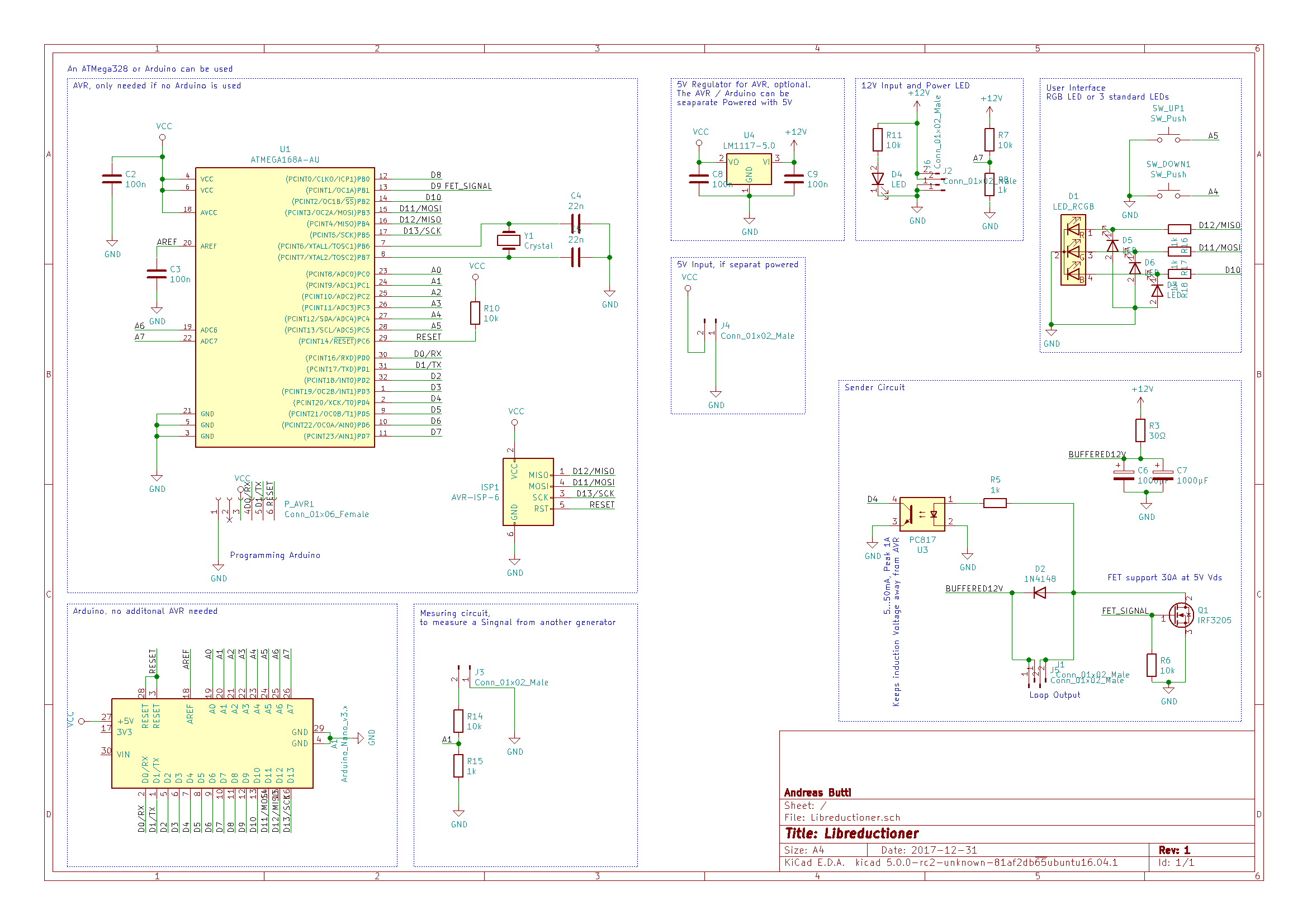

Libreductioner, from the project README
From the project README

Main components on the Libreductioner

ATMEGA168A-AUPC817LM1117-5.0Arduino_Nano_v3.x

Libreductioner bill of materials (BOM)

39 components, 21 distinct parts.

QtyPartRefs
1
ATMEGA168A-AU
U1
1
PC817
U3
1
LM1117-5.0
U4
1
Arduino_Nano_v3.x
A1
1
IRF3205
Q1
1
Crystal
Y1
2
Conn_01x02_Male
J1, J2
1
Conn_01x02_Male
J4
2
Conn_01x02_Male
J5, J6
1
AVR-ISP-6
ISP1
1
Conn_01x06_Female
P_AVR1
2
SW_Push
SW_DOWN1, SW_UP1
1
LED_RCGB
D1
1
1N4148
D2
4
LED
D3, D4, D5, D6
4
100n
C2, C3, C8, C9
2
22n
C4, C5
2
1000µF
C6, C7
1
30Ω
R3
5
1k
R5, R8, R16, R17, R18
Show 1 more
QtyPartRefs
4
10k
R6, R7, R10, R11

Libreductioner design files

The KiCad project lives in the andreasb242/Libreductioner repository on GitHub; these links point at the commit this page was built from.

Libreductioner: common questions

What microcontroller does the Libreductioner use?

The Libreductioner is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the Libreductioner PCB?

The Libreductioner measures 50.2 × 73 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Libreductioner?

39 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Libreductioner design files?

From the andreasb242/Libreductioner repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Libreductioner design in my own project?

Yes, under the terms of its GPL-2.0 license, which andreasb242 chose for the repository.

Can I test firmware for the Libreductioner without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
