Retrosix resources PCB layout, top view — open source board by angelsix

About the Retrosix resources PCB

Retrosix resources is an open source PCB design by angelsix, published on GitHub under the MIT license. It is a 2-layer board measuring 51 × 30.8 mm, with 1 components from 1 distinct parts.

It belongs with the retro computing designs in this gallery.

From the project

All open source RetroSix products, resources and files. Enjoy!

The most accurate reproduction of the AGB-E05-01 Game Boy Advance Cartridge PCB, without any restrictions.

The problem with the currently available reproduction PCBs of the AGB-E05-01 is:

- Inaccurate trace layout - Inaccurate copper pours - Inaccurate silkscreen (text re-made from simple image scan) - Inaccurate board edge pins (solder resist) - Authors claim to own Nintendo's IP and shames anyone using them (yes, even has a Hall of Shame... Lame)

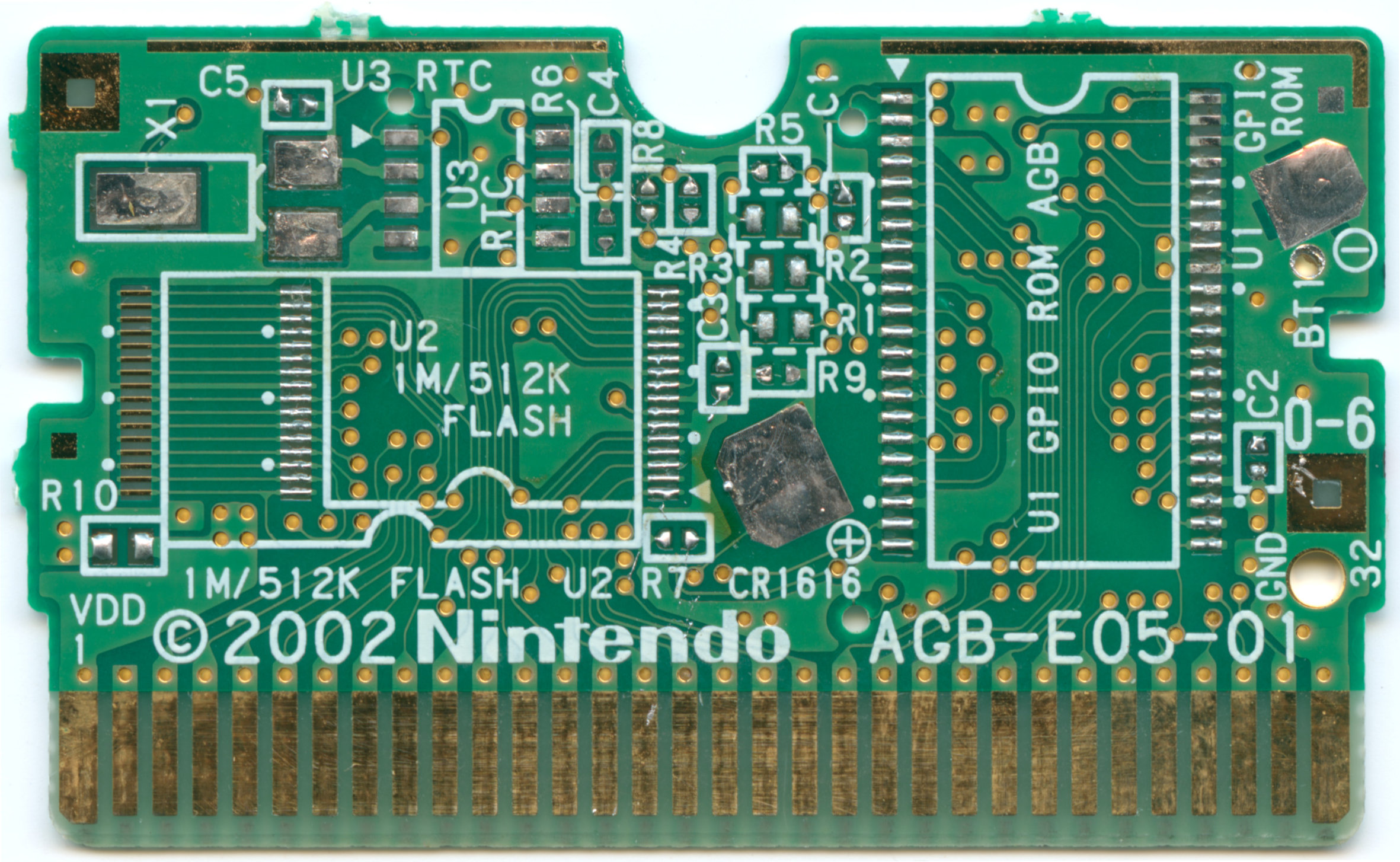

Retrosix resources, from the project README
From the project README

Retrosix resources bill of materials (BOM)

1 components, 1 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
CC0402KRX7R7BB104
0.1uF
Yageo
C1

Retrosix resources design files

The KiCad project lives in the angelsix/retrosix-resources repository on GitHub; these links point at the commit this page was built from.

Retrosix resources: common questions

How big is the Retrosix resources PCB?

The Retrosix resources measures 51 × 30.8 mm, has 2 copper layers and is 0.8 mm thick.

How many components are on the Retrosix resources?

1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Retrosix resources design files?

From the angelsix/retrosix-resources repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Retrosix resources design in my own project?

Yes, under the terms of its MIT license, which angelsix chose for the repository.
