Attiny202-dev board

AnOrdinaryUsername·attiny202-dev-board·hardware/ATtiny202_Dev_Board.kicad_pcb

Attiny202-dev board layout, top view — open source AVR/Arduino board by AnOrdinaryUsername

About the Attiny202-dev board

Attiny202-dev board is an open source AVR/Arduino PCB design by AnOrdinaryUsername, published on GitHub. It is a 2-layer board measuring 24 × 33.5 mm, with 13 components from 11 distinct parts.

Its main chip is the C616039, from the AVR/Arduino family. Other key parts include the C626098. By type, the board carries 4 connectors, 3 capacitors, 3 resistors, 2 ICs and 1 diode.

It belongs with the dev boards & breakouts and usb & debug tools designs in this gallery.

From the project

A small development board for the ATtiny202 microcontroller and my first PCB!

A small development board for the ATtiny202 microcontroller and my first PCB!

- Power-Only USB Type-C Receptacle - 3.3V LDO Voltage Regulator - Red Power On LED Indicator - UPDI Interface

Programmable using SerialUPDI (recommended) or jtag2updi.

Install avrdude following these instructions on their GitHub. Don't install through your system's package manager, or you'll get an older version of avrdude that doesn't have SerialUPDI.

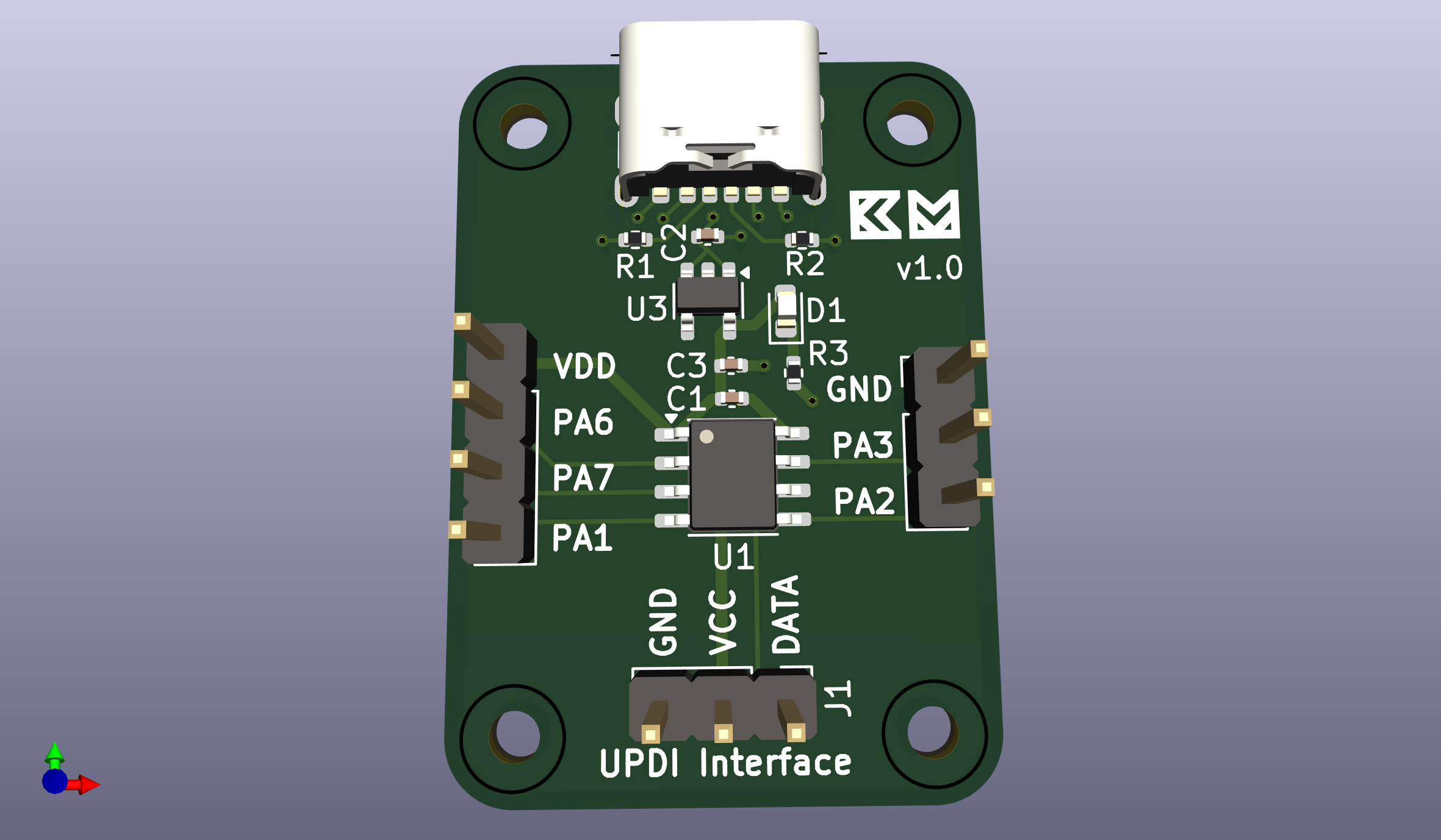

Attiny202-dev board, from the project README
From the project README

Main components on the Attiny202-dev board

C616039C626098

Attiny202-dev board bill of materials (BOM)

13 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C616039
ATtiny202-SS
U1
1
C626098
MIC5365-3.3YD5
U3
1
C5360899
UPDI
J1
1
C456012
USB_C_Receptacle_PowerOnly_6P
J2
1
C5116483
Conn_01x04_Pin
J4
1
C5360899
Conn_01x03_Pin
J5
1
C2286
RED
D1
1
C387941
100n
C1
2
C76999
1u
C2, C3
2
C138073
5k1
R1, R2
1
C106235
1k
R3

Attiny202-dev board design files

The KiCad project lives in the AnOrdinaryUsername/attiny202-dev-board repository on GitHub; these links point at the commit this page was built from.

Attiny202-dev board: common questions

What microcontroller does the Attiny202-dev board use?

The Attiny202-dev board is built around the C616039, from the AVR/Arduino family.

How big is the Attiny202-dev board?

The Attiny202-dev board measures 24 × 33.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Attiny202-dev board?

13 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Attiny202-dev board design files?

From the AnOrdinaryUsername/attiny202-dev-board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Attiny202-dev board design in my own project?

The repository has no license, so all rights stay with AnOrdinaryUsername. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Attiny202-dev board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
