Ddr5-testbed
About the Ddr5-testbed PCB
Ddr5-testbed is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 69.6 × 30 mm, with 60 components from 16 distinct parts.
Other key parts include the PCA6408APW, AT24CS01-ST, MT60B2G8HB-48B:A and TPS613221ADBVT. By type, the board carries 27 capacitors, 18 resistors, 4 ICs, 4 diodes, 4 inductors and 3 test points.
From the project
Experimental test bed for interfacing with Micron MT60B2G8HB DDR5 ICs

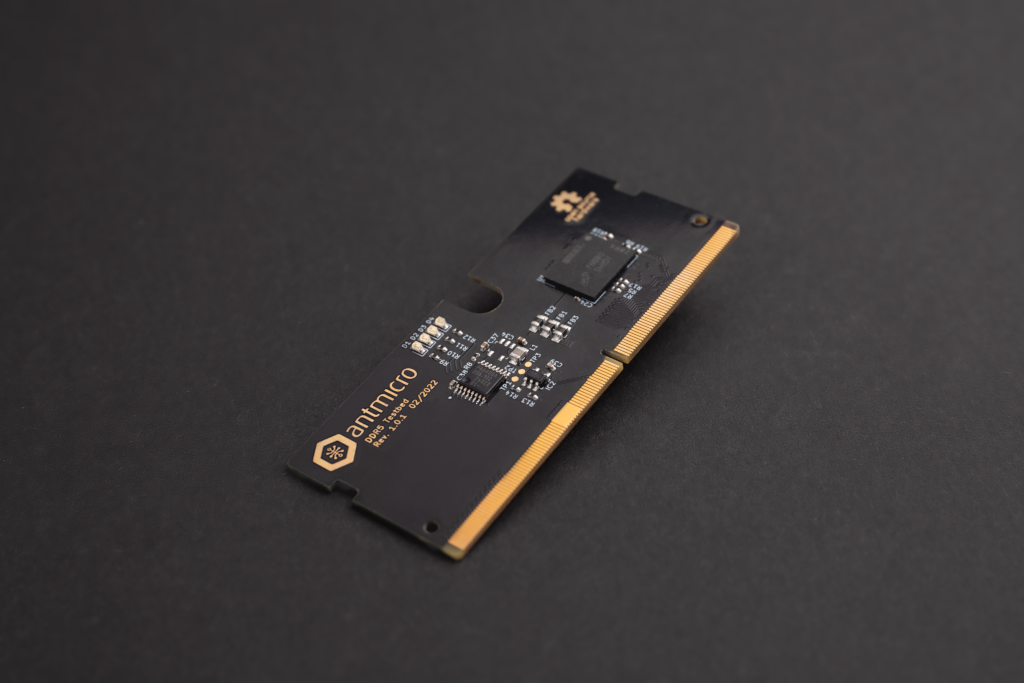

This project contains open hardware design files for an experimental test module in the mechanical form factor of SO-DIMM. The module includes a single DDR5 RAM IC with all signals break-routed in the SO-DIMM edge connector. The board has been designed to target Micron MT60B2G8HB-48B:A 16Gb DRAM. The design files were prepared in KiCad 9.x. Please note that this board is not electrically compatible with off-the-shelf SO-DIMM DDR memory modules. It is compatible with this experimental testing platform.
Main components on the Ddr5-testbed
Ddr5-testbed bill of materials (BOM)
60 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | PCA6408APW PCA6408A_TSSOP NXP | TSSOP-16_4.4x5mm_P0.65mm | IC1 |
| 1 | AT24CS01-ST AT24CS01_SOT23 Atmel | SOT-23-5 | IC2 |
| 1 | MT60B2G8HB-48B:A MT60B2G8HB-48B_A Micron Technology | BGA-82_11x9mm_Layout13x11_P0.8mm_DDR5_MO-210-AN | U1 |
| 1 | TPS613221ADBVT TPS613221A_SOT-23-5 Texas Instruments | SOT-23-5 | U2 |
| 3 | TP_1mm_SMD | TP_SMD_1mm | TP1, TP2, TP3 |
| 4 | KP-1608CGCK LED_G_0603_KP-1608CGCK Kingbright | LED_0603_1608Metric_G | D1, D2, D3, D4 |
| 3 | 742792022 FB_220Z_1.5A_WE-CBF_0805 Würth Elektronik | FB_0805_2012Metric | FB1, FB2, FB3 |
| 1 | 1285AS-H-2R2M=P2 L_2.2u_1.5A_0806 Murata | L_0806_2016Metric | L1 |
| 23 | CC0201KRX6S5BB104 C_100n_0201 YAGEO | C_0201 | C1, C2, C3, C4, C5, C6, C7, C8 +15 |
| 2 | GRM155R61A475MEAAD C_4u7_0402 Murata | C_0402_1005Metric | C34, C37 |
| 2 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C38, C39 |
| 2 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R1, R5 |
| 8 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R2, R4, R7, R15, R16, R17, R18, R19 |
| 3 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R3, R13, R14 |
| 1 | CR0402-FX-2400GLF R_240R_0402 Bourns | R_0402_1005Metric | R6 |
| 4 | CR0402-FX-2200GLF R_220R_0402 Bourns | R_0402_1005Metric | R9, R10, R11, R12 |
Ddr5-testbed design files
The KiCad project lives in the antmicro/ddr5-testbed repository on GitHub; these links point at the commit this page was built from.
- Layoutddr5-testbed.kicad_pcb
- Schematicddr5-testbed.kicad_sch
Ddr5-testbed: common questions
How big is the Ddr5-testbed PCB?
The Ddr5-testbed measures 69.6 × 30 mm, has 6 copper layers and is 1.258 mm thick.
How many components are on the Ddr5-testbed?
60 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ddr5-testbed design files?
From the antmicro/ddr5-testbed repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ddr5-testbed design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
