Job pcie switch expansion
About the Job pcie switch expansion PCB
Job pcie switch expansion is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a 6-layer board measuring 100 × 60 mm, with 297 components from 54 distinct parts.
Other key parts include the AP22615AWU-7, NTS0302JKZ, PI7C9X3G606GPCFCAEX, 93AA66C-I/SN and SY75602BTWL-TR. By type, the board carries 146 resistors, 93 capacitors, 15 diodes, 14 ICs, 10 transistors and 5 connectors.
From the project

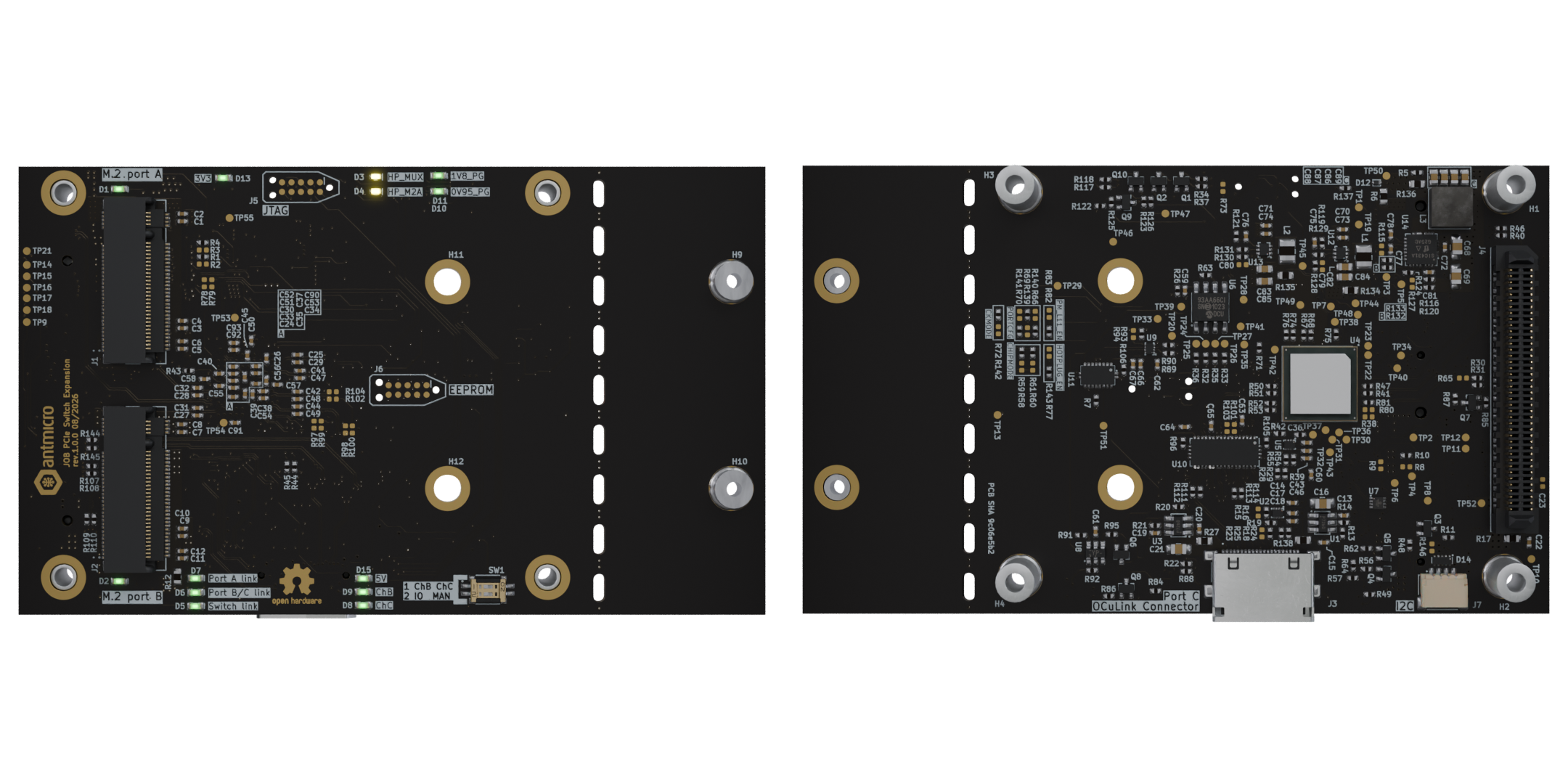

This project contains open hardware PCB design files for an expansion board compatible with Antmicro's Baseboard for Jetson Orin. The design includes a PCIe 3.0 switch that expands the number of available PCIe ports by connecting multiple PCIe endpoint devices to a single PCIe ro
This project contains open hardware PCB design files for an expansion board compatible with Antmicro's Baseboard for Jetson Orin. The design includes a PCIe 3.0 switch that expands the number of available PCIe ports by connecting multiple PCIe endpoint devices to a single PCIe root complex. The expansion board includes an OCuLink Connector and two M.2 (key-M) slots intended for connecting additional storage solutions with optional RAID support. Both M.2 slots support 2280 and 2242 M.2 NVMe drives. The design files were prepared in KiCad 10.x.
Main components on the Job pcie switch expansion
Job pcie switch expansion bill of materials (BOM)
297 components, 54 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AP22615AWU-7 ~ Diodes Incorporated | TSOT23-6 | U1, U3 |
| 3 | NTS0302JKZ NXP | X2SON8_1.4x1x0.32mm_P0.35mm | U2, U5, U9 |
| 1 | PI7C9X3G606GPCFCAEX PI7C9X3G606GP Diodes Incorporated | BGA-144_10x10mm_Layout12x12_P0.8mm | U4 |
| 1 | 93AA66C-I/SN 93AA66C_SOIC Microchip Technology | SOIC-8_3.9x4.9x1.75mm_P1.27mm | U6 |
| 1 | SY75602BTWL-TR Microchip Technology | VDFN-8_1.6x1.4mm_P0.4mm | U7 |
| 1 | 74LVC1G157-Q100H 74LVC1G157-Q100H_SOT457 Nexperia | SC-74-6_1.5x2.9mm_P0.95mm | U8 |
| 1 | TMUXHS4412RUAR Texas Instruments | WQFN-42-1EP_3.5x9mm_P0.5mm | U10 |
| 1 | CBTL02043ABQ,115 CBTL02043ABQ Nexperia | DHVQFN-20-1EP_2.5x4.5_P0.5mm | U11 |
| 2 | TPS62A06DRLR Texas Instruments | SOT-563 | U12, U13 |
| 1 | SIC431AED-T1-GE3 Vishay | MLP44-24L_4x4x0.75mm | U14 |
| 1 | Mech_M2_2280_H2.5mm | Mech_M2_2280_H2.5mm | A1 |
| 1 | Mech_M2_2242_H2.5mm | Mech_M2_2242_H2.5mm | A2 |
| 10 | BSS138PW,115 Nexperia | SC70-3 | Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +2 |
| 2 | 1-2199230-6 Bus_M.2_1-2199230-6 TE Connectivity | Bus_M.2_Socket_Key_M_TE_1-2199230-6 | J1, J2 |
| 1 | G14A421211112HR OCuLink_x4_Amphenol_G14A421211112HR Amphenol | Amphenol_G14A421211112HR | J3 |
| 1 | ERM8-040-05.0-L-DV-K-TR Plug_Samtec_ERM8_2x40_ERM8-040-05.0-L-DV-K-TR Samtec | Conn_Plug_Samtec_ERM8_2x40_ERM8-040-05.0-L-DV-K-TR | J4 |
| 1 | SM04B-SRSS-TB(LF)(SN) JST_SH_1x4_SM04B-SRSS-TB-LF-SN JST Automotive Connectors | Conn_JST_SH_1x4_SM04B-SRSS-TB-LF-SN | J7 |
| 4 | 9774100151R Spacer_Drill3.7mm_H10mm_9774100151R Würth Elektronik | Spacer_Drill3.7mm_H10mm_9774100151R | H1, H2, H3, H4 |
| 4 | 9774025151R Spacer_Drill3.7mm_H2.5mm_9774025151R Würth Elektronik | Spacer_Drill3.7mm_H2.5mm_9774025151R | H9, H10, H11, H12 |
| 1 | CVS-02B SW_CVS-02B Nidec Components | SW_DIP_SPSTx02_Slide_Copal_CVS-02xB_W5.9mm_P1mm | SW1 |
Show 34 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 11 | KP-1608CGCK LED_G_0603_KP-1608CGCK Kingbright | LED_0603_1608Metric_G | D1, D2, D5, D6, D7, D8, D9, D10 +3 |
| 2 | VLMY1500-GS08 LED_Y_0402_VLMY1500-GS08 Vishay | LED_0402_1005Metric_Y | D3, D4 |
| 1 | ESD9X5.0ST5G ON Semiconductor | SOD-923 | D12 |
| 1 | PUSB3F96X PUSB3F96X_PASS Nexperia | Nexperia_DFN-10_2.5x1mm_P0.5mm | D14 |
| 2 | SRP2510TMA-R22M L_220n_5.9A_1008 Bourns | L_1008_2520Metric | L1, L2 |
| 1 | SRP5030CA-R56M L_560n_17.7A_Bourns-SRP5030CA Bourns | L_Bourns-SRP5030CA | L3 |
| 12 | CC0402MRX5R5BB106 C_10u_0402 YAGEO | C_0402_1005Metric | C1, C3, C5, C7, C9, C11, C13, C19 +4 |
| 18 | C1005X6S1A105K050BC C_1u_0402 TDK | C_0402_1005Metric | C2, C4, C6, C8, C10, C12, C17, C22 +10 |
| 34 | GRM155R61H104KE14D C_100n_0402 Murata | C_0402_1005Metric | C14, C15, C18, C20, C24, C26, C30, C33 +26 |
| 2 | GRM21BR60J107ME15L C_100u_0805 Murata | C_0805_2012Metric | C16, C21 |
| 12 | CC0402KRX5R6BB224 C_220n_0402 YAGEO | C_0402_1005Metric | C25, C27, C28, C29, C31, C32, C41, C42 +4 |
| 3 | GRM155C61E475ME15J C_4u7_25V_0402 Murata | C_0402_1005Metric | C50, C58, C78 |
| 2 | CL21A226MAYNNNE C_22u_25V_0805 Samsung Electro-Mechanics | C_0805_2012Metric | C68, C69 |
| 2 | C0402C121J5GACTU C_120p_100V_0402 KEMET | C_0402_1005Metric | C79, C80 |
| 2 | GRM188R60J476ME15D C_47u_0603 Murata | C_0603_1608Metric | C82, C84 |
| 2 | GRM188R60J226MEA0D C_22u_0603 Murata | C_0603_1608Metric | C83, C85 |
| 4 | CL10A226MO7JZNC C_22u_16V_0603 Samsung Electro-Mechanics | C_0603_1608Metric_EIA | C86, C87, C88, C89 |
| 43 | ERJ2GE0R00X R_0R_0402 Panasonic | R_0402_1005Metric | R1, R7, R18, R19, R25, R26, R28, R29 +35 |
| 36 | CR0402-FX-1002GLF R_10k_0402 Bourns | R_0402_1005Metric | R2, R3, R4, R8, R9, R10, R13, R15 +28 |
| 12 | CR0402-FX-4700GLF R_470R_0402 Bourns | R_0402_1005Metric | R5, R11, R34, R37, R49, R57, R64, R84 +4 |
| 8 | PMR03EZPJ000 R_0R_22.4A_0603 ROHM Semiconductor | R_0603_1608Metric | R6, R12, R17, R27, R134, R135, R136, R138 |
| 2 | CR0402-FX-5601GLF R_5k6_0402 Bourns | R_0402_1005Metric | R14, R21 |
| 3 | CR0402-FX-1001GLF R_1k_0402 Bourns | R_0402_1005Metric | R22, R23, R24 |
| 16 | CR0402-FX-5101GLF R_5k1_0402 Bourns | R_0402_1005Metric | R38, R39, R42, R58, R60, R69, R71, R74 +8 |
| 1 | CR0402-FX-2000GLF R_200R_0402 Bourns | R_0402_1005Metric | R43 |
| 11 | CR0402-FX-3300GLF R_330R_0402 Bourns | R_0402_1005Metric | R59, R61, R66, R67, R68, R70, R72, R75 +3 |
| 2 | CR0402-FX-4701GLF R_4k7_0402 Bourns | R_0402_1005Metric | R96, R105 |
| 3 | CR0402-FX-4993GLF R_499k_0402 Bourns | R_0402_1005Metric | R115, R116, R120 |
| 2 | CR0402-FX-1501GLF R_1k5_0402 Bourns | R_0402_1005Metric | R119, R121 |
| 2 | CR0402-FX-33R0GLF R_33R_0402 Bourns | R_0402_1005Metric | R125, R126 |
| 1 | CR0402-FX-5902GLF R_59k_0402 Bourns | R_0402_1005Metric | R128 |
| 2 | CR0402-FX-1003GLF R_100k_0.1%_0402 Bourns | R_0402_1005Metric | R129, R131 |
| 1 | CR0402-FX-2003GLF R_200k_0402 Bourns | R_0402_1005Metric | R130 |
| 1 | CR0402-FX-4532GLF R_45k3_0402 Bourns | R_0402_1005Metric | R132 |
Job pcie switch expansion design files
The KiCad project lives in the antmicro/job-pcie-switch-expansion repository on GitHub; these links point at the commit this page was built from.
Job pcie switch expansion: common questions
How big is the Job pcie switch expansion PCB?
The Job pcie switch expansion measures 100 × 60 mm, has 6 copper layers and is 1.63 mm thick.
How many components are on the Job pcie switch expansion?
297 components, from 54 distinct parts. The full bill of materials is listed on this page.
Where can I download the Job pcie switch expansion design files?
From the antmicro/job-pcie-switch-expansion repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Job pcie switch expansion design in my own project?
Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
