About the Rdimm ddr5-tester PCB

Rdimm ddr5-tester is an open source PCB design by antmicro, published on GitHub under the Apache-2.0 license. It is a board, with 18 components from 6 distinct parts.

Other key parts include the XCAU25P-2FFVB676I. By type, the board carries 11 resistors, 5 capacitors, 1 IC and 1 crystal.

It belongs with the usb & debug tools designs in this gallery.

From the project

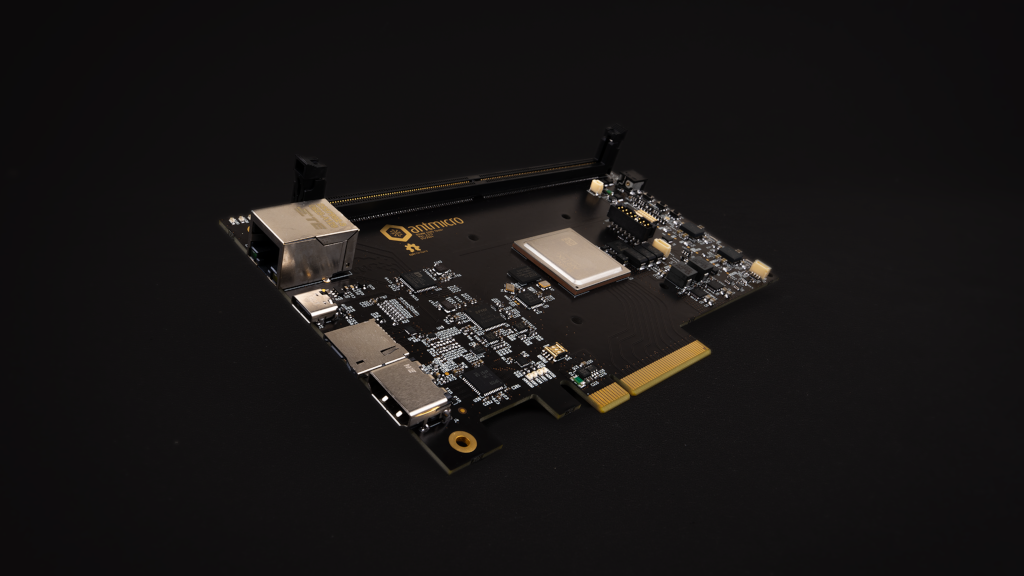

FPGA-based DRAM tester supporting RDIMM DDR5 memories

This project contains open hardware KiCad design files for an experimental, FPGA-based platform for interfacing with RDIMM DDR5 RAM modules. The latest design revision (Rev.2.x) features an AMD Artix UltraScale Plus FPGA. The design files are now being verified with a small series of prototypes. The previous revision (Rev.1.x) was built around an AMD (Xilinx) Kintex-7 FPGA and the design files were verified with prototypes. This hardware DDR5 testing platform integrates with the open source Rowhammer Tester project.

Main components on the Rdimm ddr5-tester

XCAU25P-2FFVB676I

Rdimm ddr5-tester bill of materials (BOM)

18 components, 6 distinct parts.

Qty	Part	Footprint	Refs
1	XCAU25P-2FFVB676I AMD-Xilinx	BGA-676_27x27mm_Layout26x26_P1x1mm_FFVB676	U34
1	SG3225VAN_100.000000M-KEGA3 Oscillator_100MHz_SG3225VAN Epson	Oscillator_SMD_Epson_SG3225EEN_3.2x2.5x1.2mm	Y3
5	GRM155R61H104KE14D C_100n_0402 Murata	C_0402_1005Metric	C164, C333, C334, C335, C336
4	CR0402-FX-2400GLF R_240R_0402 Bourns	R_0402_1005Metric_EIA	R133, R134, R180, R182
2	CR0402-FX-1001GLF R_1k_0402 Bourns	R_0402_1005Metric	R253, R254
5	ERJ2GE0R00X R_0R_0402 Panasonic	R_0402_1005Metric	R255, R257, R258, R259, R260

Rdimm ddr5-tester design files

The KiCad project lives in the antmicro/rdimm-ddr5-tester repository on GitHub; these links point at the commit this page was built from.

Schematicfpga-hp-banks.kicad_sch

Rdimm ddr5-tester: common questions

How many components are on the Rdimm ddr5-tester?

18 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rdimm ddr5-tester design files?

From the antmicro/rdimm-ddr5-tester repository on GitHub, which has the schematic; the links under Design files point to each one.

Can I use the Rdimm ddr5-tester design in my own project?

Yes, under the terms of its Apache-2.0 license, which antmicro chose for the repository.
