MsiSDR-V2
About the MsiSDR-V2 PCB

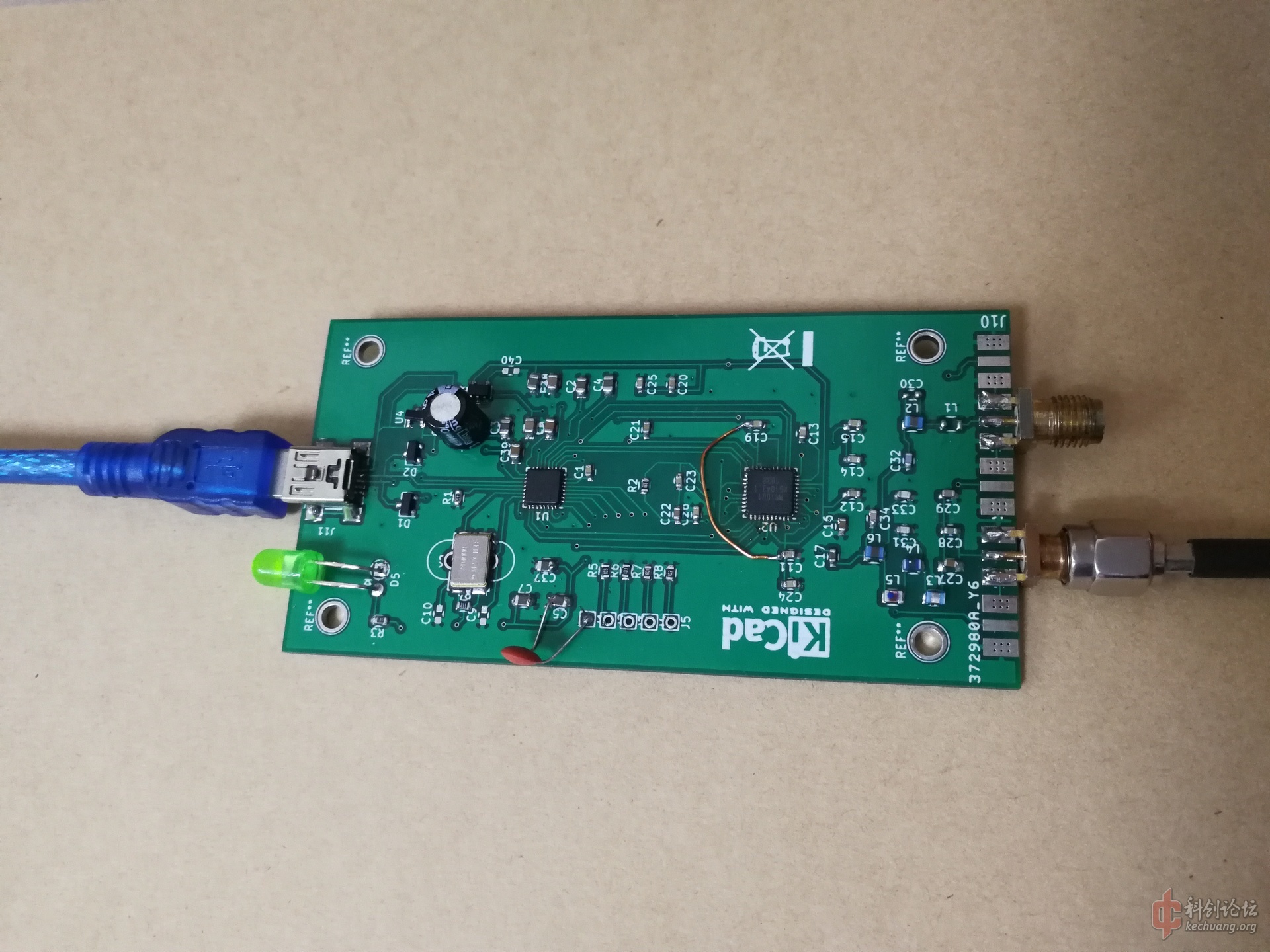

MsiSDR-V2 is an open source PCB design by antonjan, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 46.3 × 90.7 mm, with 76 components from 42 distinct parts.
Other key parts include the msi2500, msi001, RT9193-28 and AP7313-30SAG. By type, the board carries 42 capacitors, 11 connectors, 8 resistors, 6 inductors, 4 ICs and 3 diodes.
It belongs with the rf & radio designs in this gallery.
From the project
This is the file of a new Miri-SDR
this is an Software Define Radio receiver PCB project base on msi2500 and msi001. use kicad to view it
这是一个基于msi2500 和 msi001的软件无线电PCB工程项目， 使用kiCAD浏览此工程
Send gerbar files to PCB factory . you'd better to use SMT
Main components on the MsiSDR-V2
MsiSDR-V2 bill of materials (BOM)
76 components, 42 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | msi2500 | QFN-32-1EP_5x5mm_Pitch0.5mm | U1 |
| 1 | msi001 | QFN-40-1EP_6x6mm_Pitch0.5mm | U2 |
| 1 | RT9193-28 | SOT-23-5 | U3 |
| 1 | AP7313-30SAG | SOT-23 | U4 |
| 1 | 24MHz | Crystal_HC50_Vertical | Y1 |
| 1 | 24MHZ | Crystal_SMD_7050-4pin_7.0x5.0mm | Y2 |
| 1 | VCC_GPIO | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J1 |
| 1 | GPIO0 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J2 |
| 1 | GPIO1 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J3 |
| 1 | GPIO2 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J4 |
| 1 | GPIO3 | Pin_d0.7mm_L6.5mm_W1.8mm_FlatFork | J5 |
| 1 | SMA_0_30MHZ | SMA_OPL_EM | J6 |
| 1 | SMA_30_60MHZ | SMA_OPL_EM | J7 |
| 1 | SMA_VHF2 | SMA_OPL_EMPTYHEAD | J8 |
| 1 | SMA_UHF | SMA_OPL_EMPTYHEAD | J9 |
| 1 | SMA_VHF1 | SMA_OPL_EMPTYHEAD | J10 |
| 1 | USB_OTG | USB_Mini-B | J11 |
| 2 | BAV99LT1G | SOT-23 | D1, D2 |
| 1 | LED | D_DO-35_SOD27_P2.54mm_Vertical_AnodeUp | D5 |
| 1 | 220nH | L_0805 | L1 |
Show 22 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | 330nH | L_0805 | L2, L3, L6 |
| 1 | 270nH | L_0805 | L4 |
| 1 | 150nH | L_0805 | L5 |
| 13 | 10nF | C_0603 | C1, C11, C12, C13, C14, C15, C19, C20 +5 |
| 8 | 10uF | C_0805 | C2, C3, C4, C5, C7, C36, C37, C38 |
| 5 | 1uF | C_0805 | C6, C8, C18, C39, C41 |
| 2 | 18pF | C_0603 | C9, C10 |
| 2 | 100nF | C_0603 | C16, C17 |
| 1 | 6800pF | C_0603 | C22 |
| 1 | 33nF | C_0603 | C23 |
| 1 | 470nF | C_0805 | C27 |
| 1 | 1nF | C_0603 | C28 |
| 2 | 56pF | C_0603 | C29, C34 |
| 1 | 3.9pF | C_0603 | C30 |
| 2 | 160pF | C_0603 | C31, C33 |
| 1 | 39pF | C_0603 | C32 |
| 1 | 100uF | CP_Radial_D5.0mm_P2.50mm | C35 |
| 1 | 22nF | C_0603 | C40 |
| 1 | 510R | R_0603 | R1 |
| 1 | 390R | R_0603 | R2 |
| 1 | 512 | R_0603 | R3 |
| 5 | 10K | R_0603 | R4, R5, R6, R7, R8 |
MsiSDR-V2 design files
The KiCad project lives in the antonjan/msiSDR-V2 repository on GitHub; these links point at the commit this page was built from.
- Layoutmsisdr.kicad_pcb
MsiSDR-V2: common questions
How big is the MsiSDR-V2 PCB?
The MsiSDR-V2 measures 46.3 × 90.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the MsiSDR-V2?
76 components, from 42 distinct parts. The full bill of materials is listed on this page.
Where can I download the MsiSDR-V2 design files?
From the antonjan/msiSDR-V2 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the MsiSDR-V2 design in my own project?
Yes, under the terms of its GPL-3.0 license, which antonjan chose for the repository.
