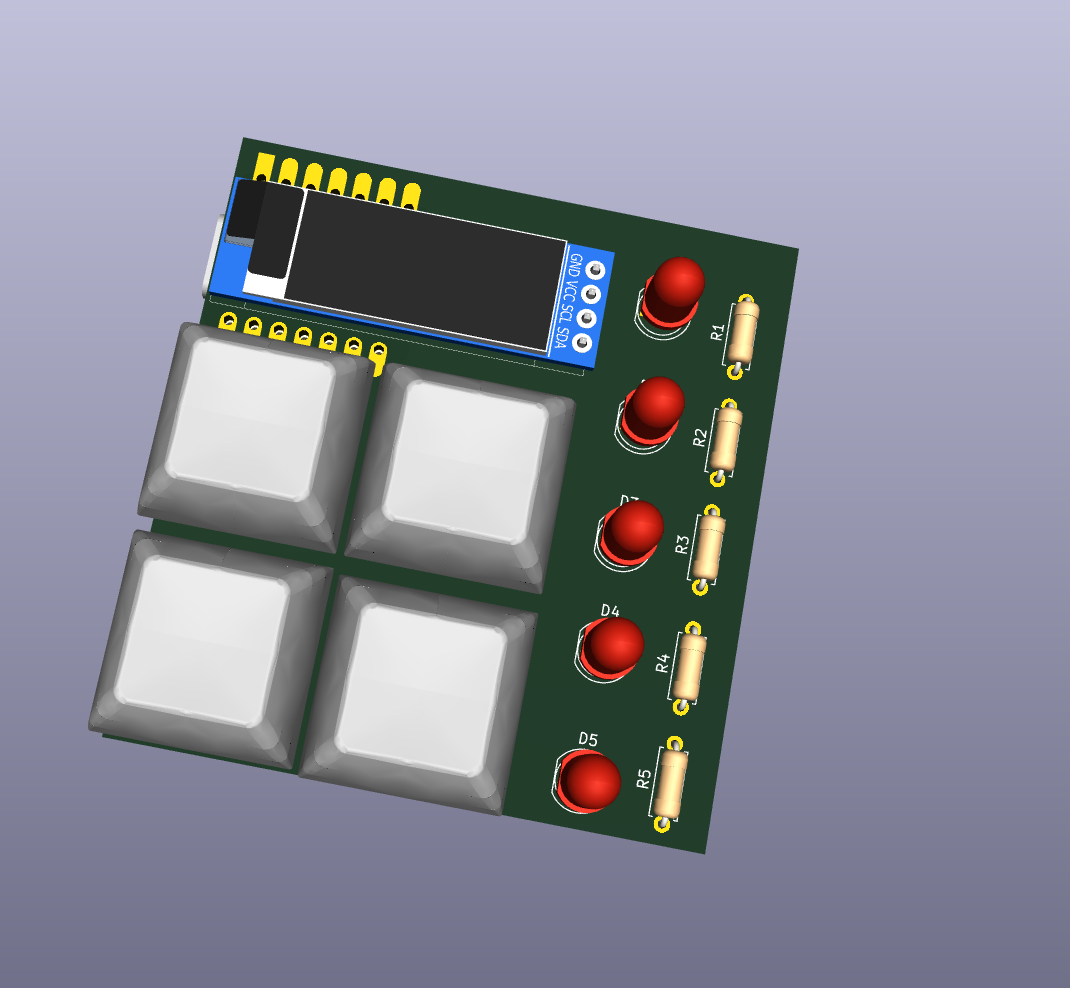

Stardance pathfinder PCB layout, top view — open source board by Anycircle11139s

About the Stardance pathfinder PCB

Stardance pathfinder is an open source PCB design by Anycircle11139s, published on GitHub under the MIT license. It is a 2-layer board measuring 58 × 69 mm, with 16 components from 5 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 5 diodes, 5 resistors, 4 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

A small but extremely cool pathfinder project with 4 buttons and 5 LEDs, built for the Hack Club Stardance YSWS.

A small but extremely cool pathfinder project with 4 buttons and 5 LEDs, built for the Hack Club Stardance YSWS.

By: Darsh Shah (@Anycircle11139s) or @NotALarp on slack

I built this because I found the pathfinder tutorial on Stasis and really wanted to create my own, custom version. It has 4 Cherry MX style switches and 5 LEDs, and is powered by a Xiao RP2040 microcontroller. I can't wait to build it IRL!

Stardance pathfinder, from the project README
From the project README

Main components on the Stardance pathfinder

Stardance pathfinder bill of materials (BOM)

16 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
Conn_01x04_Socket
J1
4
SW_Push
SW1, SW2, SW3, SW4
5
LED
D1, D2, D3, D4, D5
5
100
R1, R2, R3, R4, R5

Stardance pathfinder design files

The KiCad project lives in the Anycircle11139s/stardance-pathfinder repository on GitHub; these links point at the commit this page was built from.

Stardance pathfinder: common questions

How big is the Stardance pathfinder PCB?

The Stardance pathfinder measures 58 × 69 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Stardance pathfinder?

16 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Stardance pathfinder design files?

From the Anycircle11139s/stardance-pathfinder repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Stardance pathfinder design in my own project?

Yes, under the terms of its MIT license, which Anycircle11139s chose for the repository.
