Eink cam

ANYplays77·Eink-cam·EINK/PCB/EINK.kicad_pcb

Eink cam PCB layout, top view — open source board by ANYplays77

About the Eink cam PCB

Eink cam is an open source PCB design by ANYplays77, published on GitHub. It is a 2-layer board measuring 48.3 × 22.9 mm, with 3 components from 3 distinct parts.

Other key parts include the 102010428_TH. By type, the board carries 1 IC, 1 connector and 1 switch.

It belongs with the displays & leds, retro computing and power & battery designs in this gallery.

From the project

I am building a custom retro E-Ink digital camera from scratch!

An open-source, retro-inspired E-Ink digital camera built with an ESP32-S3, a 3.7" E-Paper display, a custom PCB, and a 3D-printed transparent SLA resin enclosure.

- Retro Monochrome Aesthetics: High-contrast 3.7" E-Paper display for previewing and viewing captured shots. - ESP32-S3 Powered: Fast image capture and processing with the Seeed Studio XIAO ESP32-S3 Sense. - Real-time Image Dithering: Converts camera frames into crisp 1-bit / grayscale dithered images (Floyd-Steinberg / Atkinson algorithms). - Custom PCB Design: Dedicated KiCad breakout PCB for clean wiring and compact component…

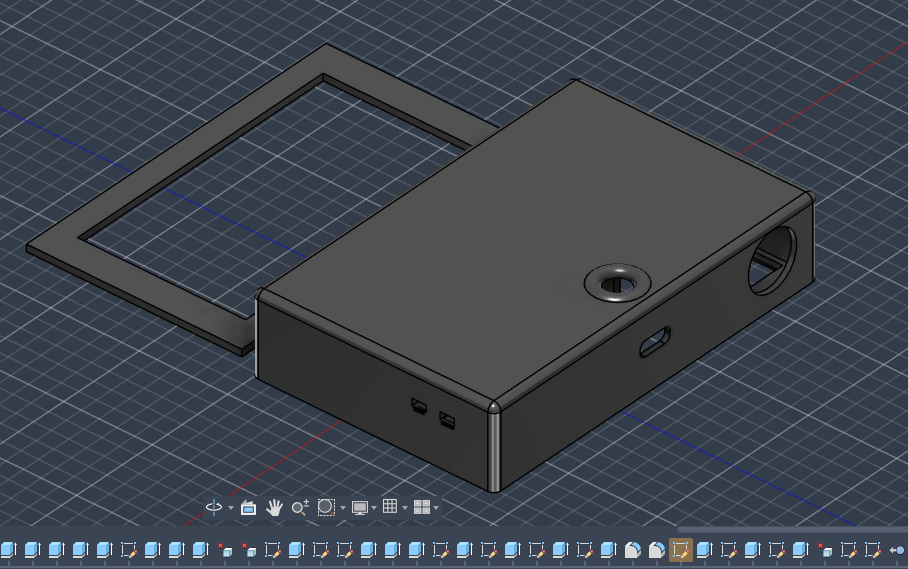

Eink cam, from the project README
From the project README

Main components on the Eink cam

102010428_TH

Eink cam bill of materials (BOM)

3 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
102010428_TH
U1
1
Conn_01x08_Pin
J1
1
SW_Push
SW1

Eink cam design files

The KiCad project lives in the ANYplays77/Eink-cam repository on GitHub; these links point at the commit this page was built from.

Eink cam: common questions

How big is the Eink cam PCB?

The Eink cam measures 48.3 × 22.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Eink cam?

3 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Eink cam design files?

From the ANYplays77/Eink-cam repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Eink cam design in my own project?

The repository has no license, so all rights stay with ANYplays77. Use it as a reference, and ask the author before reusing the design.
