Tinkercode extension generator

apauaie·tinkercode_extension_generator·lekirbot PCB/lekirbotv2/lekirbotv2.kicad_pcb

Tinkercode extension generator PCB layout, top view — open source AVR/Arduino board by apauaie
Simulate this board

About the Tinkercode extension generator PCB

Tinkercode extension generator is an open source AVR/Arduino PCB design by apauaie, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 104.1 × 155.6 mm, with 46 components from 18 distinct parts.

Its main chip is the ARDUINO_NANO, from the AVR/Arduino family. Other key parts include the 7404D, TB6612FNG and C88224. By type, the board carries 17 resistors, 7 ICs, 6 diodes, 4 modules, 4 capacitors and 3 connectors.

It belongs with the robotics & motion designs in this gallery, and the repository also holds 1 earlier revision of it.

From the project

Tinkercode Extension Generator

These files are generator files to create extension zip file for use with Tinkercode apps. It will generate a standard extension with same pin connection as Lekirbot. Please refer to the Lekirbot PCB. Content of this github is divided into two: 1. PCB Design with KICAD for LekirBot. It is a simple line following robot with 5 QRE1113 sensors, 2 servo connections, 1 ultrasonic connection, built in TB6612FNG Motor Driver 2. TinkerCode Block Extension Generator to be use with Tinkercode apps from tinkercode.my.

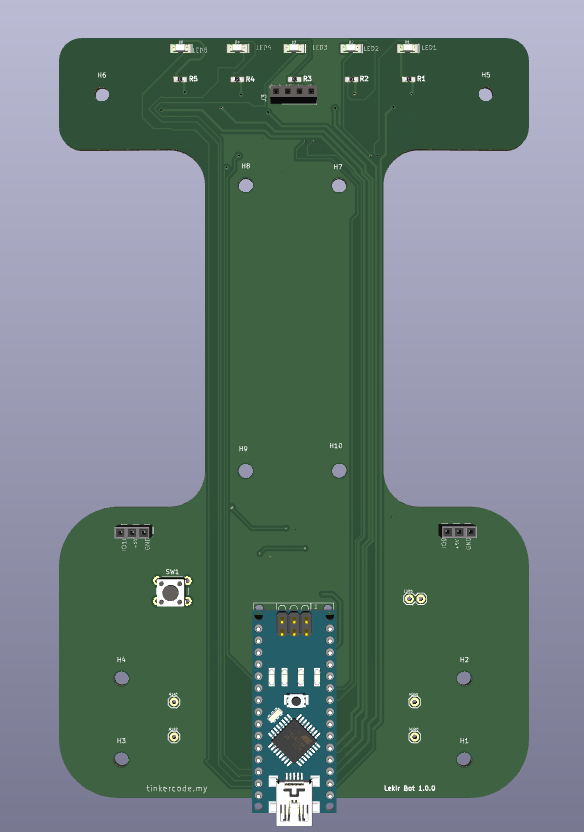

Tinkercode extension generator, from the project README
From the project README

Main components on the Tinkercode extension generator

7404DTB6612FNGC88224

Tinkercode extension generator bill of materials (BOM)

46 components, 18 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
7404D
IC3
1
TB6612FNG
U1
5
C88224
QRE11131:1
U2, U5, U6, U7, U8
4
CONN_01
M1A0, M1B0, M2A0, M2B0
2
455-1750-1-ND
J1, J2
1
Conn_01x04_Pin
J3
1
ARDUINO_NANO
ARDUINO_NANO1
2
CONN_02
BATT0, LDR0
1
EG1213
S2X0
1
SW_Push
SW1
5
LED-FKIT-1206
D1, D2, D3, D4, D5
1
DIODE-SCHOTTKY-SS14
D7
3
100N
100n
C1, C6, C7
1
C77071
22UF-0805-6.3V-20%
C2
6
C510086
100OHM-0603-1/10W-1%
R1, R2, R3, R4, R5, R16
5
10KOHM-0603
10K
R6, R8, R10, R12, R14
5
C510086
100
R7, R9, R11, R13, R15
1
C21190
1kOHM-0603-1/10W-1%
R17

Tinkercode extension generator design files

The KiCad project lives in the apauaie/tinkercode_extension_generator repository on GitHub; these links point at the commit this page was built from.

Tinkercode extension generator: common questions

What microcontroller does the Tinkercode extension generator use?

The Tinkercode extension generator is built around the ARDUINO_NANO, from the AVR/Arduino family.

How big is the Tinkercode extension generator PCB?

The Tinkercode extension generator measures 104.1 × 155.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tinkercode extension generator?

46 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Tinkercode extension generator design files?

From the apauaie/tinkercode_extension_generator repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Tinkercode extension generator design in my own project?

Yes, under the terms of its GPL-3.0 license, which apauaie chose for the repository.

Can I test firmware for the Tinkercode extension generator without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.

Earlier revisions in the repo: lekirbot
