Swan lake music art PCB layout, top view — open source AVR/Arduino board by AravinthPanch

About the Swan lake music art PCB

Swan lake music art is an open source AVR/Arduino PCB design by AravinthPanch, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 38.1 × 27.9 mm, with 2 components from 2 distinct parts.

Its main chip is the ATTINY85-S, from the AVR/Arduino family. By type, the board carries 1 IC and 1 connector.

It belongs with the audio and dev boards & breakouts designs in this gallery.

From the project

Swan Lake Music Art is a piece of Electronics and 8-bit music synthesizing firmware to provide monotonic music for a multilayer painting about Russian Ballet.

Swan Lake Music Art ===================================== Swan Lake Music Art is a project of electronics and firmware to provide monotonic music for a multilayer painting about Russian Ballet which is painted by a fine artist who has been working on the project to exhibit the beauty of Ballet dance. Since the painting is on thinner canvas, the form factor of electronic should be thinner and smaller. Therefore a smaller microcontroller ATtiny85, Piezoceramic Element as speaker and Coincell Battery as power source are chosen.

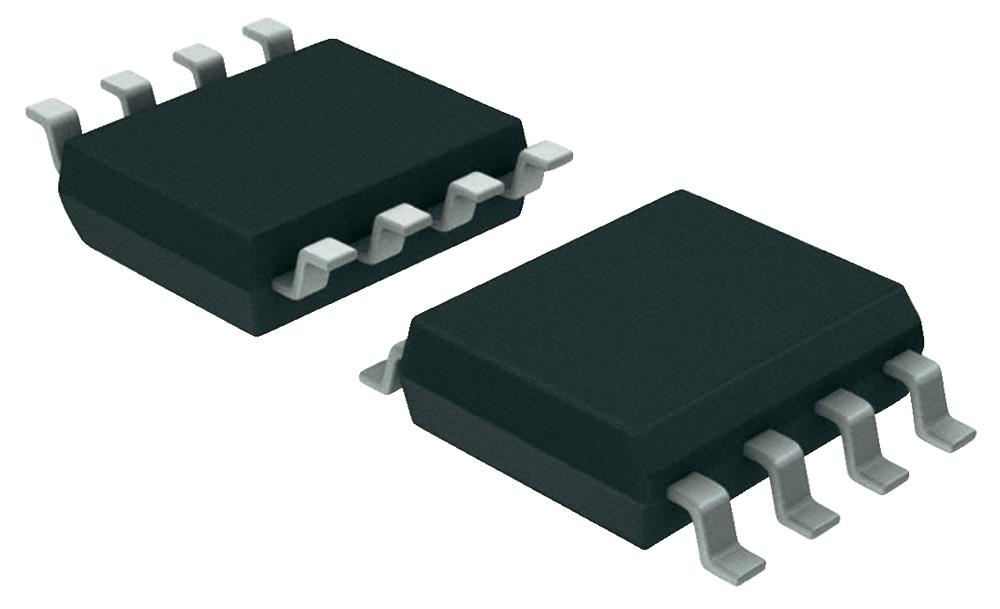

Swan lake music art, from the project README
From the project README

Main components on the Swan lake music art

ATTINY85-S

Swan lake music art bill of materials (BOM)

2 components, 2 distinct parts.

QtyPartRefs
1
ATTINY85-S
IC1
1
CONN_01X08
P1

Swan lake music art design files

The KiCad project lives in the AravinthPanch/swan-lake-music-art repository on GitHub; these links point at the commit this page was built from.

Swan lake music art: common questions

What microcontroller does the Swan lake music art use?

The Swan lake music art is built around the ATTINY85-S, from the AVR/Arduino family.

How big is the Swan lake music art PCB?

The Swan lake music art measures 38.1 × 27.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Swan lake music art?

2 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the Swan lake music art design files?

From the AravinthPanch/swan-lake-music-art repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Swan lake music art design in my own project?

Yes, under the terms of its Apache-2.0 license, which AravinthPanch chose for the repository.

Can I test firmware for the Swan lake music art without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
