LED-Chaser-Blinky-Board-
About the LED-Chaser-Blinky-Board-

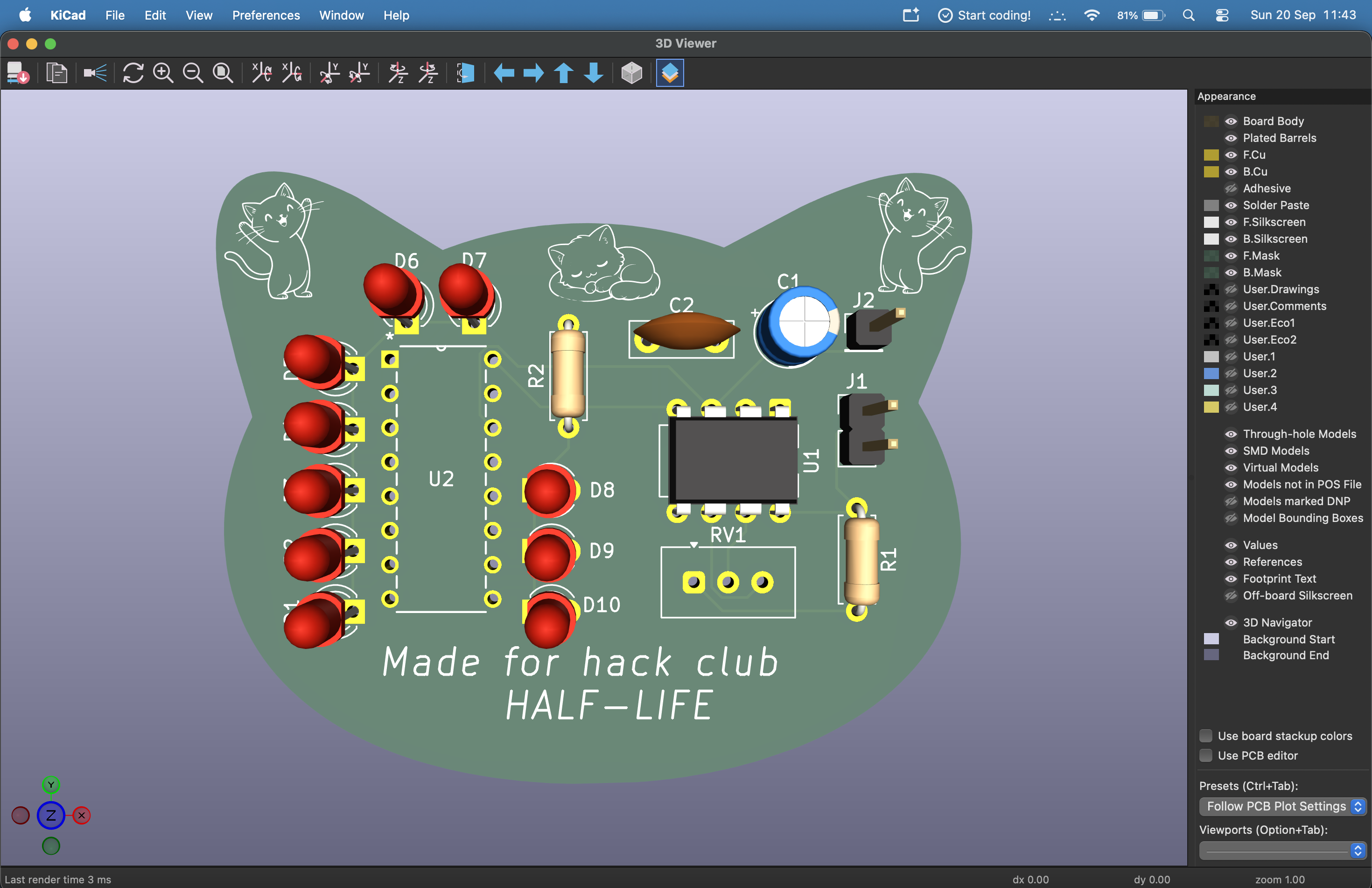

LED-Chaser-Blinky-Board- is an open source PCB design by ArchanaKunwar, published on GitHub. It is a 2-layer board measuring 56.1 × 45.4 mm, with 19 components from 10 distinct parts.
Other key parts include the NE555P and 4017. By type, the board carries 10 diodes, 2 ICs, 2 connectors, 2 capacitors and 2 resistors.
From the project
my first ever PCB!! its a little board with 10 LEDs that chase each other in a loop, and theres a knob on it so you can change how fast they go. thats it. thats the whole thing. but it works and honestly im so proud of it.
my first ever PCB!! its a little board with 10 LEDs that chase each other in a loop, and theres a knob on it so you can change how fast they go. thats it. thats the whole thing. but it works and honestly im so proud of it.
built this for Hack Club Half-life and i went in knowing basically nothing about PCB design so if i can do it you definately can.
NE555 runs in astable mode and just oscillates forever, the speed depends on R1, C1 and the pot. that clock feeds the CD4017 (a decade counter) which moves its output over by one every pulse, 0 through 9 then loops back. put an LED on each…
Main components on the LED-Chaser-Blinky-Board-
LED-Chaser-Blinky-Board- bill of materials (BOM)
19 components, 10 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555P | DIP-8_W7.62mm | U1 |
| 1 | 4017 | N16 | U2 |
| 1 | CONN_01X02_SOCKET Conn_01x02_Socket | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | CONN_01X01_SOCKET Conn_01x01_Socket | PinHeader_1x01_P2.54mm_Vertical | J2 |
| 1 | 50K 50k | Potentiometer_Vishay_T93YA_Vertical | RV1 |
| 10 | LED | LED_D3.0mm | D1, D2, D3, D4, D5, D6, D7, D8 +2 |
| 1 | 1 uF | CP_Radial_D5.0mm_P2.00mm | C1 |
| 1 | 0.01 uF | C_Disc_D7.5mm_W2.5mm_P5.00mm | C2 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1 |
| 1 | 470 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R2 |
LED-Chaser-Blinky-Board- design files
The KiCad project lives in the ArchanaKunwar/LED-Chaser-Blinky-Board- repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/LED-chaser.kicad_pcb
- SchematicPCB/LED-chaser.kicad_sch
- BOMBOM/BOM.csv
LED-Chaser-Blinky-Board-: common questions
How big is the LED-Chaser-Blinky-Board-?
The LED-Chaser-Blinky-Board- measures 56.1 × 45.4 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the LED-Chaser-Blinky-Board-?
19 components, from 10 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the LED-Chaser-Blinky-Board- design files?
From the ArchanaKunwar/LED-Chaser-Blinky-Board- repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the LED-Chaser-Blinky-Board- design in my own project?
The repository has no license, so all rights stay with ArchanaKunwar. Use it as a reference, and ask the author before reusing the design.
