Ql flex memory
arleybls·ql-flex-memory
About the Ql flex memory PCB
Ql flex memory is an open source PCB design by arleybls, published on GitHub under the CERN-OHL-S-2.0 license. It is a 2-layer board measuring 97.8 × 35.6 mm, with 15 components from 11 distinct parts.
Other key parts include the HM628512BLFP-7, GAL16V8B-25QP and LM1117-5.0. By type, the board carries 4 capacitors, 3 ICs, 3 jumpers, 3 resistors and 2 connectors.
It belongs with the retro computing designs in this gallery.
From the project

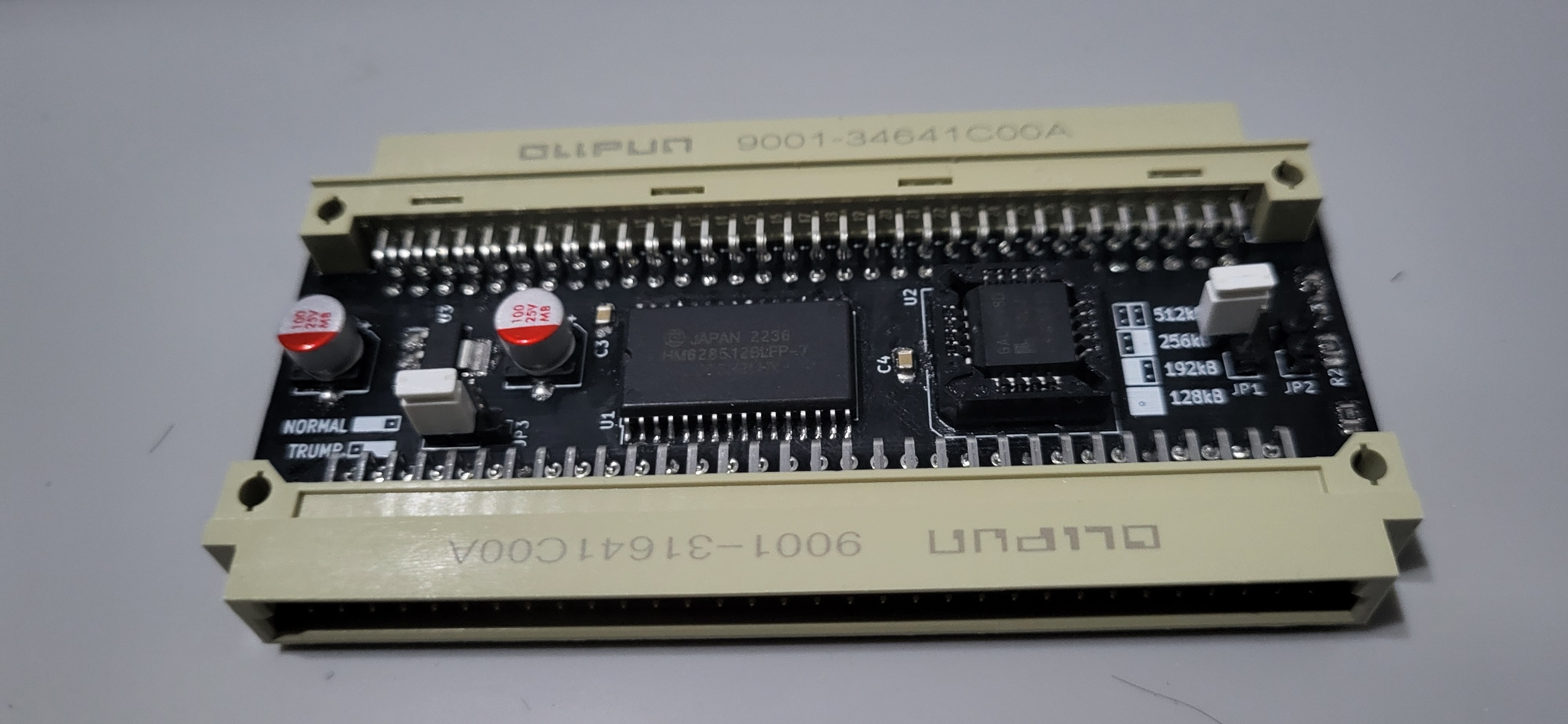

512kB external RAM expansion board for the Sinclair QL, with SuperBASIC/68008 RAM test software (KiCad, CERN-OHL-S v2)
A 512kB external RAM expansion for the Sinclair QL, based on Alvaro Alea Fernandez's design. The circuit is unchanged. This version reworks the board to make assembly and reconfiguration easier, hence the name.
Original project: https://github.com/alvaroalea/QL512kbExternal_Expansion
Standard 2.54mm pin headers replace the configuration solder jumpers. Jumper caps now control the memory configuration and Trump Card mode. The GAL16V8 uses a PLCC-20 SMD socket instead of a DIP-20 through-hole package. The GAL remains removable and reprogrammable while taking up less board space. The resistors…

Main components on the Ql flex memory
Ql flex memory bill of materials (BOM)
15 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HM628512BLFP-7 | SSOP-32_11.305x20.495mm_P1.27mm | U1 |
| 1 | GAL16V8B-25QP | PLCC-20_SMD-Socket | U2 |
| 1 | LM1117-5.0 | SOT-223-3_TabPin2 | U3 |
| 1 | QL_SLOT_DIN41612_FEMALE-90degrees | DIN41612_B_2x32_Female_Horizontal_THT | J1 |
| 1 | QL_SLOT_DIN41612_MALE_90degrees | DIN41612_B_2x32_Male_Horizontal_THT | J2 |
| 2 | Conn_01x02_Pin | PinHeader_1x02_P2.54mm_Vertical | JP1, JP2 |
| 1 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | JP3 |
| 1 | 100u/25V | CP_Elec_6.3x5.4 | C1 |
| 1 | 100u/16V | CP_Elec_6.3x5.4 | C2 |
| 2 | 100n | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C3, C4 |
| 3 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3 |
Ql flex memory design files
The KiCad project lives in the arleybls/ql-flex-memory repository on GitHub; these links point at the commit this page was built from.
- Layoutql-flex.kicad_pcb
- Schematicql-flex.kicad_sch
Ql flex memory: common questions
How big is the Ql flex memory PCB?
The Ql flex memory measures 97.8 × 35.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ql flex memory?
15 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ql flex memory design files?
From the arleybls/ql-flex-memory repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ql flex memory design in my own project?
Yes, under the terms of its CERN-OHL-S-2.0 license, which arleybls chose for the repository.
