Arnav hackpad

arnavshah100·arnav-hackpad·PCB/KiCad file.kicad_pcb

Arnav hackpad PCB layout, top view — open source board by arnavshah100

About the Arnav hackpad PCB

Arnav hackpad is an open source PCB design by arnavshah100, published on GitHub under the MIT license. It is a 2-layer board measuring 90.3 × 79.8 mm, with 25 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO and PCF8574AT. By type, the board carries 12 switches, 10 diodes, 2 ICs and 1 capacitor.

It belongs with the keyboards designs in this gallery.

From the project

The arnav-hackpad is a mini-keyboard (or macropad) designed to act as an external number pad with some other cool capabilities, too!

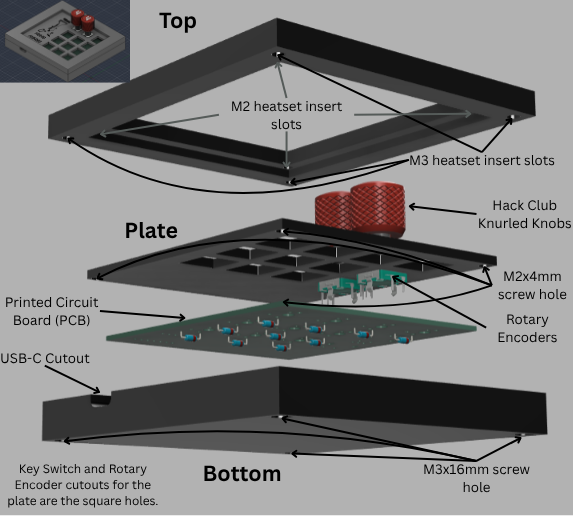

There are 3 parts to the case: the top, the bottom, and the plate. The arnav-hackpad is top-mounted, meaning that the plate is attached to the top part. The design gives an ≈0.3mm printing tolerance. I added a cool design with my name on the plate, which you can see in the plate demo below!

Click here to interact with the Plate.\ Click here to interact with the Top part.\ Click here to interact with the Bottom part. ## PCB [](https://kicanvas.org/?repo=https%3A%2F%2Fgithub.com%2Farnavshah100%2Farnav-hackpad%2Fblob%2Fmain%2FPCB%2FKiCad%2520file.kicad_sch)

Arnav hackpad, from the project README
From the project README

Main components on the Arnav hackpad

MOUDLE-SEEEDUINO-XIAOPCF8574AT

Arnav hackpad bill of materials (BOM)

25 components, 6 distinct parts.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
PCF8574AT
U2
10
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +2
2
RotaryEncoder_Switch
SW13, SW14
10
1N4148
D1, D2, D3, D4, D5, D6, D7, D8 +2
1
C_Polarized
C1

Arnav hackpad design files

The KiCad project lives in the arnavshah100/arnav-hackpad repository on GitHub; these links point at the commit this page was built from.

Arnav hackpad: common questions

How big is the Arnav hackpad PCB?

The Arnav hackpad measures 90.3 × 79.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Arnav hackpad?

25 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Arnav hackpad design files?

From the arnavshah100/arnav-hackpad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Arnav hackpad design in my own project?

Yes, under the terms of its MIT license, which arnavshah100 chose for the repository.
