STM32F405rg

Arpan12·STM32F405rg

STM32F405rg PCB layout, top view — open source STM32 board by Arpan12

About the STM32F405rg PCB

STM32F405rg is an open source STM32 PCB design by Arpan12, published on GitHub. It is a 4-layer board measuring 61.2 × 47.5 mm, with 50 components from 35 distinct parts.

Its main chip is the STM32F405RGT6, from the STM32 family. Other key parts include the USBLC6-2SC6. By type, the board carries 16 capacitors, 16 resistors, 5 connectors, 3 diodes, 3 inductors and 2 ICs.

From the project

Buidling my own Microcontroller board from Scratch

a STM32 based board designed in Kicad. Have support for UART,I2C. Firmware can be uploaded using SWD pin. Support for debugging using SWO. Can be powered by 12v or 5v USB.

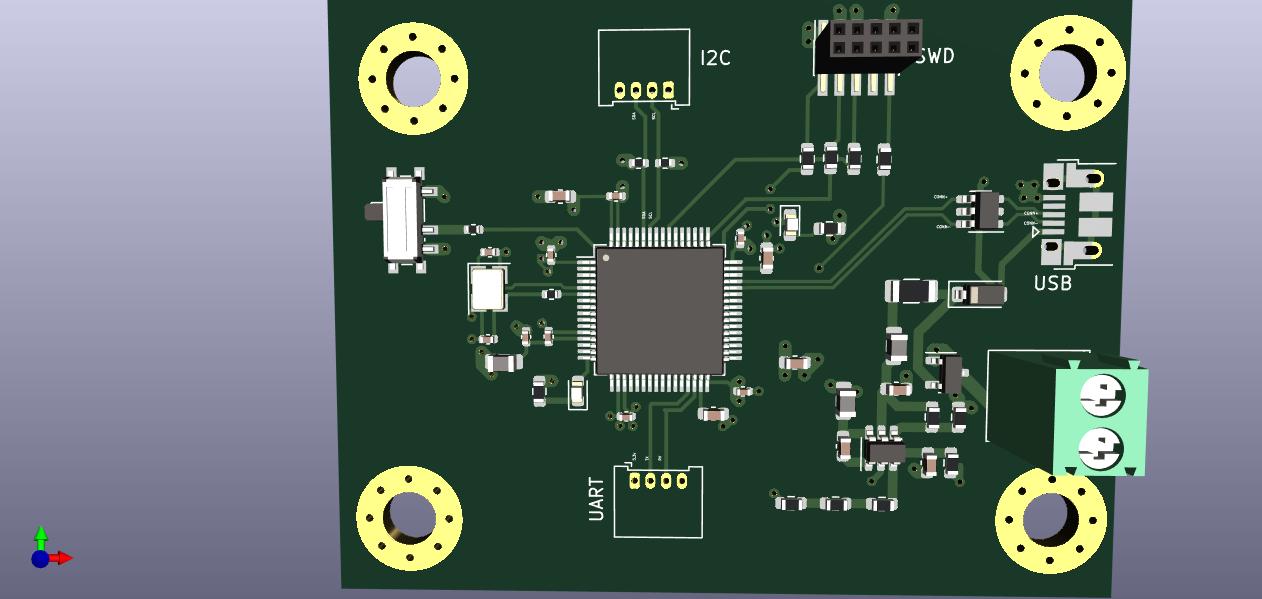

STM32F405rg, from the project README
From the project README

Main components on the STM32F405rg

STM32F405RGT6USBLC6-2SC6

STM32F405rg bill of materials (BOM)

50 components, 35 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
STM32F405RGT6
U1
1
USBLC6-2SC6
U2
1
AO3401A
Q1
1
16MZ
Y1
1
SCREW_TERMINAL_01X02
Screw_Terminal_01x02
J1
1
SWD
J2
2
CONN_01X04
Conn_01x04
J3, J4
1
USB_B_Micro
J5
1
250MA
250mA
F1
1
SW_SPDT
SW1
1
~
TPMP2359DJ1
1
BLUE
D1
1
B5819W
D2
1
RED
D3
1
600 @ 600MHz
FB1
1
39N
39n
L1
1
10UH
10uH
L2
2
2U2
2u2
C1, C2
1
4U7
4u7
C3
5
100N
100n
C4, C5, C6, C7, C8
Show 15 more
QtyPartRefs
1
1u
C9
1
10N
10n
C10
2
12PF
12pF
C11, C12
4
47U
47u
C13, C14, C15, C16
1
10K
10k
R1
1
47
R2
1
1K5
1k5
R3
1
100K
R4
1
68K
R5
1
30K
R6
1
10K
10k
R7
2
1K
R8, R16
1
270
R9
4
22
R10, R11, R12, R13
2
2K2
2k2
R14, R15

STM32F405rg design files

The KiCad project lives in the Arpan12/STM32F405rg repository on GitHub; these links point at the commit this page was built from.

STM32F405rg: common questions

What microcontroller does the STM32F405rg use?

The STM32F405rg is built around the STM32F405RGT6, from the STM32 family.

How big is the STM32F405rg PCB?

The STM32F405rg measures 61.2 × 47.5 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the STM32F405rg?

50 components, from 35 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the STM32F405rg design files?

From the Arpan12/STM32F405rg repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the STM32F405rg design in my own project?

The repository has no license, so all rights stay with Arpan12. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the STM32F405rg without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
