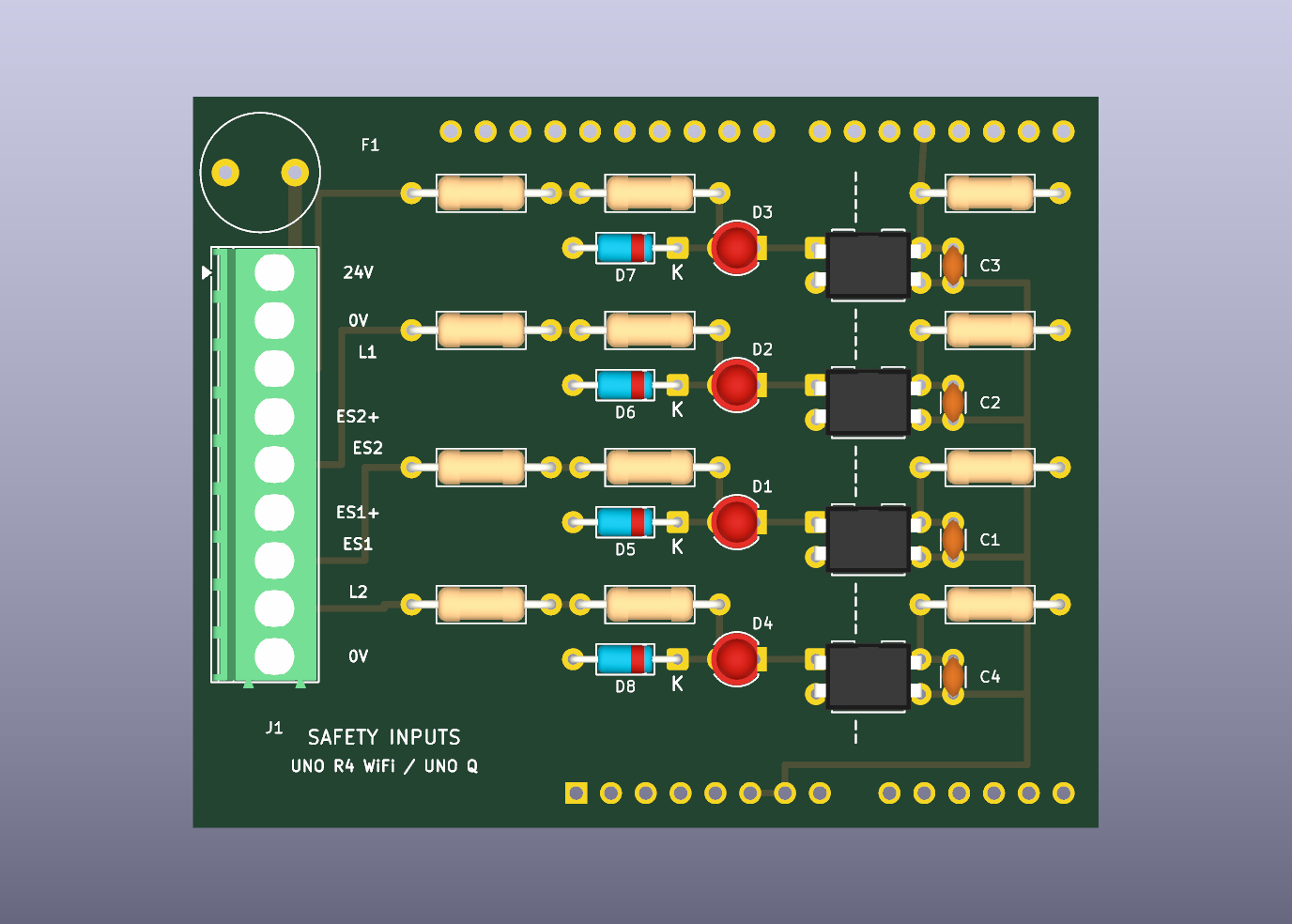

KiCad-Claude assisted PCB layout, top view — open source AVR/Arduino board by artemmelnyk-extern

About the KiCad-Claude assisted PCB

KiCad-Claude assisted is an open source AVR/Arduino PCB design by artemmelnyk-extern, published on GitHub under the MIT license. It is a 2-layer board measuring 66 × 53.3 mm, with 31 components from 10 distinct parts.

Its main chip is the UNO R4 WiFi or UNO Q, from the AVR/Arduino family. Other key parts include the PC817. By type, the board carries 12 resistors, 8 diodes, 4 ICs, 4 capacitors, 1 module and 1 connector.

From the project

Test repo with AI guided KiCad development.

An Arduino UNO shield with four isolated 24 V inputs: two emergency-stop buttons (one normally-closed contact each) and two safety-lidar outputs. Each input goes through a PC817 optocoupler, so the 24 V side is electrically isolated from the microcontroller. It works unchanged on the UNO R4 WiFi (5 V logic) and the UNO Q (3.3 V logic).

The KiCad schematic and board in this repository are generated by Python scripts. The scripts are the source; the KiCad files are their output.

KiCad-Claude assisted, from the project README
From the project README

Main components on the KiCad-Claude assisted

PC817UNO R4 WiFi or UNO Q

KiCad-Claude assisted bill of materials (BOM)

31 components, 10 distinct parts.

QtyPartRefs
4
PC817
U1, U2, U3, U4
1
UNO R4 WiFi or UNO Q
A1
1
24V, e-stops, lidars
J1
1
T2A
F1
4
LED red
D1, D2, D3, D4
4
1N4148
D5, D6, D7, D8
4
100n opt.
C1, C2, C3, C4
4
1.5k
R1, R2, R3, R4
4
2.2k
R5, R6, R7, R8
4
10k
R9, R10, R11, R12

KiCad-Claude assisted design files

The KiCad project lives in the artemmelnyk-extern/KiCad-Claude-assisted repository on GitHub; these links point at the commit this page was built from.

KiCad-Claude assisted: common questions

What microcontroller does the KiCad-Claude assisted use?

The KiCad-Claude assisted is built around the UNO R4 WiFi or UNO Q, from the AVR/Arduino family.

How big is the KiCad-Claude assisted PCB?

The KiCad-Claude assisted measures 66 × 53.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiCad-Claude assisted?

31 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the KiCad-Claude assisted design files?

From the artemmelnyk-extern/KiCad-Claude-assisted repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the KiCad-Claude assisted design in my own project?

Yes, under the terms of its MIT license, which artemmelnyk-extern chose for the repository.

Can I test firmware for the KiCad-Claude assisted without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
