Bbq10kbd breakout
About the Bbq10kbd breakout

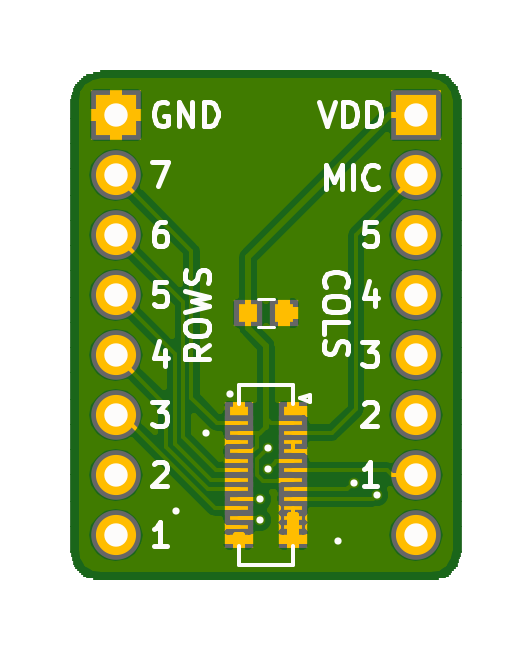

Bbq10kbd breakout is an open source PCB design by arturo182, published on GitHub. It is a 2-layer board measuring 16.5 × 21.6 mm, with 4 components from 3 distinct parts.
Other key parts include the H122178. By type, the board carries 2 connectors, 1 IC and 1 capacitor.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
This is a very simple board breaking out the Q10 keyboard connector, the Hirose BM14B(0.8)-24DS-0.4V(53), but it is enough to read all the keys, as well as the MIC pin and provide backlight.
This is a very simple board breaking out the Q10 keyboard connector, the Hirose BM14B(0.8)-24DS-0.4V(53), but it is enough to read all the keys, as well as the MIC pin and provide backlight.
For more details about the Q10 keyboard see:
Main components on the Bbq10kbd breakout
Bbq10kbd breakout bill of materials (BOM)
4 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | H122178 BBQ10KBD | BM14B(0.8)-24DS-0.4V(53) | U1 |
| 2 | 90120-0128 Conn_01x08 Molex | Pin_Header_Straight_1x08_Pitch2.54mm | J1, J2 |
| 1 | GRM188R71H104KA93D 100uF Murata | C_0603 | C1 |
Bbq10kbd breakout design files
The KiCad project lives in the arturo182/bbq10kbd_breakout repository on GitHub; these links point at the commit this page was built from.
Bbq10kbd breakout: common questions
How big is the Bbq10kbd breakout?
The Bbq10kbd breakout measures 16.5 × 21.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Bbq10kbd breakout?
4 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Bbq10kbd breakout design files?
From the arturo182/bbq10kbd_breakout repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Bbq10kbd breakout design in my own project?
The repository has no license, so all rights stay with arturo182. Use it as a reference, and ask the author before reusing the design.
