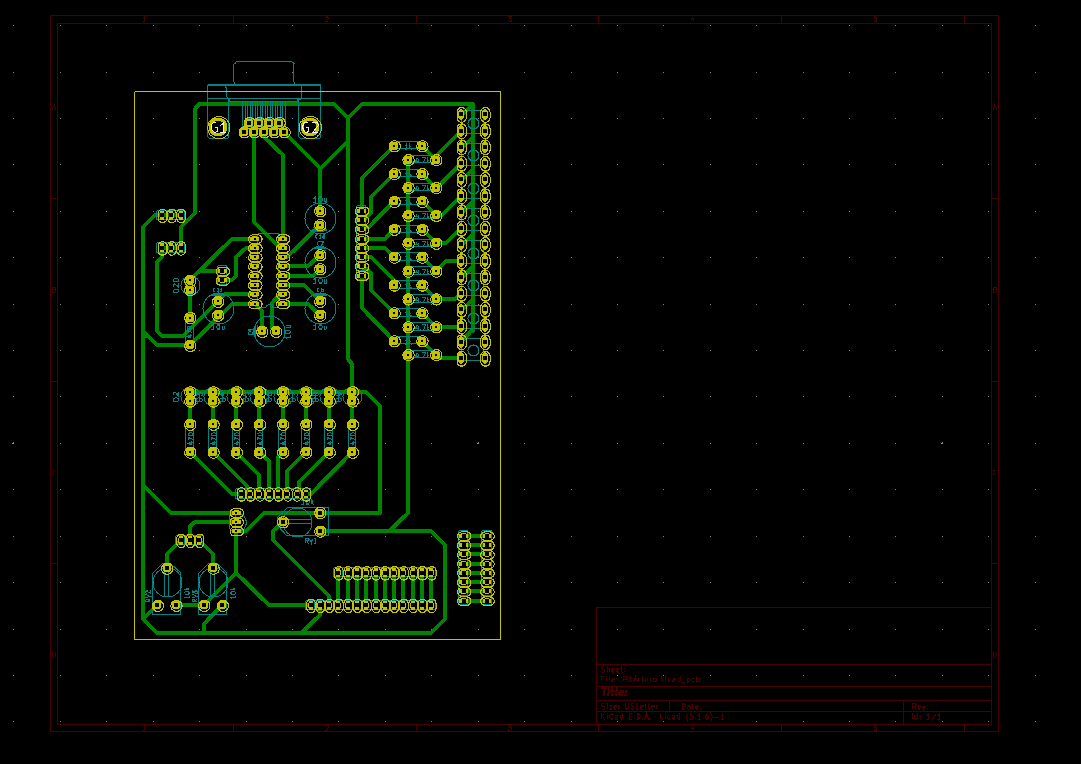

Practica2ArturoBuganza PCB layout, top view — open source board by ArturoBuganza

About the Practica2ArturoBuganza PCB

Practica2ArturoBuganza is an open source PCB design by ArturoBuganza, published on GitHub. It is a 2-layer board measuring 100 × 150 mm, with 42 components from 6 distinct parts.

By type, the board carries 25 resistors, 9 diodes and 5 capacitors.

It belongs with the sensors designs in this gallery.

From the project

Second practice of the microcontroller laboratory.

Develop the connection diagrams (layout) from the schematic diagram.

Microcontrollers are all around he world. Each day, Microcontrollers, are more present in the many aspects of our lives: in our work, inside our houses, and in more. We can find them controlling small devices like cellphones, microwaves, washing machines, and televisions.

A microcontroller is one device or chip that is used to govern one or more processes. For example, the controller that regulates the room temperature of an air conditioner; it has a sensor that continuously measures the internal temperature and, when the…

Practica2ArturoBuganza, from the project README
From the project README

Practica2ArturoBuganza bill of materials (BOM)

42 components, 6 distinct parts.

QtyPartRefs
3
10k
RV1, RV2, RV3
9
LED
D2, D3, D4, D5, D6, D7, D8, D9 +1
5
10u
C6, C7, C9, C10, C11
9
470
R3, R4, R5, R6, R7, R8, R9, R10 +1
8
1k
R12, R13, R14, R15, R16, R17, R18, R19
8
4.7k
R20, R21, R22, R23, R24, R25, R26, R27

Practica2ArturoBuganza design files

The KiCad project lives in the ArturoBuganza/Practica2ArturoBuganza repository on GitHub; these links point at the commit this page was built from.

Practica2ArturoBuganza: common questions

How big is the Practica2ArturoBuganza PCB?

The Practica2ArturoBuganza measures 100 × 150 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Practica2ArturoBuganza?

42 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Practica2ArturoBuganza design files?

From the ArturoBuganza/Practica2ArturoBuganza repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Practica2ArturoBuganza design in my own project?

The repository has no license, so all rights stay with ArturoBuganza. Use it as a reference, and ask the author before reusing the design.
