Halakekit first break

asukiaaa·halakekit_first_break

Halakekit first break PCB layout, top view — open source AVR/Arduino board by asukiaaa

About the Halakekit first break PCB

Halakekit first break is an open source AVR/Arduino PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 2.8 × 2.8 mm, with 22 components from 8 distinct parts.

Its main chip is the Arduino_Pro_Micro, from the AVR/Arduino family. By type, the board carries 21 connectors and 1 IC.

From the project

A kicad project for HaLakeKitFirst.

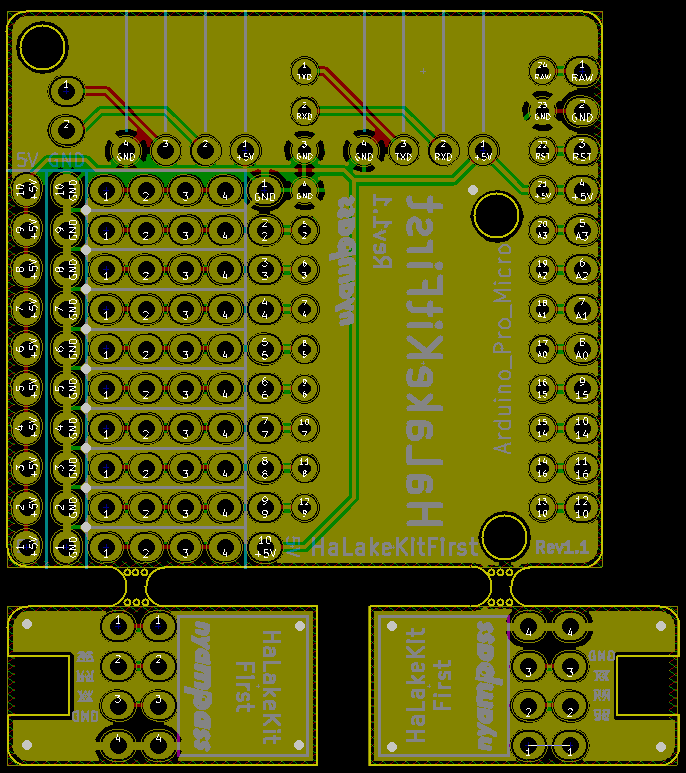

Halakekit first break, from the project README
From the project README

Main components on the Halakekit first break

Arduino_Pro_Micro

Halakekit first break bill of materials (BOM)

22 components, 8 distinct parts.

QtyPartRefs
1
Arduino_Pro_Micro
U1
10
LINE_4
J1, J2, J3, J4, J5, J11, J12, J13 +2
1
HEADER_10
J6
4
Connector_4
J7, J8, J9, J10
2
LINE_10
J21, J22
2
CIRCLES_4
J24, J28
1
HEADER_2
J26
1
HEADER_12
J27

Halakekit first break design files

The KiCad project lives in the asukiaaa/halakekit_first_break repository on GitHub; these links point at the commit this page was built from.

Halakekit first break: common questions

What microcontroller does the Halakekit first break use?

The Halakekit first break is built around the Arduino_Pro_Micro, from the AVR/Arduino family.

How big is the Halakekit first break PCB?

The Halakekit first break measures 2.8 × 2.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Halakekit first break?

22 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Halakekit first break design files?

From the asukiaaa/halakekit_first_break repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Halakekit first break design in my own project?

The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Halakekit first break without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
