Mcp25625-breakout ssop28
About the Mcp25625-breakout ssop28

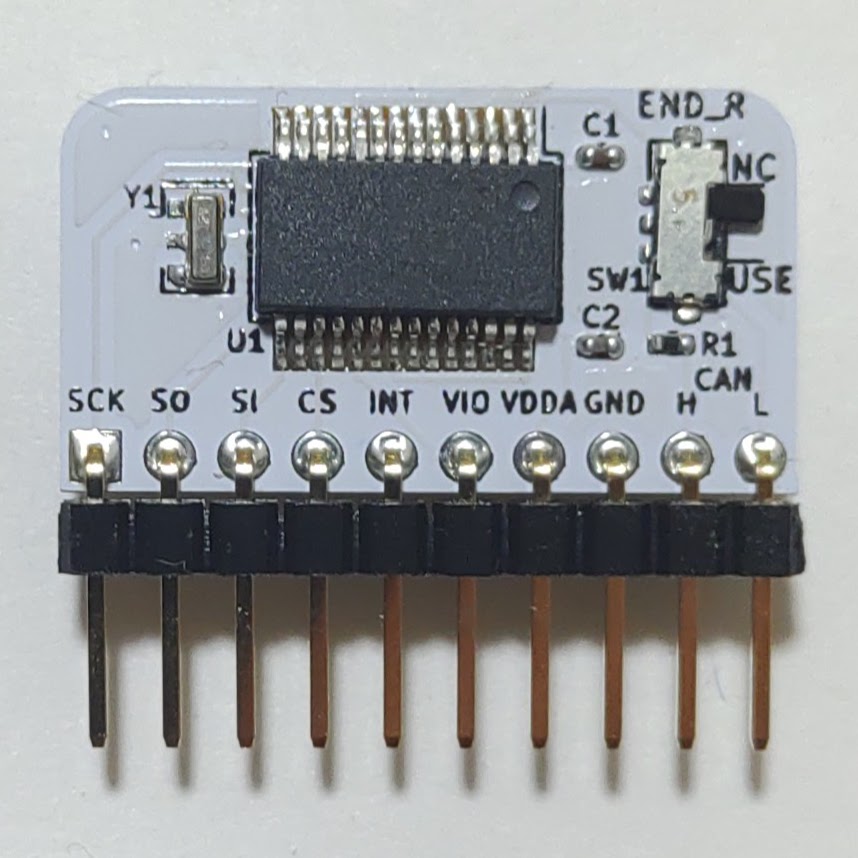

Mcp25625-breakout ssop28 is an open source PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 27.9 × 14 mm, with 10 components from 8 distinct parts.
Other key parts include the MCP25625-X-SS. By type, the board carries 4 capacitors, 2 resistors, 1 IC, 1 crystal, 1 connector and 1 switch.
It belongs with the dev boards & breakouts designs in this gallery.
From the project
A breakout board of MCP25625 for Can BUS communication.
- MCP25625 SSOP28 - 0.1uf 0402 - 22pf 0402 - 120 ohm 0402 - slide switch smd - 16MHz crystal
- CanBusMCP2515-arduino - CANをArduinoで使ってみた - 製品紹介 MCP25625-breakout
Main components on the Mcp25625-breakout ssop28
Mcp25625-breakout ssop28 bill of materials (BOM)
10 components, 8 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MCP25625-X-SS MCP25625-x-SS | SSOP-28_5.3x10.2mm_P0.65mm | U1 |
| 1 | Crystal_GND24_16MHz | Crystal_SMD_SeikoEpson_FA238-4Pin_3.2x2.5mm | Y1 |
| 1 | Conn_01x11 | PinHeader_1x11_P2.54mm_Vertical_witout_silk | J1 |
| 1 | SW_Slide_with_cover | slide_switch_smd | SW1 |
| 2 | 0.1u | C_0402_1005Metric | C1, C2 |
| 2 | 22pf | C_0402_1005Metric | C3, C4 |
| 1 | 120 | R_0402_1005Metric | R1 |
| 1 | 10k | R_0402_1005Metric | R2 |
Mcp25625-breakout ssop28 design files
The KiCad project lives in the asukiaaa/MCP25625-breakout repository on GitHub; these links point at the commit this page was built from.
Mcp25625-breakout ssop28: common questions
How big is the Mcp25625-breakout ssop28?
The Mcp25625-breakout ssop28 measures 27.9 × 14 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Mcp25625-breakout ssop28?
10 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Mcp25625-breakout ssop28 design files?
From the asukiaaa/MCP25625-breakout repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Mcp25625-breakout ssop28 design in my own project?
The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.
