About the SideBBForM5Stack PCB
SideBBForM5Stack is an open source PCB design by asukiaaa, published on GitHub. It is a 2-layer board measuring 100 × 50 mm, with 4 components from 3 distinct parts.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

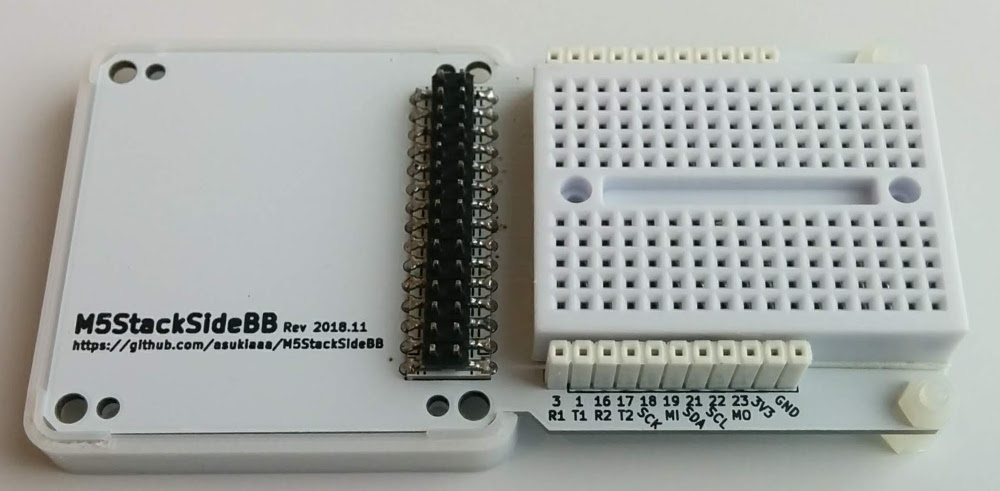

An stack for M5Stack to use bread board easier.
An stack for M5Stack to use bread board easier.
- M5Stackの信号線をブレッドボードで扱いやすくするStackを作ってみた - PartsandCircuits/M5Stack-3DPrintFiles - DIY Mini Proto Board

SideBBForM5Stack bill of materials (BOM)
4 components, 3 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | Conn_01x15 | PinSocket_1x15_P2.54mm_Vertical_without_silk | J1, J2 |
| 1 | Conn_02x15_Odd_Even | PinHeader_2x15_P2.54mm_M5Stack_SpacerPCB_pads | J3 |
| 1 | Conn_02x15_Odd_Even | PinSocket_2x15_P2.54mm_Vertical_SMD_just_for_M5Stack_bottom | J4 |
SideBBForM5Stack design files
The KiCad project lives in the asukiaaa/SideBBForM5Stack repository on GitHub; these links point at the commit this page was built from.
- Layoutpcb/SideBBForM5Stack.kicad_pcb
- Schematicpcb/SideBBForM5Stack.kicad_sch
- BOMdocs/bom.csv
SideBBForM5Stack: common questions
How big is the SideBBForM5Stack PCB?
The SideBBForM5Stack measures 100 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the SideBBForM5Stack?
4 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the SideBBForM5Stack design files?
From the asukiaaa/SideBBForM5Stack repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the SideBBForM5Stack design in my own project?
The repository has no license, so all rights stay with asukiaaa. Use it as a reference, and ask the author before reusing the design.
