Keyboard v1
About the Keyboard v1 PCB
Keyboard v1 is an open source AVR/Arduino PCB design by augustt198, published on GitHub. It is a 2-layer board measuring 297 × 113 mm, with 140 components from 74 distinct parts.
Its main chip is the ATMEGA32U4-AU, from the AVR/Arduino family. By type, the board carries 64 switches, 64 diodes, 4 resistors, 3 connectors, 3 capacitors and 1 IC.
It belongs with the keyboards designs in this gallery.
From the project

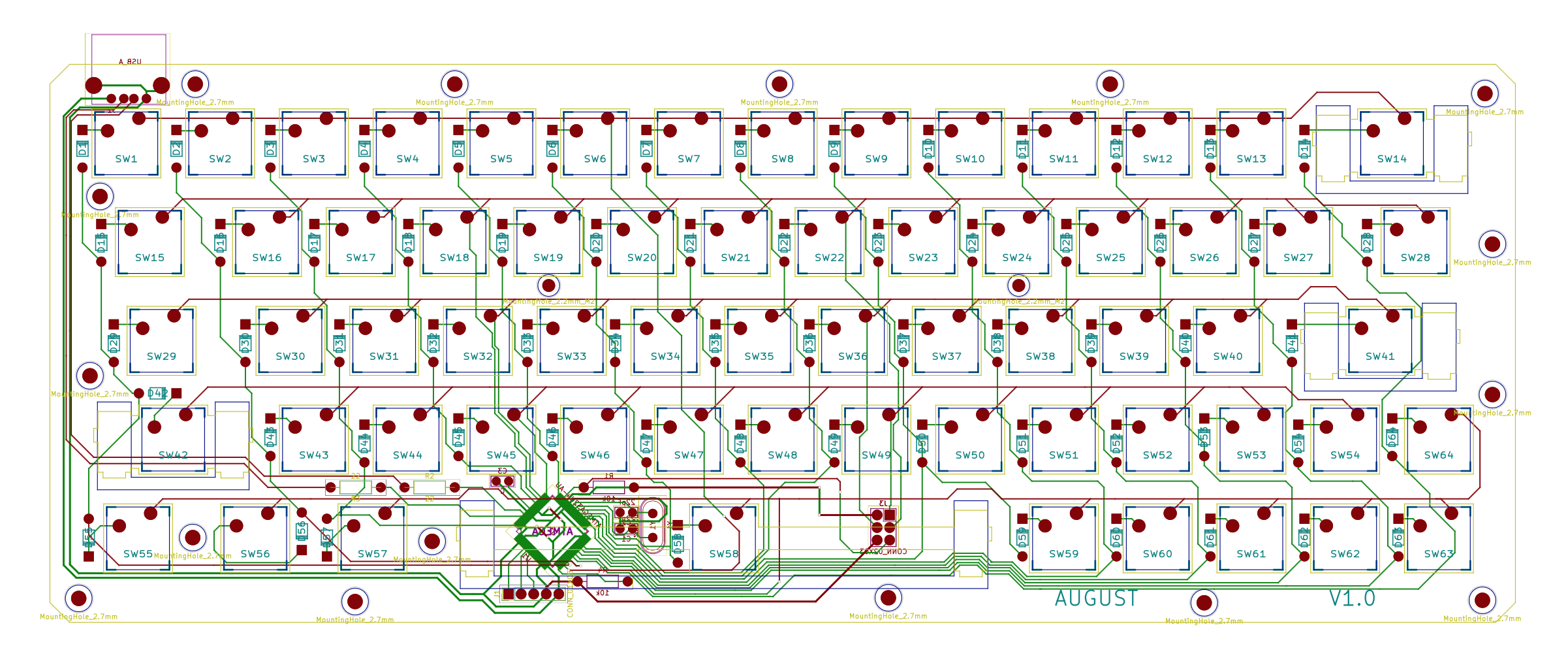

My first keyboard PCB
Main components on the Keyboard v1
Keyboard v1 bill of materials (BOM)
140 components, 74 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ATMEGA32U4-AU | TQFP-44_10x10mm_Pitch0.8mm | U1 |
| 1 | 16mhz | Crystal_HC49-4H_Vertical | Y1 |
| 1 | CONN_01X05 | Pin_Header_Straight_1x05_Pitch2.54mm | J1 |
| 1 | USB_A | USB_A | J2 |
| 1 | CONN_02X03 | Pin_Header_Straight_2x03_Pitch2.54mm | J3 |
| 1 | KEY_ESC | CHERRY_PCB_100H | SW1 |
| 1 | KEY_1 | CHERRY_PCB_100H | SW2 |
| 1 | KEY_2 | CHERRY_PCB_100H | SW3 |
| 1 | KEY_3 | CHERRY_PCB_100H | SW4 |
| 1 | KEY_4 | CHERRY_PCB_100H | SW5 |
| 1 | KEY_5 | CHERRY_PCB_100H | SW6 |
| 1 | KEY_6 | CHERRY_PCB_100H | SW7 |
| 1 | KEY_7 | CHERRY_PCB_100H | SW8 |
| 1 | KEY_8 | CHERRY_PCB_100H | SW9 |
| 1 | KEY_9 | CHERRY_PCB_100H | SW10 |
| 1 | KEY_0 | CHERRY_PCB_100H | SW11 |
| 1 | KEY_MINUS | CHERRY_PCB_100H | SW12 |
| 1 | KEY_EQUAL | CHERRY_PCB_100H | SW13 |
| 1 | KEY_DELETE | CHERRY_PCB_200H | SW14 |
| 1 | KEY_TAB | CHERRY_PCB_150H | SW15 |
Show 54 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | KEY_Q | CHERRY_PCB_100H | SW16 |
| 1 | KEY_W | CHERRY_PCB_100H | SW17 |
| 1 | KEY_E | CHERRY_PCB_100H | SW18 |
| 1 | KEY_R | CHERRY_PCB_100H | SW19 |
| 1 | KEY_T | CHERRY_PCB_100H | SW20 |
| 1 | KEY_Y | CHERRY_PCB_100H | SW21 |
| 1 | KEY_U | CHERRY_PCB_100H | SW22 |
| 1 | KEY_I | CHERRY_PCB_100H | SW23 |
| 1 | KEY_O | CHERRY_PCB_100H | SW24 |
| 1 | KEY_P | CHERRY_PCB_100H | SW25 |
| 1 | KEY_LBRACK | CHERRY_PCB_100H | SW26 |
| 1 | KEY_RBRACK | CHERRY_PCB_100H | SW27 |
| 1 | KEY_BACKSLH | CHERRY_PCB_150H | SW28 |
| 1 | KEY_CAPS | CHERRY_PCB_175H | SW29 |
| 1 | KEY_A | CHERRY_PCB_100H | SW30 |
| 1 | KEY_S | CHERRY_PCB_100H | SW31 |
| 1 | KEY_D | CHERRY_PCB_100H | SW32 |
| 1 | KEY_F | CHERRY_PCB_100H | SW33 |
| 1 | KEY_G | CHERRY_PCB_100H | SW34 |
| 1 | KEY_H | CHERRY_PCB_100H | SW35 |
| 1 | KEY_J | CHERRY_PCB_100H | SW36 |
| 1 | KEY_K | CHERRY_PCB_100H | SW37 |
| 1 | KEY_L | CHERRY_PCB_100H | SW38 |
| 1 | KEY_SEMI | CHERRY_PCB_100H | SW39 |
| 1 | KEY_APOS | CHERRY_PCB_100H | SW40 |
| 1 | KEY_ENTER | CHERRY_PCB_225H | SW41 |
| 1 | KEY_LSHIFT | CHERRY_PCB_200H | SW42 |
| 1 | KEY_Z | CHERRY_PCB_100H | SW43 |
| 1 | KEY_X | CHERRY_PCB_100H | SW44 |
| 1 | KEY_C | CHERRY_PCB_100H | SW45 |
| 1 | KEY_V | CHERRY_PCB_100H | SW46 |
| 1 | KEY_B | CHERRY_PCB_100H | SW47 |
| 1 | KEY_N | CHERRY_PCB_100H | SW48 |
| 1 | KEY_M | CHERRY_PCB_100H | SW49 |
| 1 | KEY_COMMA | CHERRY_PCB_100H | SW50 |
| 1 | KEY_PERIOD | CHERRY_PCB_100H | SW51 |
| 1 | KEY_SLASH | CHERRY_PCB_100H | SW52 |
| 1 | KEY_UP | CHERRY_PCB_100H | SW53 |
| 1 | KEY_RSHIFT | CHERRY_PCB_175H | SW54 |
| 1 | KEY_LCTRL | CHERRY_PCB_125H | SW55 |
| 1 | KEY_SPECIAL | CHERRY_PCB_125H | SW56 |
| 1 | KEY_LALT | CHERRY_PCB_125H | SW57 |
| 1 | KEY_SPACE | CHERRY_PCB_625H | SW58 |
| 1 | KEY_RALT | CHERRY_PCB_100H | SW59 |
| 1 | KEY_FN | CHERRY_PCB_100H | SW60 |
| 1 | KEY_RCTRL | CHERRY_PCB_100H | SW61 |
| 1 | KEY_LEFT | CHERRY_PCB_100H | SW62 |
| 1 | KEY_DOWN | CHERRY_PCB_100H | SW63 |
| 1 | KEY_RIGHT | CHERRY_PCB_100H | SW64 |
| 64 | D | DIODE | D1, D2, D3, D4, D5, D6, D7, D8 +56 |
| 2 | 22pF | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C1, C2 |
| 1 | C | C_Rect_L4.6mm_W2.0mm_P2.50mm_MKS02_FKP02 | C3 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1, R4 |
| 2 | 22 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R3 |
Keyboard v1 design files
The KiCad project lives in the augustt198/keyboard-v1 repository on GitHub; these links point at the commit this page was built from.
- Layoutkeyboard.kicad_pcb
