Keyboard PCB layout, top view — open source RP2040/RP2350 board by ayushj-18

About the Keyboard PCB

Keyboard is an open source RP2040/RP2350 PCB design by ayushj-18, published on GitHub. It is a 2-layer board measuring 387.8 × 163.7 mm, with 343 components from 17 distinct parts.

Its main chip is the RP2350_STAMP, from the RP2040/RP2350 family. By type, the board carries 85 switches, 84 LEDs, 84 diodes, 84 capacitors, 4 resistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

84 key keyboard

Inspo- https://www.montechpc.com/mkey-tkl

This is an 84 key keyboard with Backlit RGB under each key, A rotary Encoder & the MCU used is the RP2035 Stamp.

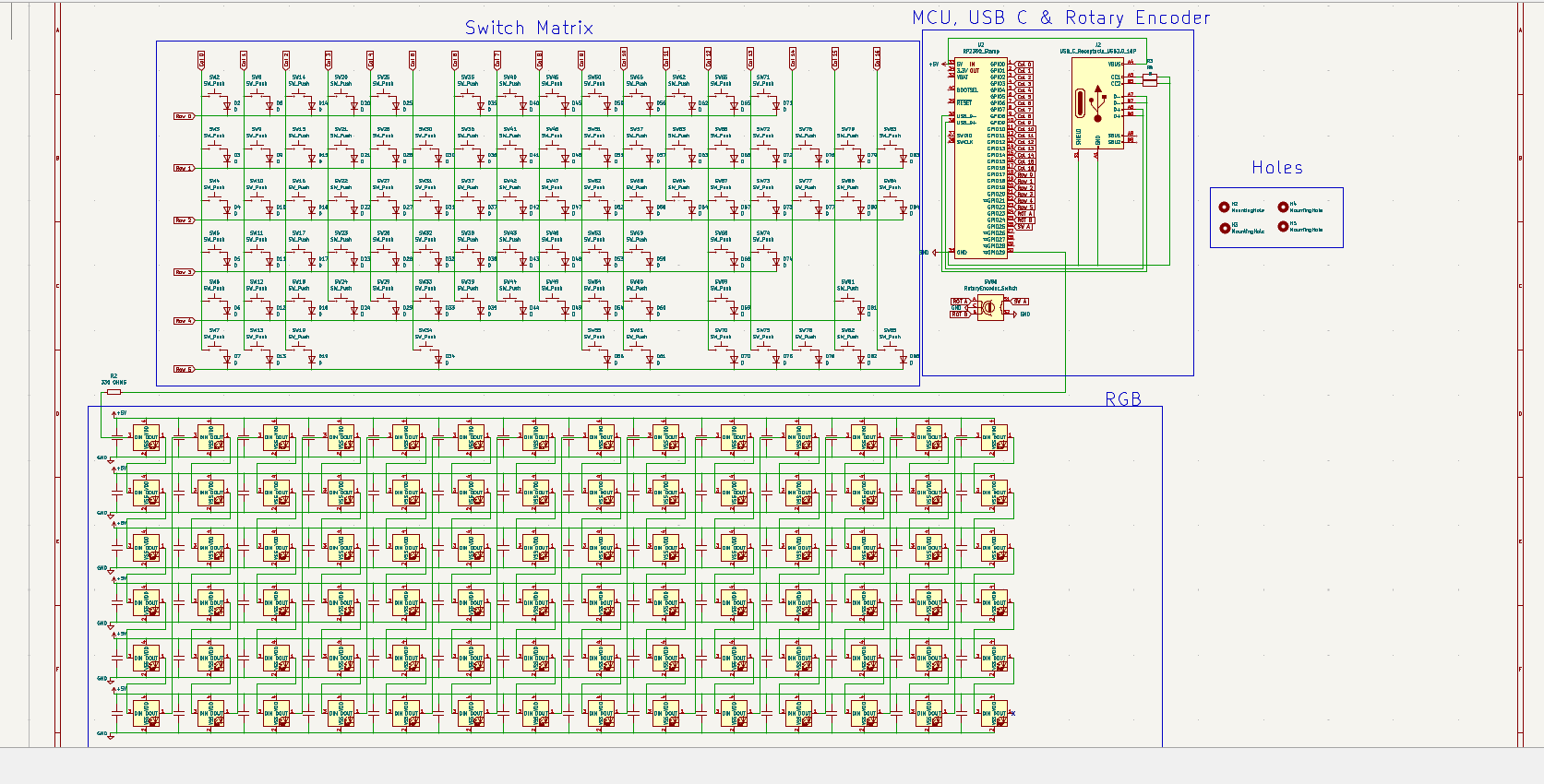

Keyboard, from the project README
From the project README

Main components on the Keyboard

RP2350_STAMP

Keyboard bill of materials (BOM)

343 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2350_STAMP
RP2350_Stamp
U2
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J2
69
SW_Push
SW2, SW3, SW8, SW9, SW10, SW11, SW12, SW14 +61
2
SW_Push
SW4, SW73
1
SW_Push
SW5
2
SW_Push
SW6, SW74
7
SW_Push
SW7, SW13, SW19, SW55, SW61, SW70, SW75
1
SW_Push
SW34
1
SW_Push
SW69
1
SW_Push
SW72
1
RotaryEncoder_Switch
SW86
84
SK6812MINI
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +76
84
D
D2, D3, D4, D5, D6, D7, D8, D9 +76
84
C
C1, C2, C3, C4, C5, C6, C7, C8 +76
1
330 OHMS
R1
1
R
R2
2
R
R3, R4

Keyboard design files

The KiCad project lives in the ayushj-18/keyboard repository on GitHub; these links point at the commit this page was built from.

Keyboard: common questions

What microcontroller does the Keyboard use?

The Keyboard is built around the RP2350_STAMP, from the RP2040/RP2350 family.

How big is the Keyboard PCB?

The Keyboard measures 387.8 × 163.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard?

343 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keyboard design files?

From the ayushj-18/keyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keyboard design in my own project?

The repository has no license, so all rights stay with ayushj-18. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
