Ac to dc PCB layout, top view — open source board by baleshwarece-jpg

About the Ac to dc PCB

Ac to dc is an open source PCB design by baleshwarece-jpg, published on GitHub. It is a 2-layer board measuring 48 × 33.5 mm, with 10 components from 6 distinct parts.

By type, the board carries 5 diodes, 2 connectors, 2 resistors and 1 capacitor.

From the project

30-Days-PCB-Design-Challenge

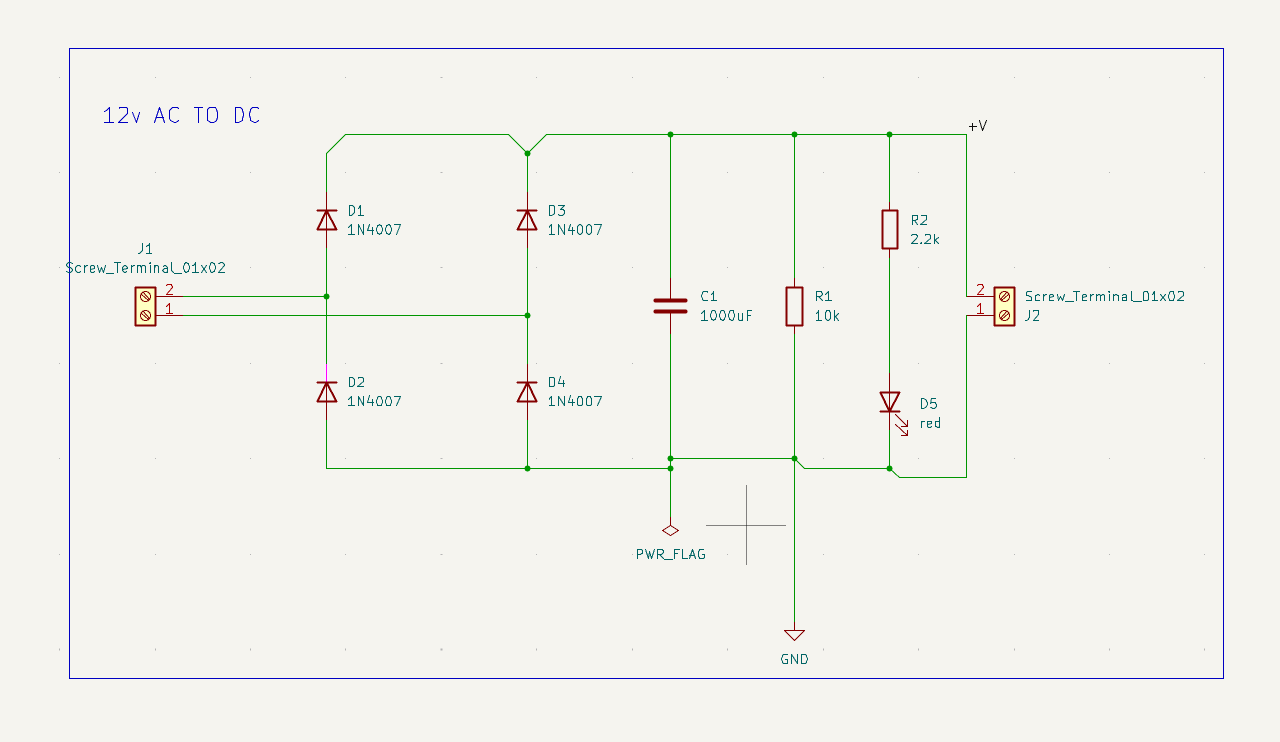

Ac to dc, from the project README
From the project README

Ac to dc bill of materials (BOM)

10 components, 6 distinct parts.

QtyPartRefs
2
Screw_Terminal_01x02
J1, J2
4
1N4007
D1, D2, D3, D4
1
red
D5
1
1000uF
C1
1
10k
R1
1
2.2k
R2

Ac to dc design files

The KiCad project lives in the baleshwarece-jpg/PCB_PROJECTS repository on GitHub; these links point at the commit this page was built from.

Ac to dc: common questions

How big is the Ac to dc PCB?

The Ac to dc measures 48 × 33.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Ac to dc?

10 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Ac to dc design files?

From the baleshwarece-jpg/PCB_PROJECTS repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Ac to dc design in my own project?

The repository has no license, so all rights stay with baleshwarece-jpg. Use it as a reference, and ask the author before reusing the design.
