OSMP PCB layout, top view — open source PIC board by bamboo-dynamics
Simulate this board

About the OSMP PCB

OSMP is an open source PIC PCB design by bamboo-dynamics, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 42 × 42 mm, with 31 components from 13 distinct parts.

Its main chip is the PIC16F18325-XJQ, from the PIC family. Other key parts include the E0USDRV5011ADDB00, E0USLM1117500M300 and E0USAZRS308000000. By type, the board carries 9 capacitors, 8 resistors, 6 ICs and 5 diodes.

From the project

Open Smart Motor Platform

OSMP (Open Smart Motor Platform) is an open-source hardware and firmware ecosystem specifically optimized for Warehouse Conveyor Systems and automated material handling.

The platform provides a high-precision Hall-sensor interface and integrated memory storage, designed to be embedded within brushless motors used in conveyor rollers, sorters, and AGV/AMR peripheral modules.

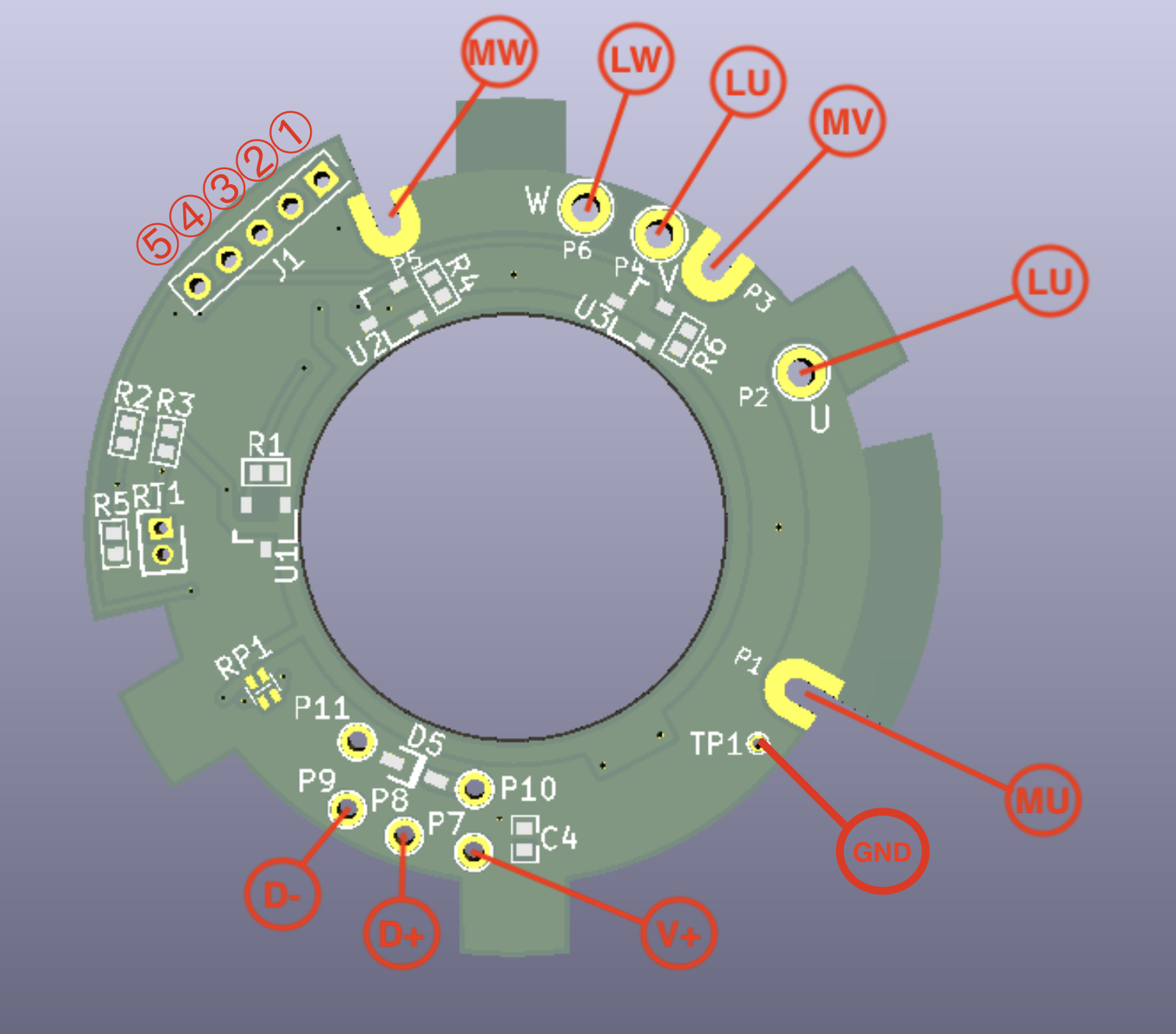

OSMP, from the project README
From the project README

Main components on the OSMP

E0USDRV5011ADDB00E0USLM1117500M300PIC16F18325-XJQE0USAZRS308000000

OSMP bill of materials (BOM)

31 components, 13 distinct parts — part numbers from the project's BOM.

QtyPartRefs
3
E0USDRV5011ADDB00
DRV5011
U1, U2, U3
1
E0USLM1117500M300
LM1117-5.0M3
U4
1
PIC16F18325-XJQ
PIC16F18325-xJQ
U5
1
E0USAZRS308000000
AZRS3080
U6
1
E0RS0402F010K0200
10kΩ-1/16W
RP1
1
E0RS0402J010R0200
10Ω-1/16W
RP2
1
EVRSMSAT103K30T00
10kΩ-3435K
RT1
4
E0DSSCS160V0C0000
60V-1A
D1, D2, D3, D5
1
E0DSMM3Z12V0C0000
15Vz-1W
D4
7
E0CS0402K01041F00
100nF/50V
C1, C2, C4, C6, C7, C8, C9
2
E0CS0805K02251E00
2.2uF/50V
C3, C5
7
E0RS0402F010K0100
10kΩ-1/16W
R1, R2, R3, R4, R5, R6, R7
1
E0RS0402F100R0100
100Ω-1/16W
R8

OSMP design files

The KiCad project lives in the bamboo-dynamics/OSMP repository on GitHub; these links point at the commit this page was built from.

OSMP: common questions

What microcontroller does the OSMP use?

The OSMP is built around the PIC16F18325-XJQ, from the PIC family.

How big is the OSMP PCB?

The OSMP measures 42 × 42 mm, has 2 copper layers and is 1 mm thick.

How many components are on the OSMP?

31 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the OSMP design files?

From the bamboo-dynamics/OSMP repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the OSMP design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which bamboo-dynamics chose for the repository.

Can I test firmware for the OSMP without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
