Pokey-Boardy

bansal-akshat·Pokey-Boardy·Pokeyboardy/PCB/Pokeyboardy.kicad_pcb

Pokey-Boardy PCB layout, top view — open source board by bansal-akshat

About the Pokey-Boardy PCB

Pokey-Boardy is an open source PCB design by bansal-akshat, published on GitHub under the MIT license. It is a 2-layer board measuring 86.3 × 54.8 mm, with 17 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO. By type, the board carries 9 diodes, 6 switches, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

Compact 5-key macropad with rotary encoder, RGB, and OLED - Hack Club Hackpad

Pokeyboardy is a compact 5-key macropad. It features five mechanical switches, a rotary encoder, RGB lighting, and support for a small OLED display, all powered by a Seeed Studio XIAO RP2040. The PCB, case, and knob were designed from scratch.

- 5x Cherry MX switches - 1x EC11 rotary encoder - 3x SK6812 mini RGB LEDs - Seeed XIAO controller - OLED header

Also needed: 5x DSA keycaps, 1x 0.91" 128x32 OLED, 6x M3 heatset inserts + bolts, 3D printed case + 2 acrylic plates.

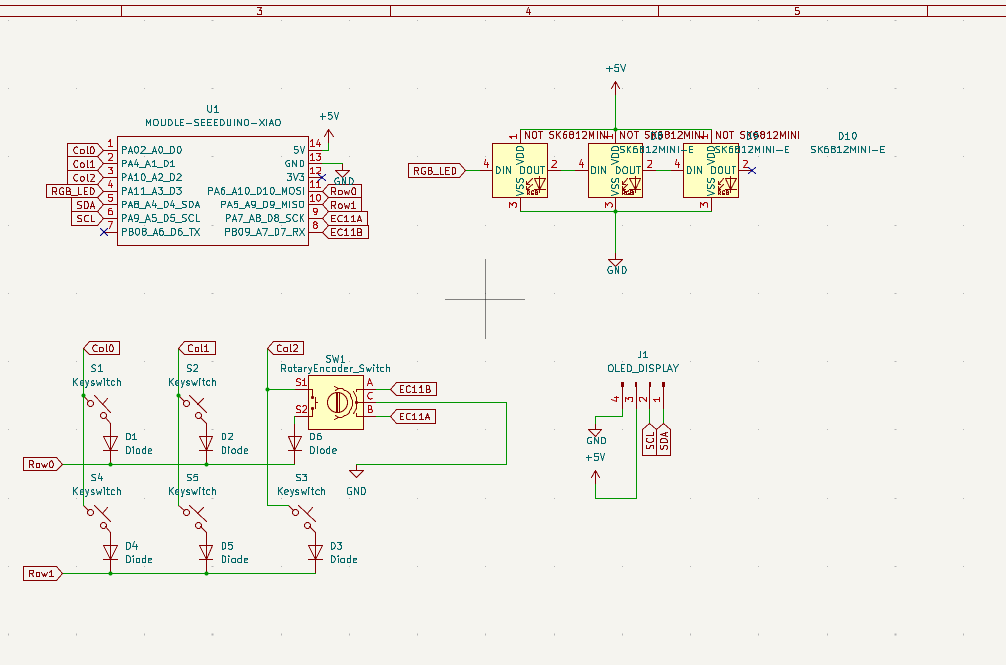

Pokey-Boardy, from the project README
From the project README

Main components on the Pokey-Boardy

MOUDLE-SEEEDUINO-XIAO

Pokey-Boardy bill of materials (BOM)

17 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
OLED_DISPLAY
J1
5
Keyswitch
S1, S2, S3, S4, S5
1
RotaryEncoder_Switch
SW1
6
Diode
D1, D2, D3, D4, D5, D6
3
SK6812MINI-E
D8, D9, D10

Pokey-Boardy design files

The KiCad project lives in the bansal-akshat/Pokey-Boardy repository on GitHub; these links point at the commit this page was built from.

Pokey-Boardy: common questions

How big is the Pokey-Boardy PCB?

The Pokey-Boardy measures 86.3 × 54.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pokey-Boardy?

17 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Pokey-Boardy design files?

From the bansal-akshat/Pokey-Boardy repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Pokey-Boardy design in my own project?

Yes, under the terms of its MIT license, which bansal-akshat chose for the repository.
