Ruler V2
About the Ruler V2 PCB
Ruler V2 is an open source PCB design by ben5049, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 155 × 30 mm, with 17 components from 7 distinct parts.
Other key parts include the NE555D and 4017. By type, the board carries 10 diodes, 3 resistors, 2 ICs, 1 connector and 1 capacitor.
From the project

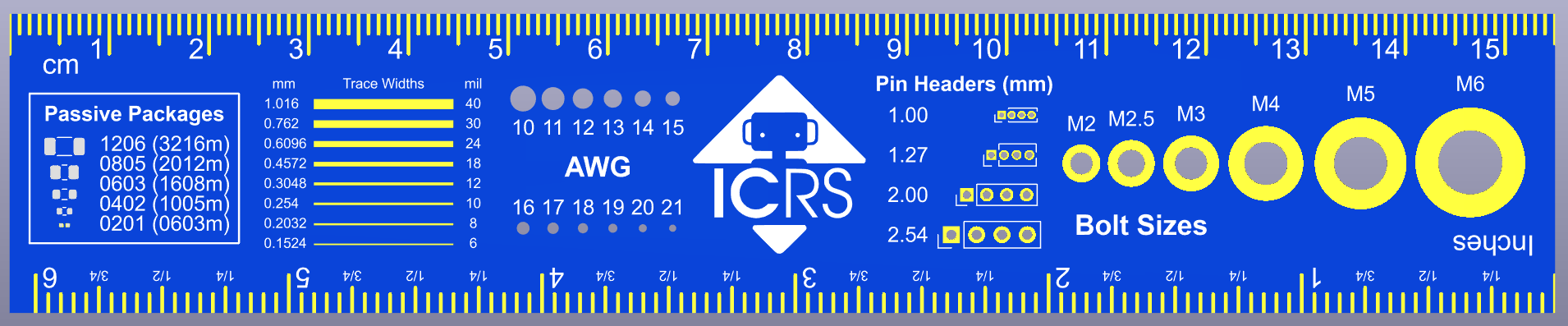

ICRS PCB ruler
A 15cm PCB ruler designed for Imperial College Robotics Society. It can be easily adapted/rebranded using the KiCad project in this repository.
The recommended specifications for ordering this PCB are as follows: 2 Layers 1.6mm thick FR4 Blue soldermask White silkscreen ENIG surface finish <= 1 oz Copper weight Tented vias (doesn't matter as there are no vias) +- 0.2mm Board outline tolerance * Remove order number
Main components on the Ruler V2
Ruler V2 bill of materials (BOM)
17 components, 7 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NE555D | SOIC-8_3.9x4.9mm_P1.27mm | U101 |
| 1 | 4017 | SOP-16_3.9x9.9mm_P1.27mm | U102 |
| 1 | USB_C_Receptacle_PowerOnly_6P | USB_C_Receptacle_GCT_USB4135-GF-A_6P_TopMnt_Horizontal | J102 |
| 10 | LED_Small | LED_0402_1005Metric | D101, D102, D103, D104, D105, D106, D107, D108 +2 |
| 1 | 1u | C_0402_1005Metric | C101 |
| 2 | 1k | R_0402_1005Metric | R101, R102 |
| 1 | 47k | R_0402_1005Metric | R103 |
Ruler V2 design files
The KiCad project lives in the ben5049/ICRS-PCB-Ruler repository on GitHub; these links point at the commit this page was built from.
Ruler V2: common questions
How big is the Ruler V2 PCB?
The Ruler V2 measures 155 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Ruler V2?
17 components, from 7 distinct parts. The full bill of materials is listed on this page.
Where can I download the Ruler V2 design files?
From the ben5049/ICRS-PCB-Ruler repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Ruler V2 design in my own project?
Yes, under the terms of its Apache-2.0 license, which ben5049 chose for the repository.
