About the MiniOSC v2.0 - Main PCB
MiniOSC v2.0 - Main is an open source PCB design by benjiaomodular, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 30 × 109.5 mm, with 68 components from 48 distinct parts.
Other key parts include the TL074 and 40106. By type, the board carries 24 resistors, 10 capacitors, 8 connectors, 6 test points, 4 diodes and 3 ICs.
From the project

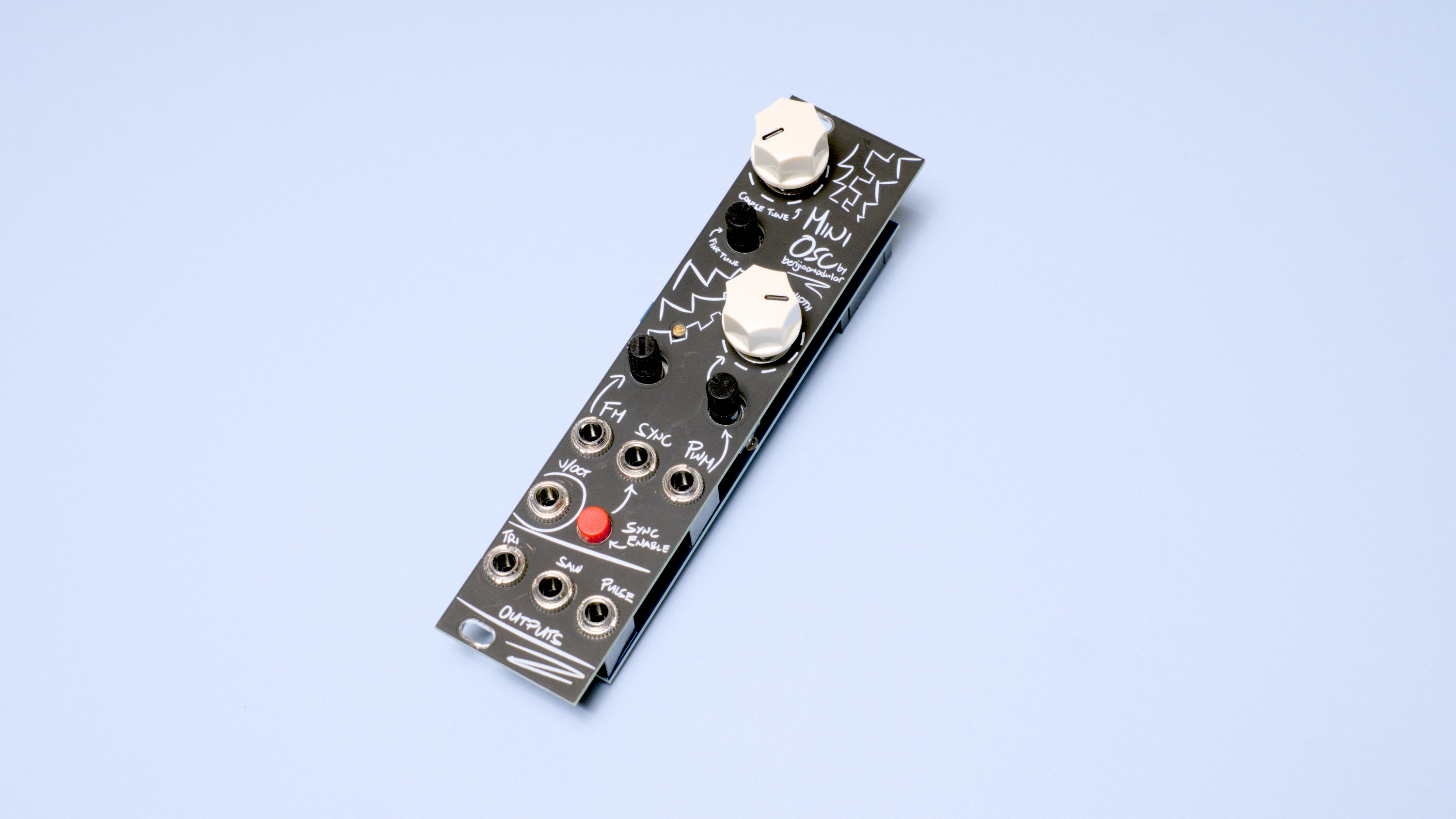

A schmitt-trigger inverter based sawtooth and pulse oscillator module
You can also download my files from https://github.com/benjiaomodular/MiniOSC/blob/main/fabrication/
This work is licensed under a [Creative Commons Attribution-ShareAlike 4.0 International License][cc-by-sa].
[cc-by-sa]: http://creativecommons.org/licenses/by-sa/4.0/ [cc-by-sa-image]: https://licensebuttons.net/l/by-sa/4.0/88x31.png [cc-by-sa-shield]: https://img.shields.io/badge/License-CC%20BY--SA%204.0-lightgrey.svg
Main components on the MiniOSC v2.0 - Main
MiniOSC v2.0 - Main bill of materials (BOM)
68 components, 48 distinct parts — part numbers from the project's BOM.
