DSKY segment

benkrasnow·DSKY_EL_replica·PCB - KiCad/DSKY_segment/DSKY_segment.kicad_pcb

DSKY segment PCB layout, top view — open source board by benkrasnow

About the DSKY segment PCB

DSKY segment is an open source PCB design by benkrasnow, published on GitHub under the MIT license. It is a 2-layer board measuring 62.4 × 105.7 mm, with 20 components from 8 distinct parts.

By type, the board carries 16 resistors, 3 connectors and 1 diode.

It belongs with the displays & leds designs in this gallery.

From the project

Schematic, PCB layout, mechanical CAD, and firmware to create a replica of the DSKY with electroluminescent display

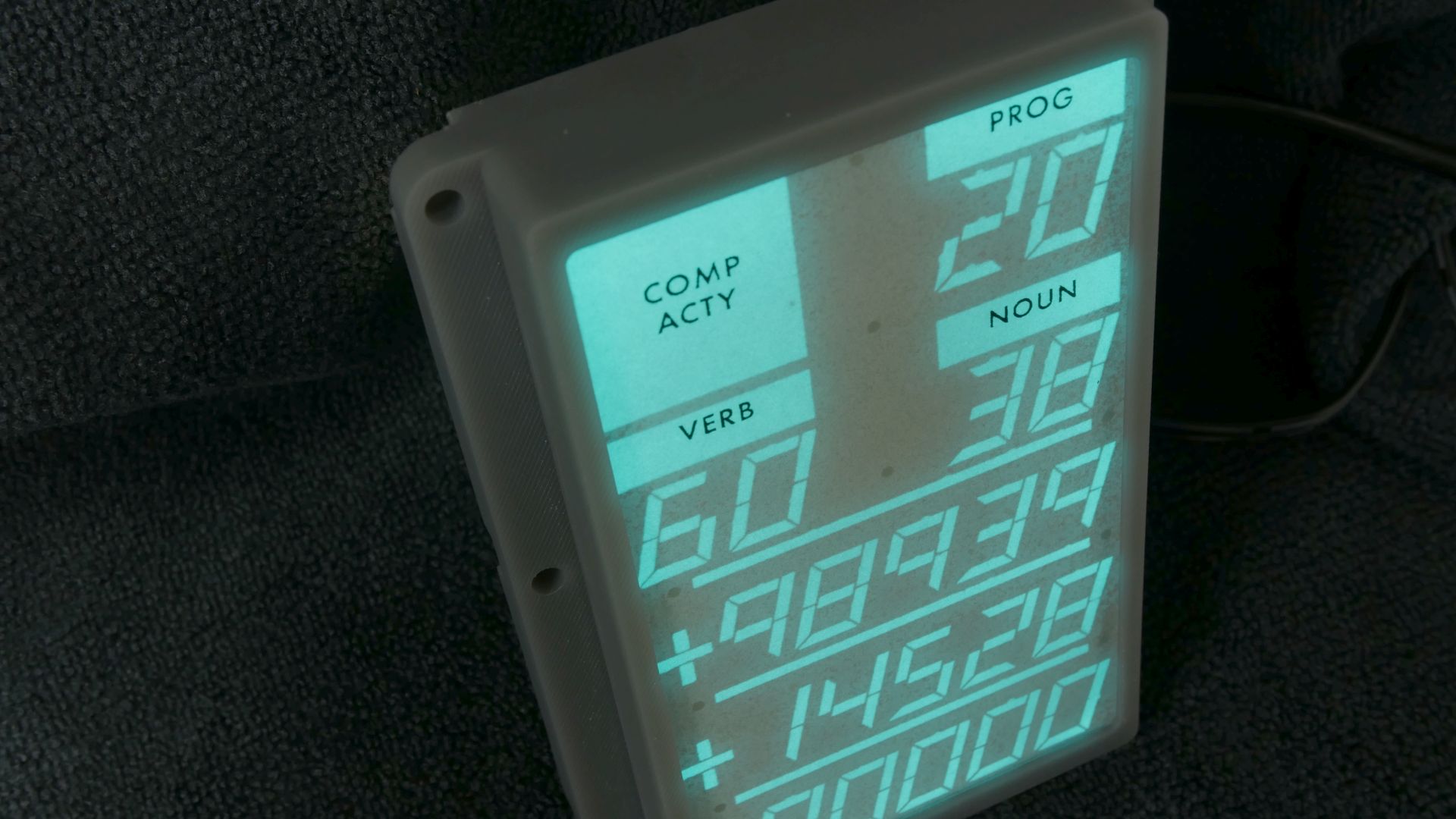

DSKY segment, from the project README
From the project README

DSKY segment bill of materials (BOM)

20 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
H10806
Conn_15X4
J1, J2
1
PJ-006B-SMT
Conn_15X4
J3
1
B0540W-7-F
MMBD5004S
D1
1
RC0603FR-071K5L
47K
R1
1
RC0603FR-0710ML
47K
R2
1
RC0603FR-07100KL
47K
R3
1
RC0603FR-0710KL
47K
R4
12
47K
R5, R6, R7, R8, R9, R10, R11, R12 +4

DSKY segment design files

The KiCad project lives in the benkrasnow/DSKY_EL_replica repository on GitHub; these links point at the commit this page was built from.

DSKY segment: common questions

How big is the DSKY segment PCB?

The DSKY segment measures 62.4 × 105.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DSKY segment?

20 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the DSKY segment design files?

From the benkrasnow/DSKY_EL_replica repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the DSKY segment design in my own project?

Yes, under the terms of its MIT license, which benkrasnow chose for the repository.
