LED-cube programmable

Binary-Kitchen·LED-cube-programmable

LED-cube programmable PCB layout, top view — open source AVR/Arduino board by Binary-Kitchen

About the LED-cube programmable PCB

LED-cube programmable is an open source AVR/Arduino PCB design by Binary-Kitchen, published on GitHub. It is a 2-layer board measuring 50 × 50 mm, with 31 components from 7 distinct parts.

Its main chip is the Arduino_Nano_v3.x, from the AVR/Arduino family. Other key parts include the 74HC595 and LED_Cube_5mm_4x4x4. By type, the board carries 20 resistors, 4 transistors, 3 ICs, 2 switches, 1 module and 1 capacitor.

From the project

4x4x4 single color, programmable LED cube

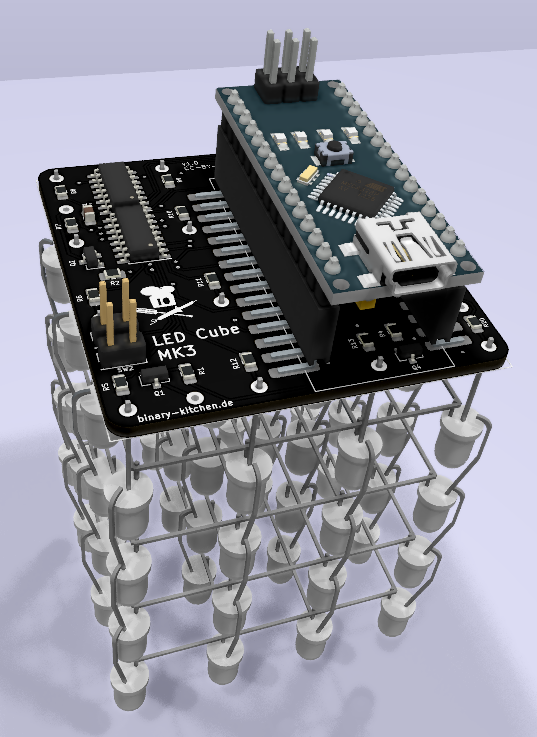

LED-cube programmable, from the project README
From the project README

Main components on the LED-cube programmable

74HC595LED_Cube_5mm_4x4x4Arduino_Nano_v3.x

LED-cube programmable bill of materials (BOM)

31 components, 7 distinct parts.

QtyPartRefs
2
74HC595
U1, U2
1
LED_Cube_5mm_4x4x4
U3
1
Arduino_Nano_v3.x
A1
4
2N7002
Q1, Q2, Q3, Q4
2
SW_Push
SW1, SW2
1
C
C1
20
R
R1, R2, R3, R4, R5, R6, R7, R8 +12

LED-cube programmable design files

The KiCad project lives in the Binary-Kitchen/LED-cube-programmable repository on GitHub; these links point at the commit this page was built from.

LED-cube programmable: common questions

What microcontroller does the LED-cube programmable use?

The LED-cube programmable is built around the Arduino_Nano_v3.x, from the AVR/Arduino family.

How big is the LED-cube programmable PCB?

The LED-cube programmable measures 50 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the LED-cube programmable?

31 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the LED-cube programmable design files?

From the Binary-Kitchen/LED-cube-programmable repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the LED-cube programmable design in my own project?

The repository has no license, so all rights stay with Binary-Kitchen. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the LED-cube programmable without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
