25pix PCB layout, top view — open source AVR/Arduino board by bnaucler

About the 25pix PCB

25pix is an open source AVR/Arduino PCB design by bnaucler, published on GitHub under the MIT license. It is a 2-layer board measuring 60 × 96 mm, with 60 components from 17 distinct parts.

Its main chip is the C132230, from the AVR/Arduino family. Other key parts include the C6187 and C6961. By type, the board carries 25 LEDs, 15 capacitors, 6 switches, 5 resistors, 3 ICs and 1 crystal.

From the project

25 pixel game console

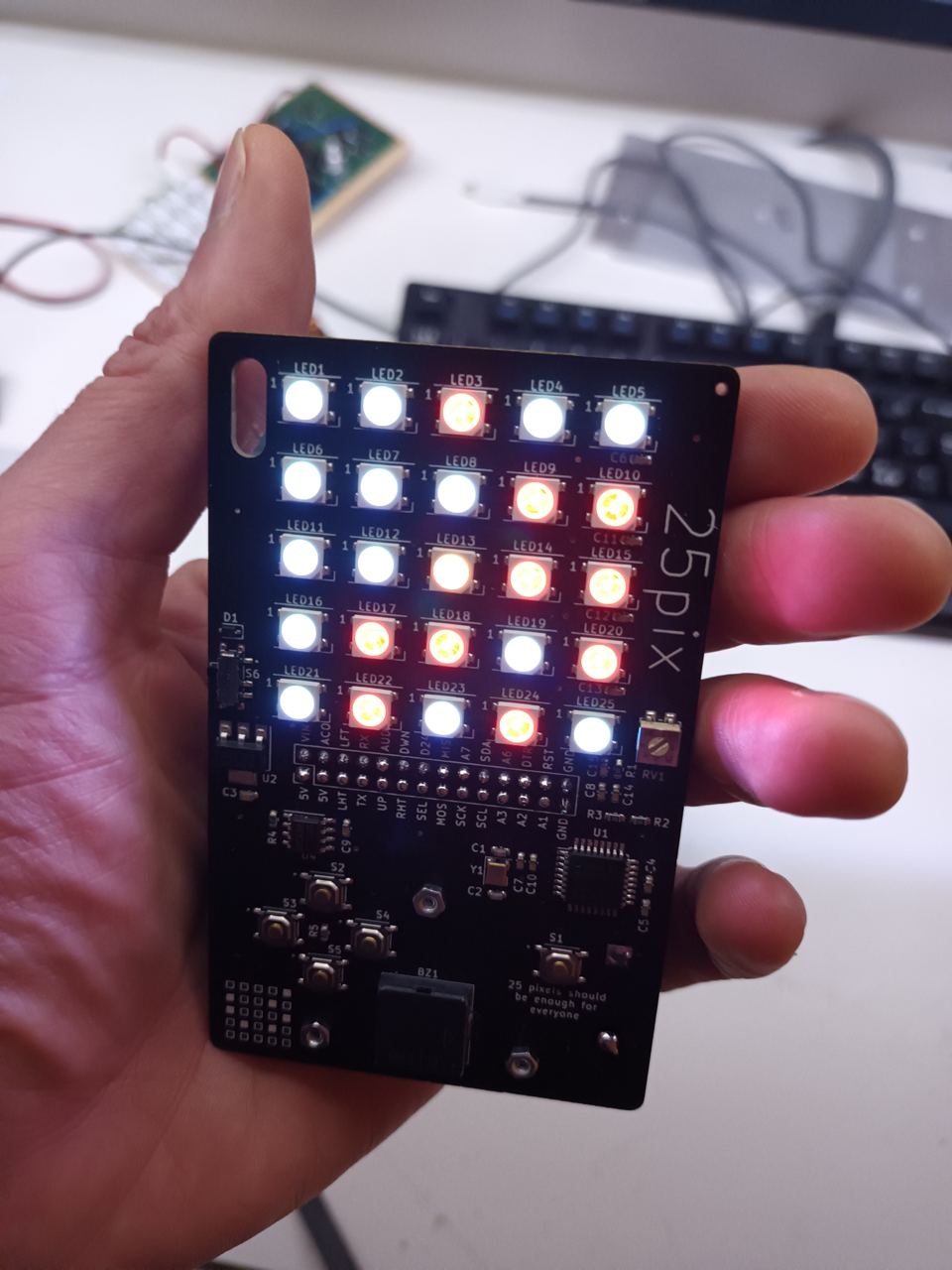

25pix, from the project README
From the project README

Main components on the 25pix

C132230C6187C6961

25pix bill of materials (BOM)

60 components, 17 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C132230
ATmega328PB-A
U1
1
C6187
AMS1117-5.0
U2
1
C6961
TL072
U4
1
C13738
X322516MLB4SI
Y1
1
XCON
J1
1
9V
BT1
1
C113159
PKLCS1212E
BZ1
1
C780220
10k
RV1
5
C318884
TS-1187A-B-A-B
S1, S2, S3, S4, S5
1
C109335
MLL1200S
S6
25
C2843785
WS2812B
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +17
1
C191023
1N5819WS
D1
2
C1653
22p
C1, C2
1
C96446
10u
C3
12
C14663
100n
C4, C5, C6, C7, C8, C9, C10, C11 +4
3
C25804
10k
R1, R2, R3
2
C22962
220
R4, R5

25pix design files

The KiCad project lives in the bnaucler/25pix repository on GitHub; these links point at the commit this page was built from.

25pix: common questions

What microcontroller does the 25pix use?

The 25pix is built around the C132230, from the AVR/Arduino family.

How big is the 25pix PCB?

The 25pix measures 60 × 96 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 25pix?

60 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the 25pix design files?

From the bnaucler/25pix repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the 25pix design in my own project?

Yes, under the terms of its MIT license, which bnaucler chose for the repository.

Can I test firmware for the 25pix without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
