A1200-HxC

bodgit·A1200-HxC·KiCad/A1200.kicad_pcb

A1200-HxC PCB layout, top view — open source board by bodgit

About the A1200-HxC PCB

A1200-HxC is an open source PCB design by bodgit, published on GitHub. It is a 2-layer board measuring 64.3 × 14.5 mm, with 6 components from 3 distinct parts.

By type, the board carries 3 connectors and 3 switches.

It belongs with the retro computing designs in this gallery.

From the project

Simple circuit to present the internal HxC buttons outside the A1200 case

This is a simple button extender for the popular HxC floppy emulator.

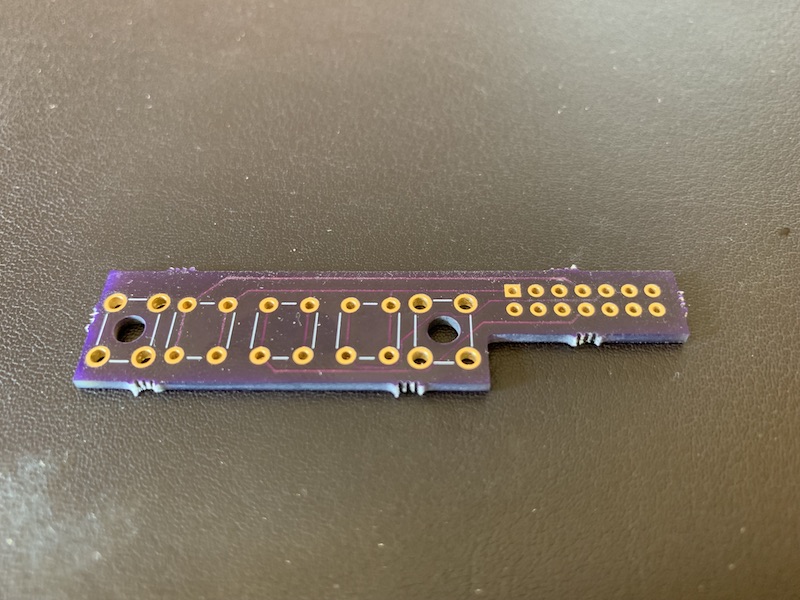

A1200-HxC, from the project README
From the project README

A1200-HxC bill of materials (BOM)

6 components, 3 distinct parts.

QtyPartRefs
1
Conn_02x07_Odd_Even
J1
2
Screw_Terminal_01x01
J2, J3
3
SW_SPST
SW1, SW2, SW3

A1200-HxC design files

The KiCad project lives in the bodgit/A1200-HxC repository on GitHub; these links point at the commit this page was built from.

A1200-HxC: common questions

How big is the A1200-HxC PCB?

The A1200-HxC measures 64.3 × 14.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the A1200-HxC?

6 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the A1200-HxC design files?

From the bodgit/A1200-HxC repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the A1200-HxC design in my own project?

The repository has no license, so all rights stay with bodgit. Use it as a reference, and ask the author before reusing the design.
